MoxaCAN Programming Guide

Introduction

CAN is a broadcast serial bus standard for connecting electronic control units (ECUs).

Each node is able to send and receive messages, but not simultaneously: a message (consisting

primarily of an ID—usually chosen to identify the message-type/sender—and up to eight message

bytes) is transmitted serially onto the bus, one bit after another. This signal-pattern codes the

message (in NRZ) and is sensed by all nodes.

Moxa embedded computers provide the CAN bus interface for industrial CAN communication.

Users can use the file control interface to read, write, or control the CAN interface as a file for

easy CAN programming.

Programming Guide

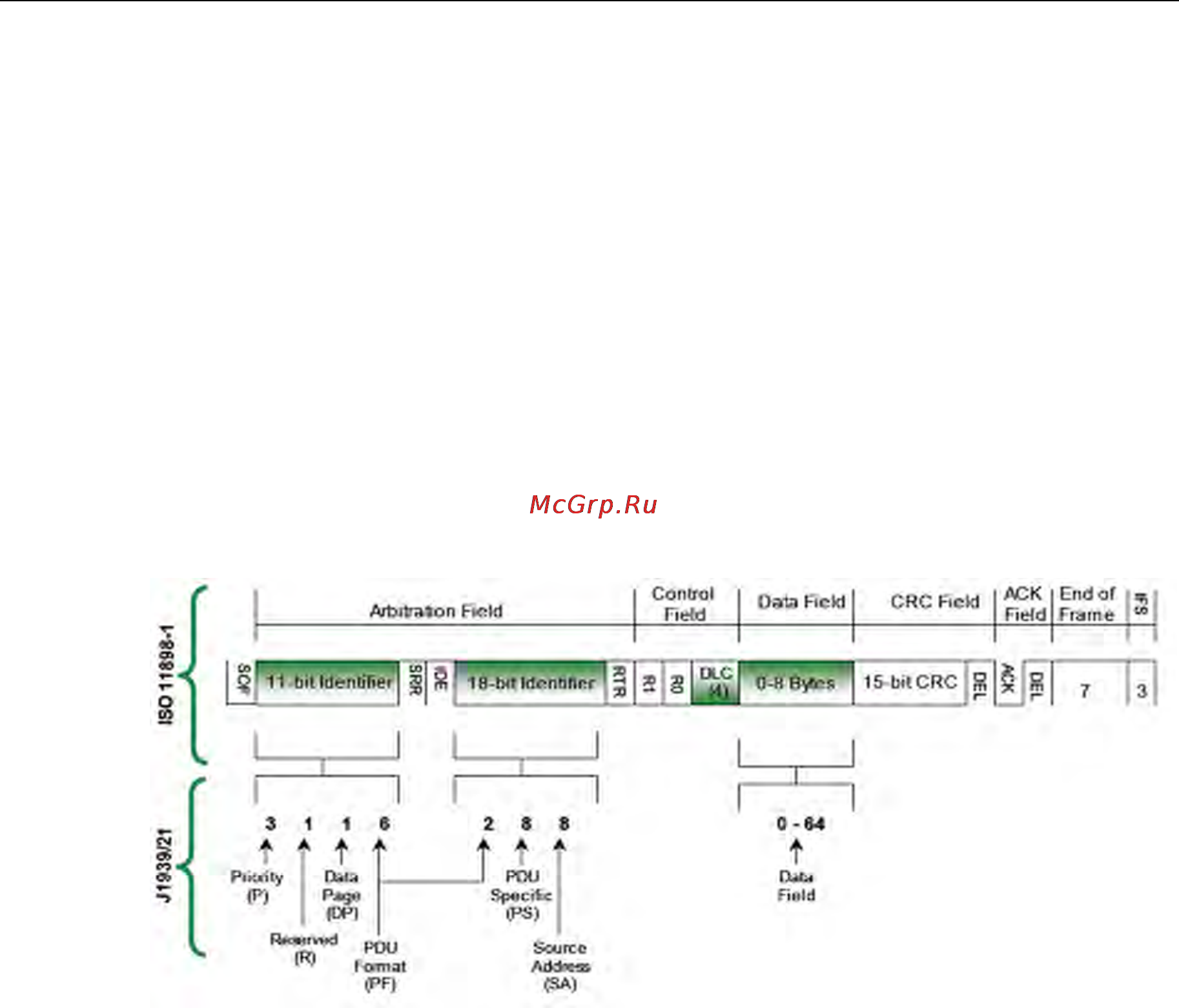

The CAN data format looks like this:

Define the structure for CAN programming as follows:

moxacan_ioctl.h

#ifndef _MOXACAN_IOCTL_H

#define _MOXACAN_IOCTL_H

#ifndef BIT

#define BIT(x) (1<<(x))

#endif // BIT

#define MAX_CAN_DATA_LENGTH 8

typedef union __attribute__ ((packed)) can_data_union {

unsigned char array[MAX_CAN_DATA_LENGTH];

struct byte_struct {

unsigned char byte1;

unsigned char byte2;

unsigned char byte3;

unsigned char byte4;

unsigned char byte5;

6-5
