IA260-261-262 EM-2260 LX User’s Manual Getting Started

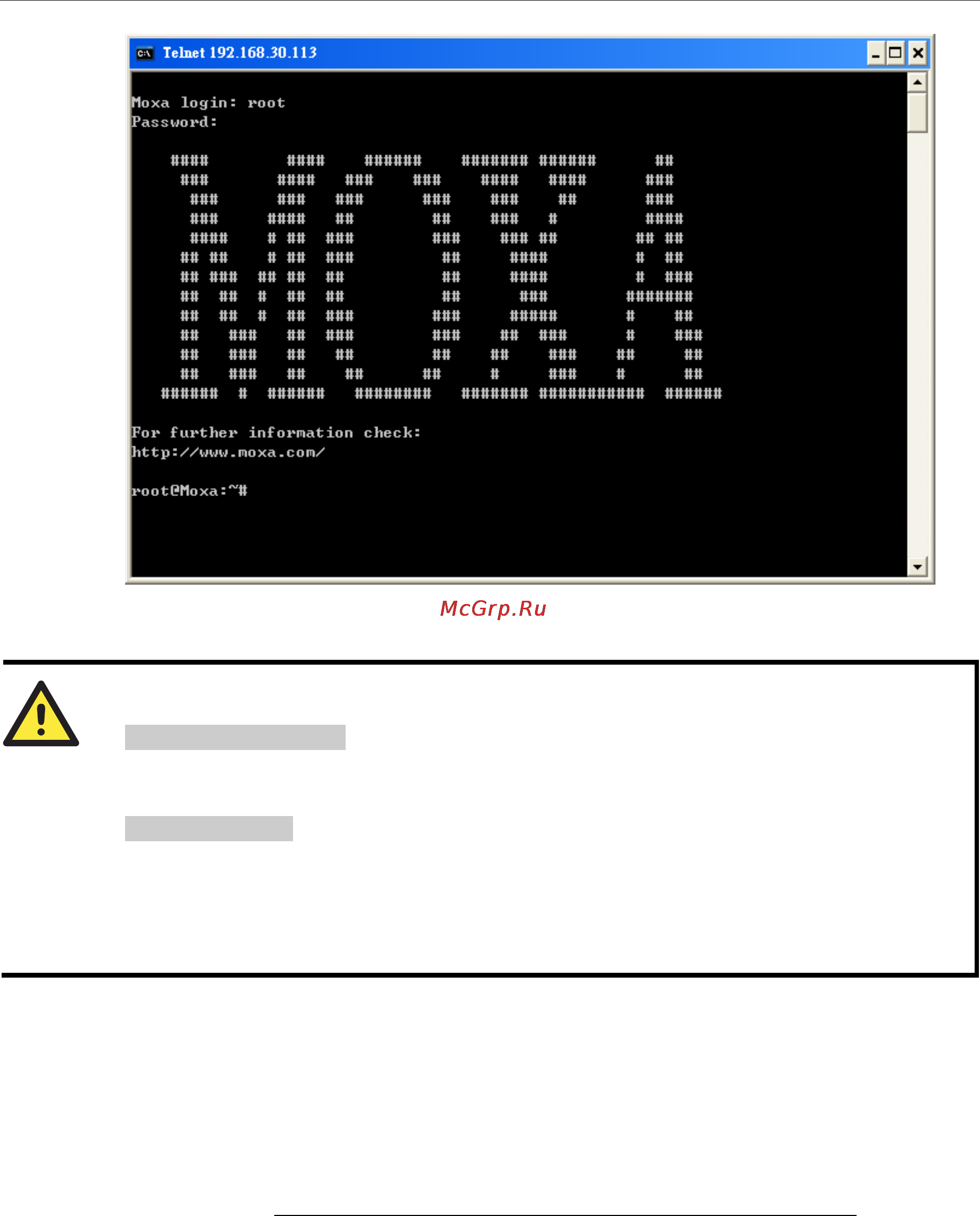

You can proceed with configuring the network settings of the target computer when you reach the
bash command shell. Configuration instructions are given in the next section.
ATTENTION
Debug Port Reminder
Remember to choose VT100 as the terminal type. Use the cable CBL-4PINDB9F-100, which
comes with the IA260/IA261/IA262/EM-2260, to connect to the serial console port.
Telnet Reminder
When connecting to the IA260/IA261/IA262/EM-2260 over a LAN, you must configure your
PC’s Ethernet IP address to be on the same subnet as the IA260/IA261/IA262/EM-2260 that you
wish to contact. If you do not get connected on the first try, re-check the IP settings, and then
unplug and re-plug the IA260/IA261/IA262/EM-2260’s power cord.
SSH Console
The IA260/IA261/IA262/EM-2260 supports an SSH Console to provide users with better security
options.
Windows Users
Click on the link http://www.chiark.greenend.org.uk/~sgtatham/putty/download.html to download
PuTTY (free software) to set up an SSH console for the IA260/IA261/IA262/EM-2260 in a
Windows environment. The following figure shows a simple example of the configuration that is
required.
2-4
