IA260-261-262 EM-2260 LX User’s Manual Managing Communications

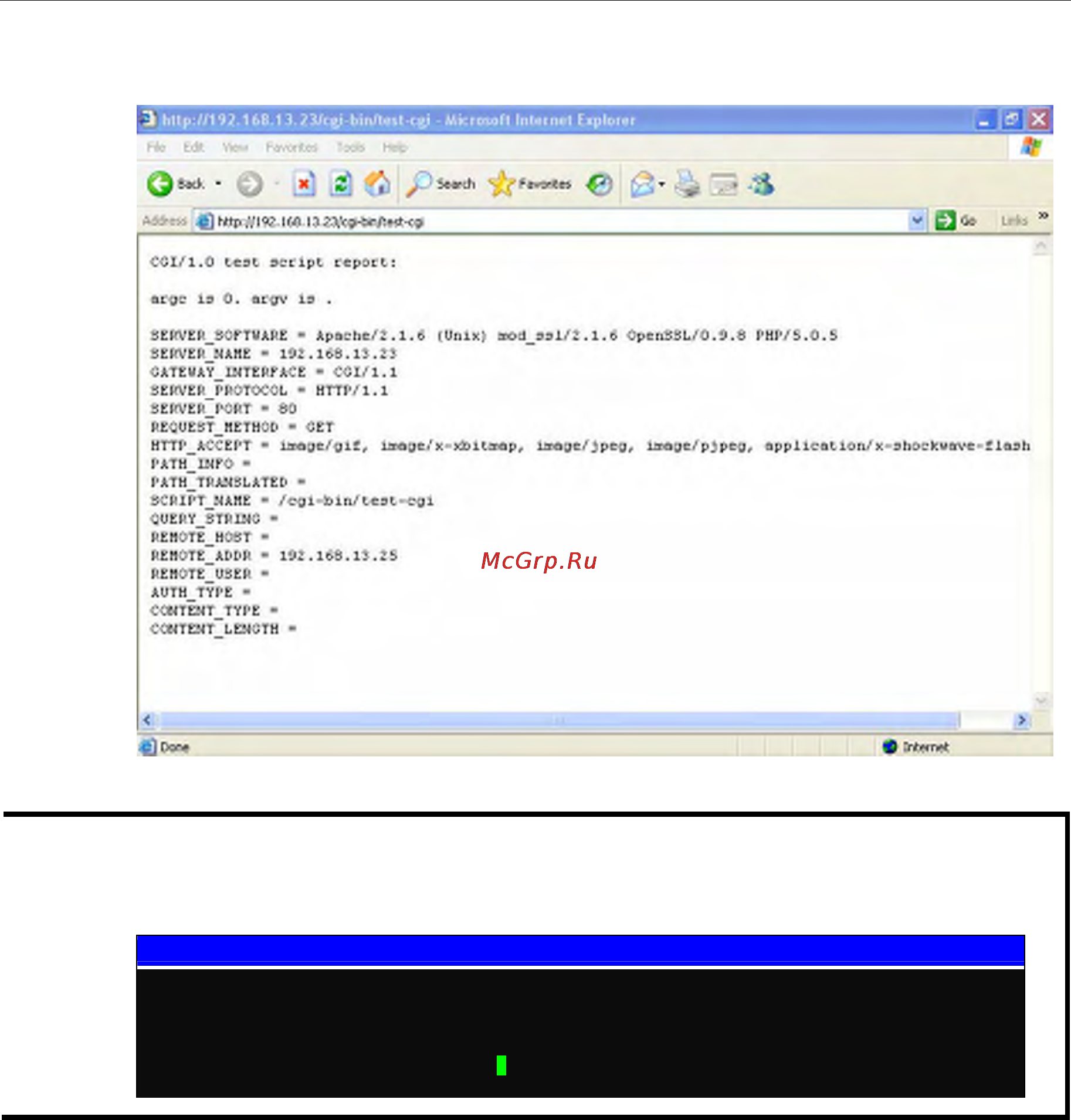

To open the default CGI page, type http://192.168.13.23/cgi-bin/test-cgi in your browser’s
address box.
NOTE The CGI function is enabled by default. If you want to disable the function, modify the file
/etc/apache/conf/httpd.conf. When you develop your own CGI application, make sure your CGI
file is executable.
192.168.3.127 – PuTTY
root@Moxa:/home/httpd/cgi-bin# ls –al
drwxr—xr-x 2 root root 0 Aug 24 1999 .
drwxr—xr-x 5 root root 0 Nov 5 16:16 ..
-rwxr—xr-x 1 root root 757 Aug 24 1999 test-cgi
root@Moxa:/home/httpd/cgi-bin#
4-4
