V2616A W7E Series Moxa Diagnostic Package
5-4
Using Moxa Diagnostic Utility
In this section we describe how to use the Moxa Diagnostic Utility on the V2616A computer.

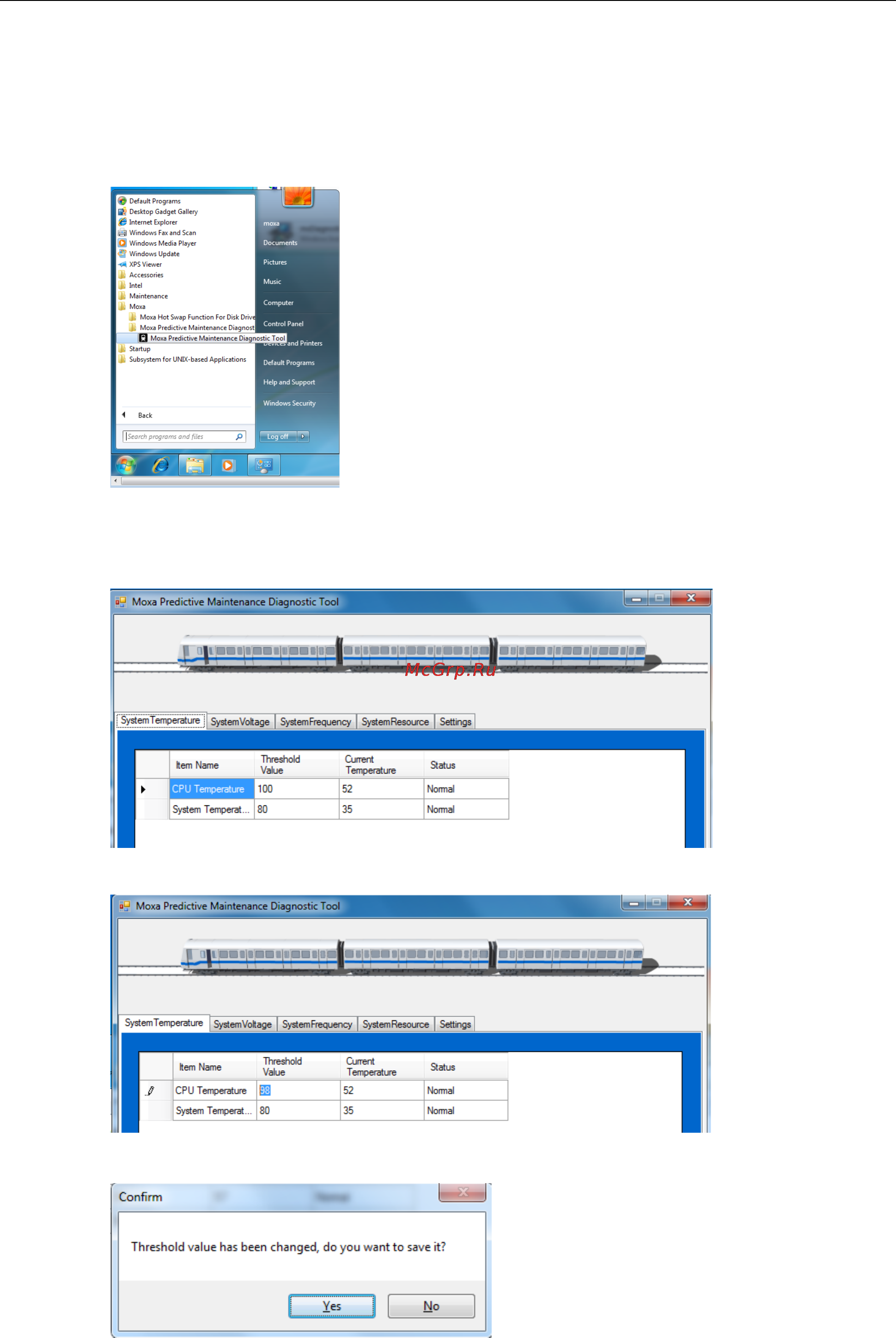

1. Click Moxa Predictive Maintenance Diagnostic Tool under <All Programs> \Moxa\Moxa Predictive
Maintenance Diagnostic Tool\.
2. The first tab shows the current value and threshold value of the CPU temperature and system temperature.
When the current temperature goes over the threshold value, the status will change to a warning and the
change in status will be logged.
3. To change the threshold value, double-click the value in the Threshold Value field.
4. Click Yes to save the setting
