Moxa V2616A-C7-CT-T-LX [46/100] V2616a w7e series moxa synmap package
![Moxa V2616A-C8-CT-LX [46/100] V2616a w7e series moxa synmap package](/views2/1200240/page46/bg2e.png)
V2616A W7E Series Moxa SynMap Package
7-8
Take the following steps to install the Moxa SynMap package.
1. Double click mxSynMap.msi, located in the following folder: <software DVD>\utility\mxsynmap\.

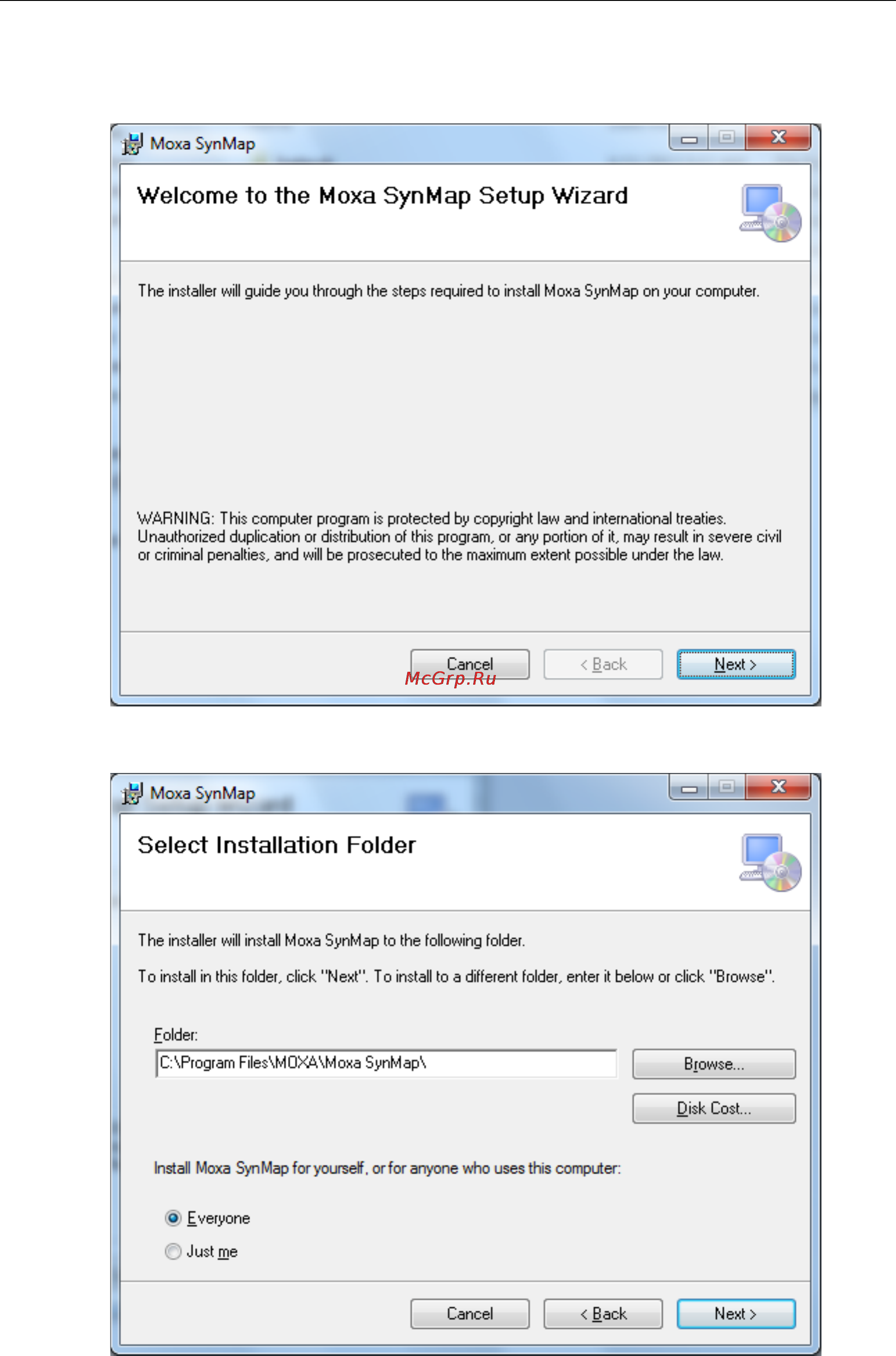

2. When the welcome screen appears, click Next to continue.
3. Select the folder in which you would like to install the package, or click Next to install the package in the
default folder.
