V2616A W7E Series System Recovery

9-4

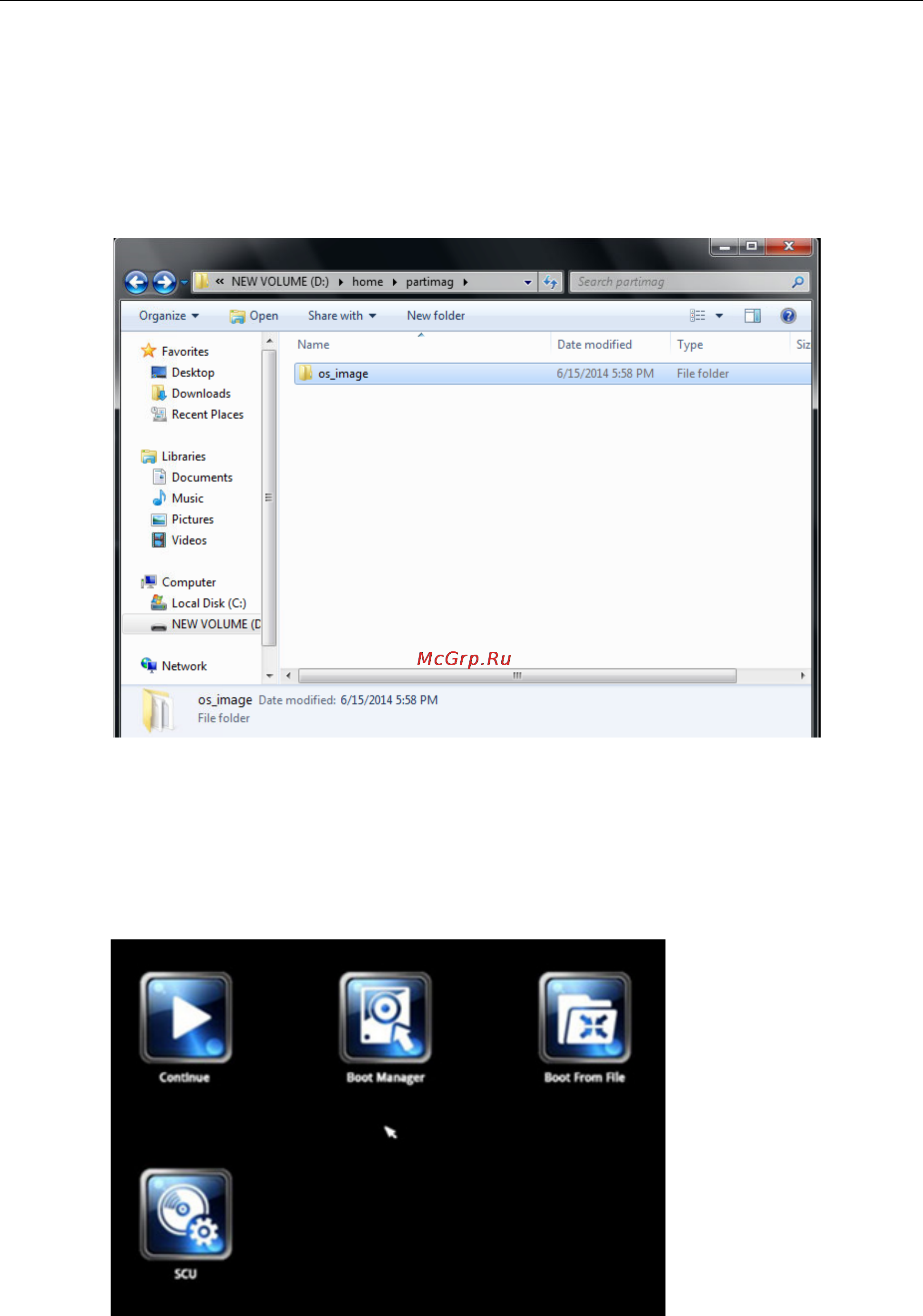

5. From the desktop, manually copy the directory containing the base OS from the software DVD over to the

USB drive. That is, copy

#:\<SoftwareDVD>\recovery\V2616A-W7E_Recovery\Clonezilla\os_image to the partition

image directory, F:\home\partimag\, on the USB drive.

However, if you would like to recover from your own system image, you first need to perform a system

image backup. Refer to the section below, Creating a Custom System Image, for details.

At this point, Step 1 has been completed, and you should proceed to the next section,

Step 2: Setting the

BIOS to Boot via USB.

Step 2: Setting the BIOS to Boot via USB

In this step, you will reset the BIOS so that the system boots directly from the USB. This must be done before

the rest of the system recovery environment can be configured.

1. Reboot the system, and, during the POST process, press F2 until you hear a long beep. Click SCU to enter

the BIOS setup menu.

2. Use the left/right arrow keys to navigate to the Boot menu, and then press Enter.
