V2616A W7E Series System Recovery
9-6

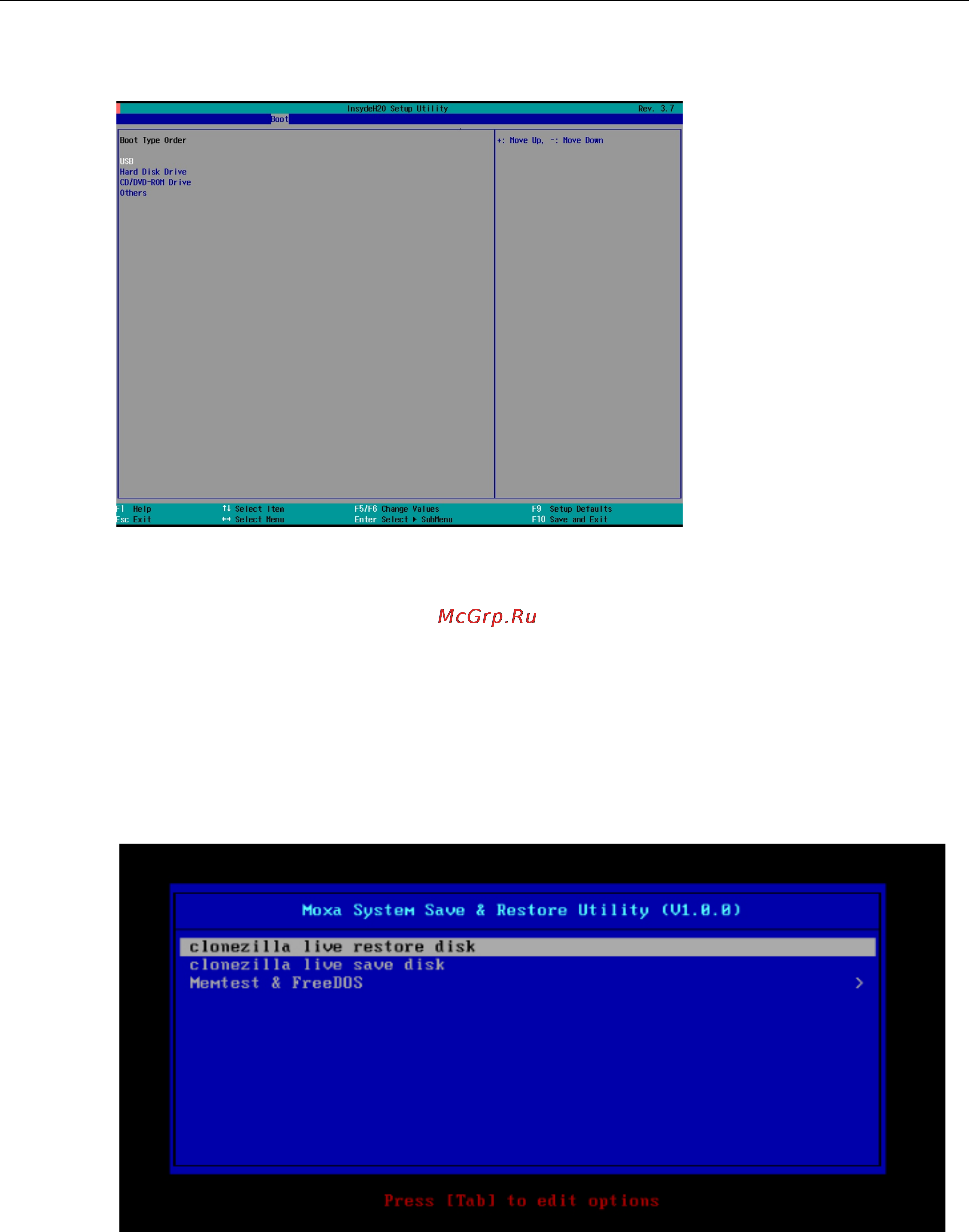

5. Use the up/down arrow keys to navigate to the USB link, and then use the plus/minus (+/-) keys to move
“USB” to the first boot priority position.
Step 3: How to Perform a System Recovery
In this step, we provide instructions on how to perform a system recovery. We include this as step 3 of the
installation so administrators can first perform a test run before deploying the system to the field.
To begin the system recovery, you will first need to have prepared the BIOS as described in the previous
section Step 2: Setting the BIOS to Boot via USB, just above. After preparing the BIOS, connect the USB
recovery drive to any of the V2616A’s USB ports and then reboot the computer. If you have successfully
prepared the USB and BIOS, the computer will boot into the Clonezilla boot loader, from the USB.
1. Select clonezilla live restore disk to boot into the system restoration environment.
