V2616A W7E Series System Recovery
9-14

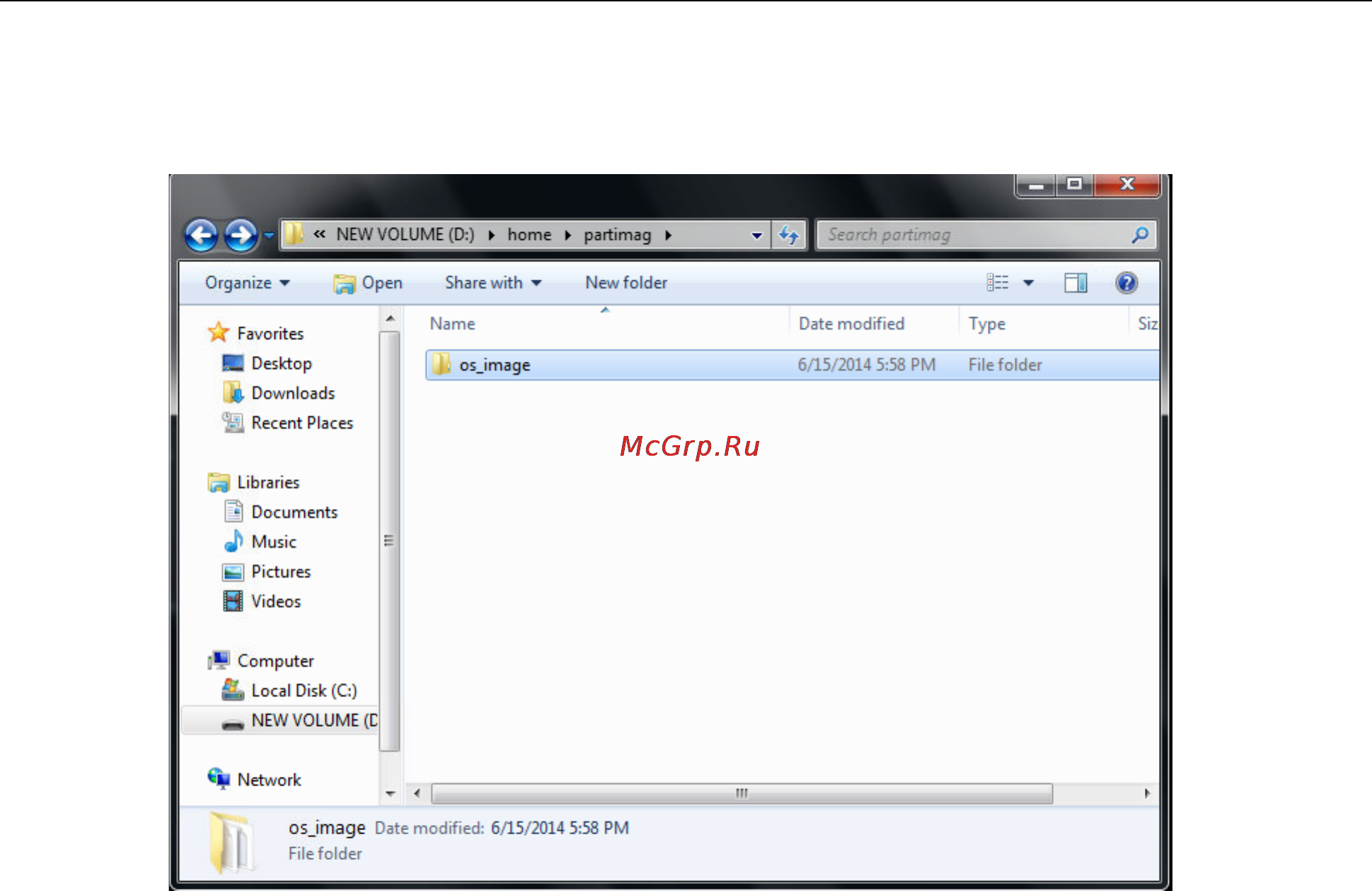

6. Power down the system and remove the USB drive to complete the process of configuring the recovery
environment. Now you have your own OS image under USB Folder\home\partimag\os_image. The
USB drive should be clearly labeled and stored in a safe place.
