V2616A W7E Series System Recovery
9-13

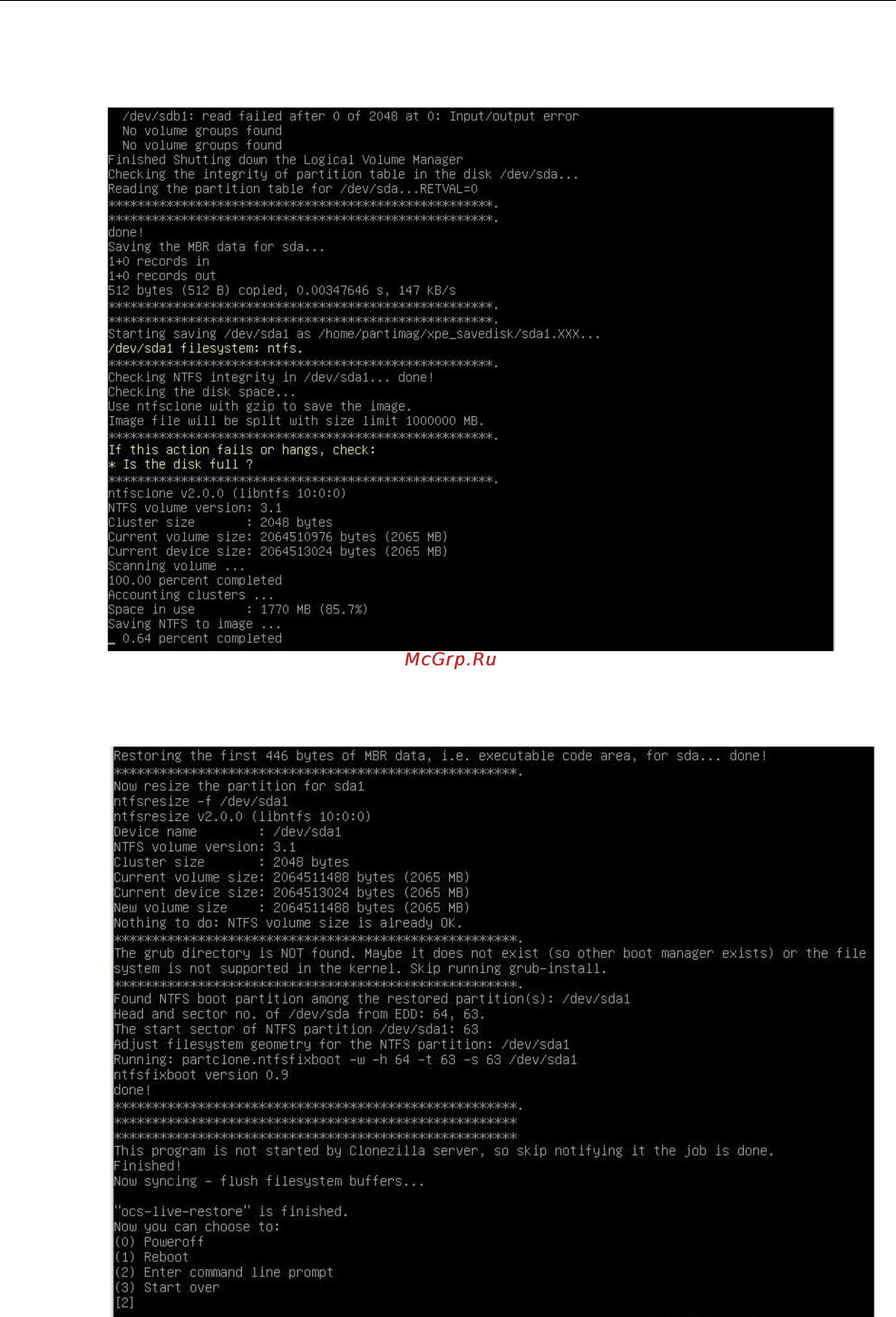

4. At this point, the recovery environment will copy the entire hard drive to your USB drive. This will likely take
several minutes, and could take up to half an hour. Do not remove the USB drive during this time; wait
patiently for the process to finish.
5. At this point, you can choose to power down the computer (press 0), reboot (press 1), enter a console
terminal (to access a console TTY, press 2), or re-initiate the entire procedure (press 3). Do not remove
the USB drive until you have rebooted or powered down the system.
