TC-6110 Series Hardware Hardware Installation
2-4

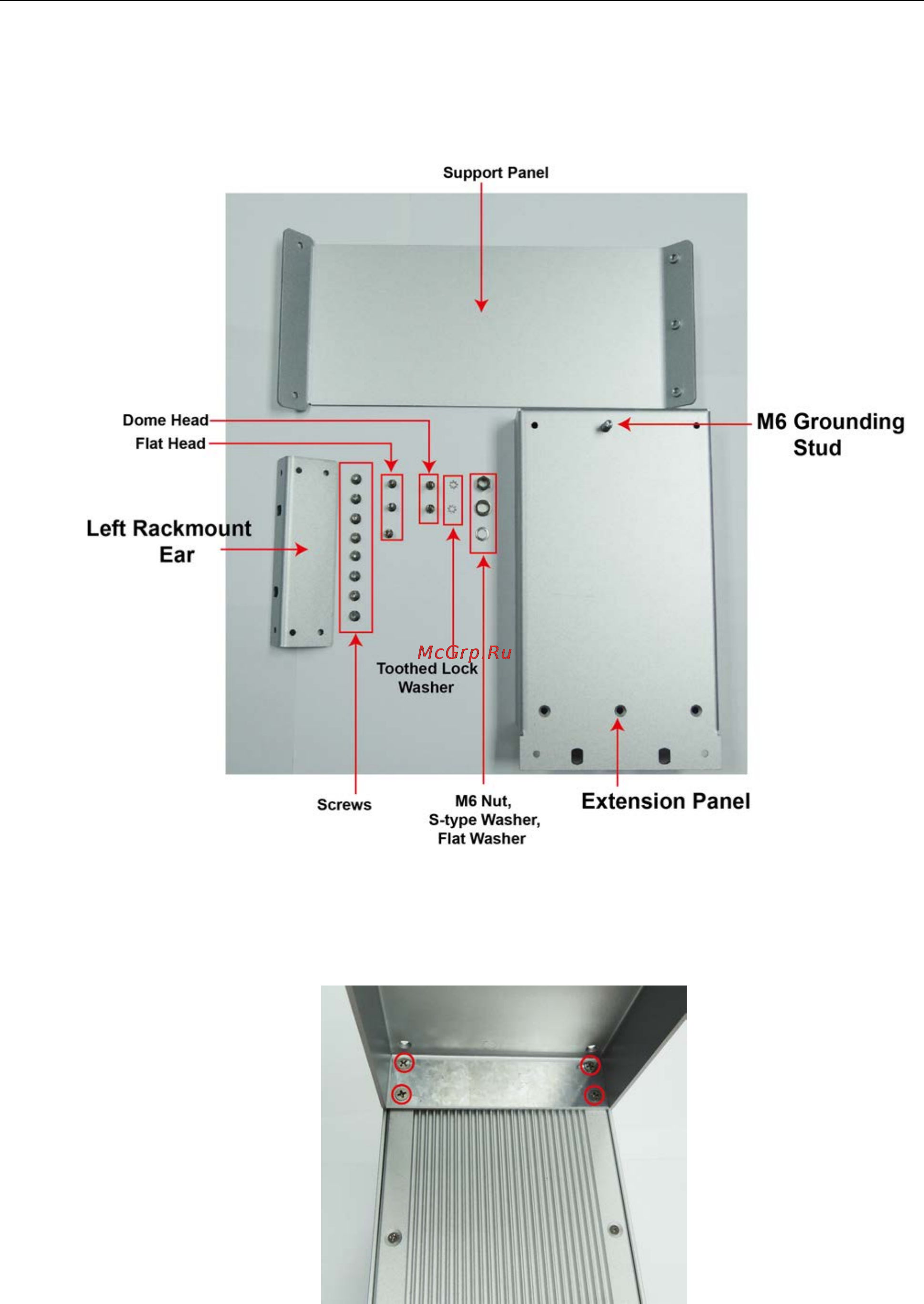

Optional Rack Panel Extender Installation
The TC-6110 comes with an optional half-rack extender kit, allowing users to install the (half-rack) TC-6110
computer on a full 19-inch rack. This kit includes the following components.
Follow these steps to install the half-rack extender.
Step 1: Use four standard screws to install the standard (short) rackmount ear on the computer’s left side.
Step 2: Use another four standard screws to install the extension panel on the right side.
