TC-6110 Series Hardware BIOS Setup
3-5
AHCI (default); PATA; SATA; and IDE Non-Combined
Channel Master 1 to 3
This setting displays the storage devices installed on the computer’s master bus. These storage devices may be
DOMs, HDDs, SSDs, or a CF card.
Channel Slave 1 to 3
This setting displays storage devices installed on the computer’s slave bus. These storage drives may be DOMs,
HDDs, SSDs, or a CF card.

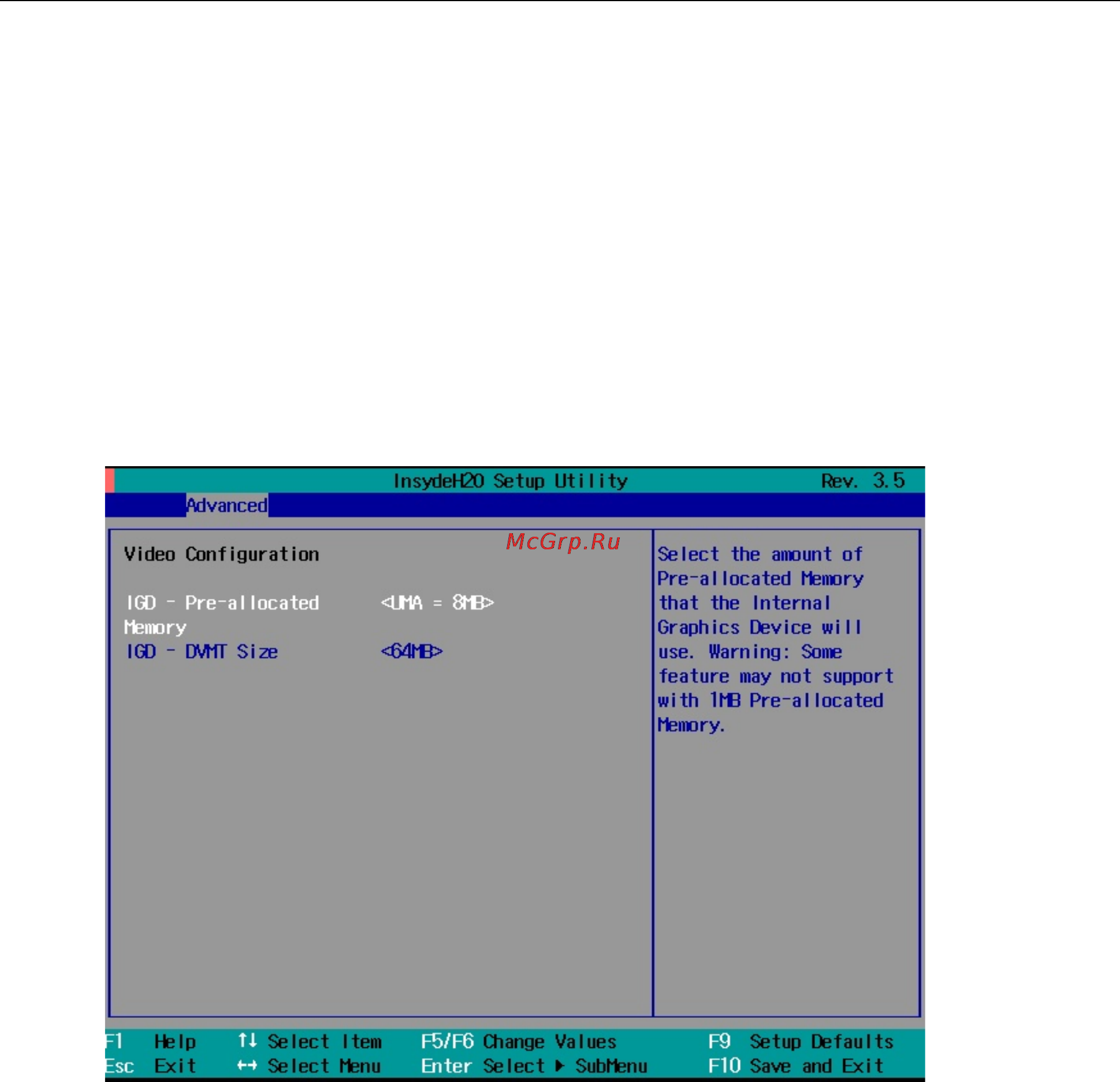

Video Configuration
This item allows you to configure the video settings.
IGD – Pre-Allocated
This item allows you to configure the pre-allocated capacity for the graphic memory capacity.
Options: 8 MB (default), 1 MB
IGD – DVMT Size
This item allows you to configure the capacity of the DVMT 5.0 used by the internal graphics device.
Options: 64 MB (default) , 128 MB, 224 MB
