TC-6110 Series Hardware Hardware Installation
2-13

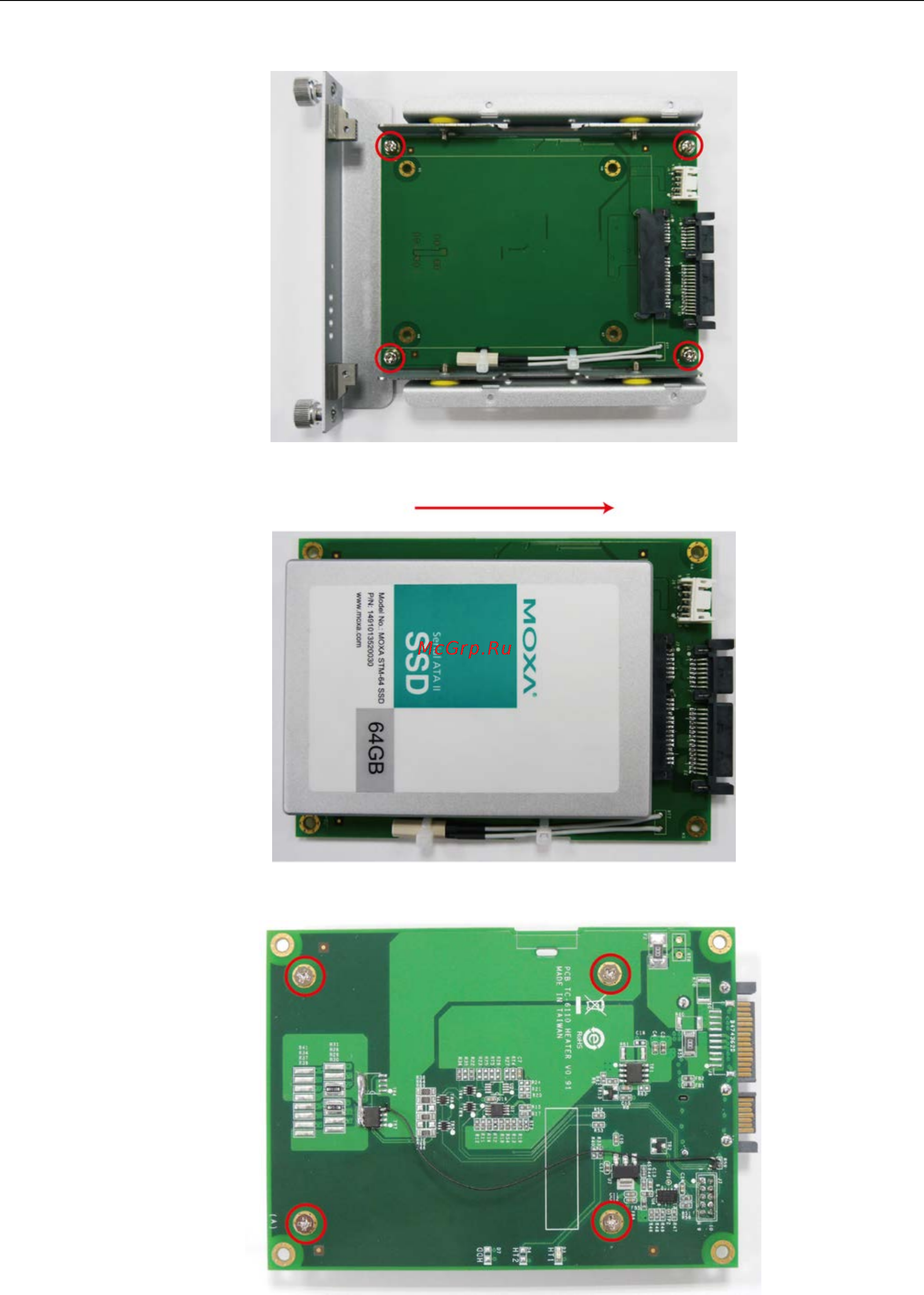

Step 4: Remove four screws on the tray.
Step 5: Insert the SSD/HDD into the tray.
Step 6: Turn back the tray and fasten the drive to the PCB using the holes indicated below.
