TC-6110 Series Hardware BIOS Setup
3-6

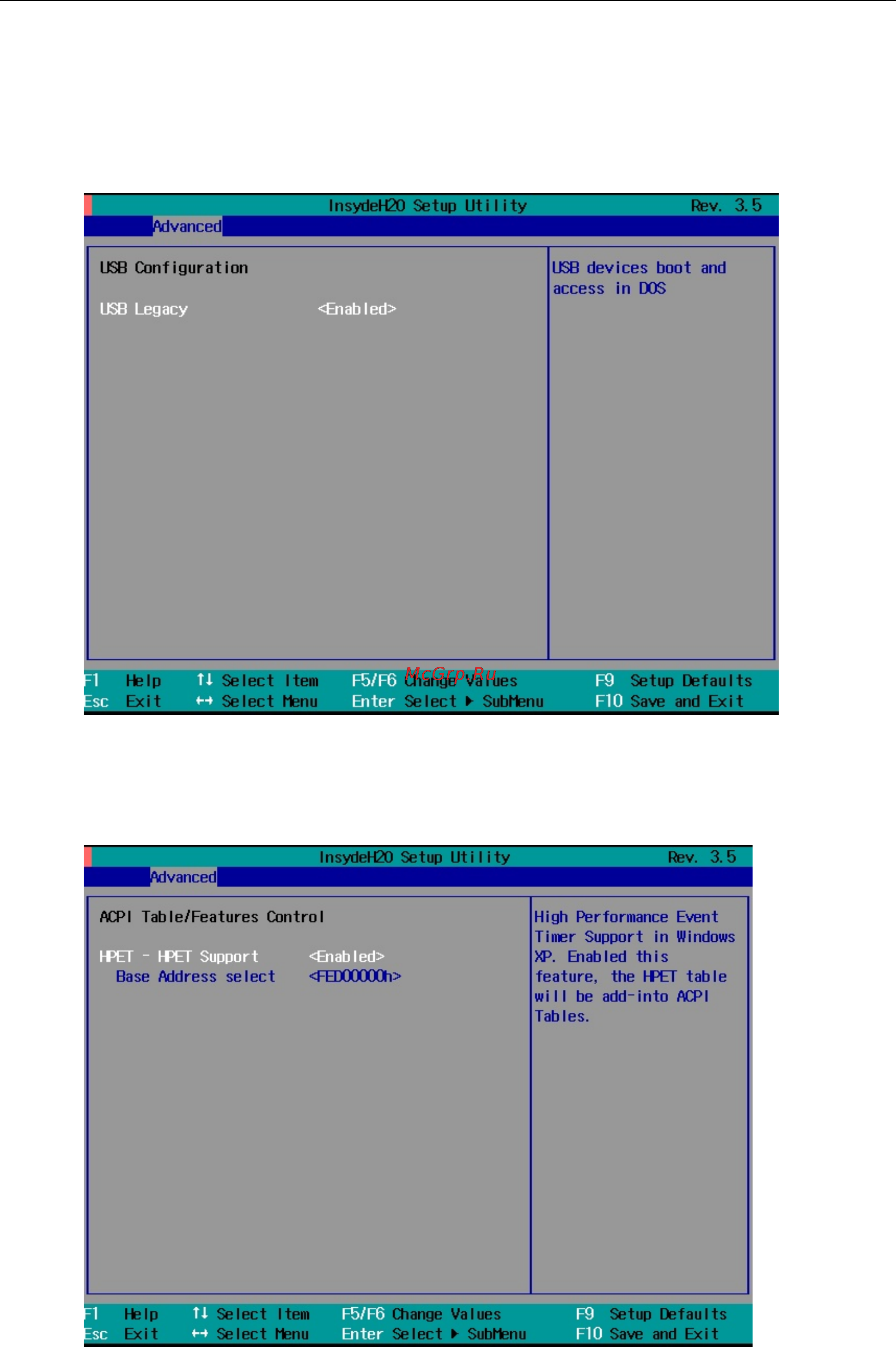

USB Configuration
This item allows you to turn USB Legacy mode on or off. USB Legacy allows older USB devices to be accessed
from the earliest boot initialization, and/or DOS.
Options: Enabled (default), Disabled
ACPI Table/Features Control
This item allows you to configure the HPET functions.
