TC-6110 Series Hardware BIOS Setup
3-10
Use XD Capability
This item allows you to enable/disable the Intel XD function, which provides executable space protection by
toggling the NX bit in memory spaces designated as data. This gives a strong protection against buffer
overflows by preventing the execution of malicious code that has been delivered into memory space in a hidden
data packet.
Options: Disabled (default), Enable

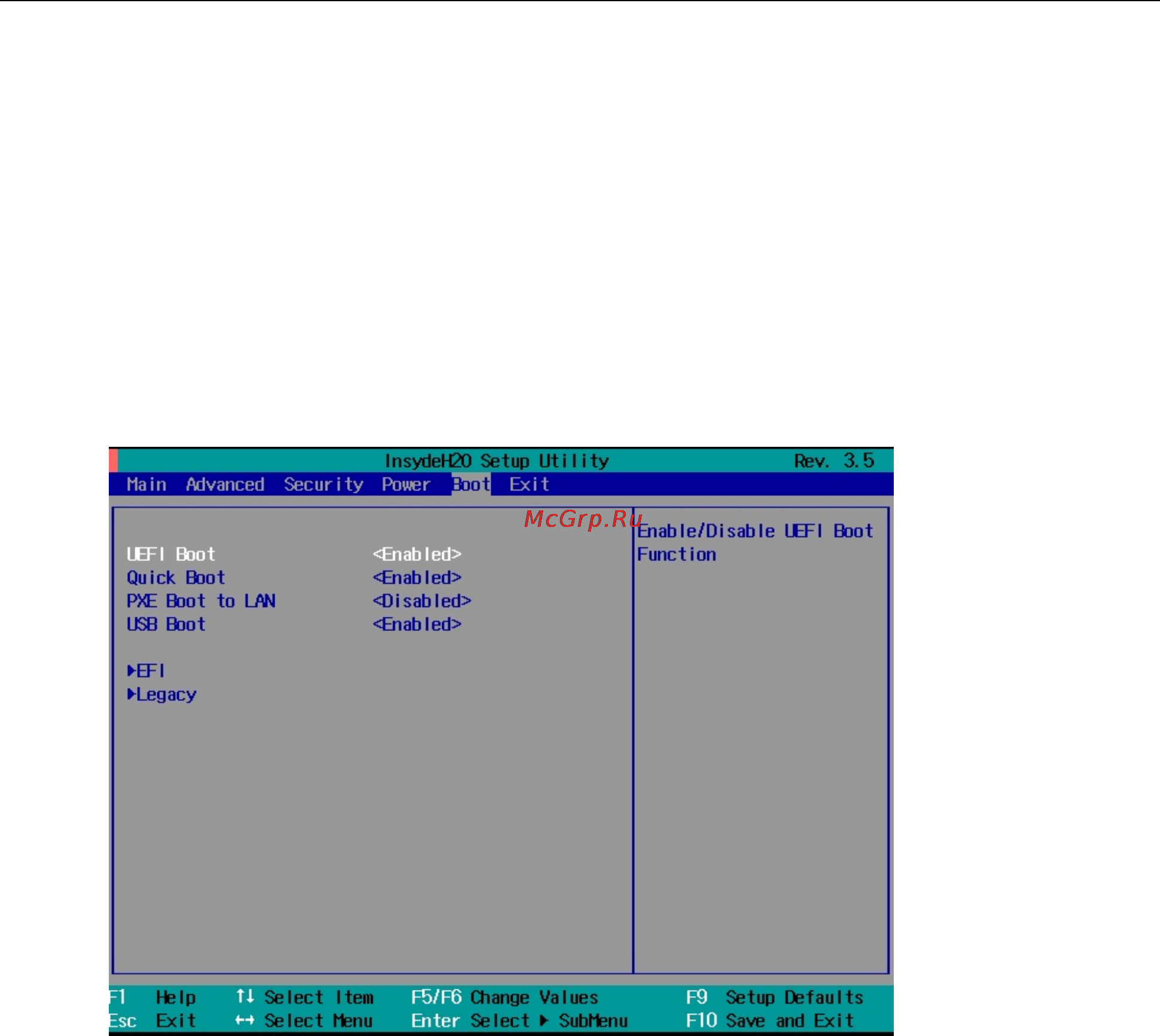

Boot Settings
The section allows users to configure boot settings.
UEFI Boot
This item allows you to enable/disable the Unified Extensible Firmware Interface, which allows for remote
diagnostics and repair of computers even without an operating system. Users who are concerned about safety
or ownership issues may disable it.
Options: Enabled (default), Disabled
Quick Boot
This item allows you to enable/disable quick book function to reduce OS loading times.
Options: Enabled (default), Disabled
PXE Boot to LAN
This item allows you to configure the Preboot eXecution Environment‘s boot-to-LAN function. PXE provides
an independent boot environment that may be initialized over a network interface, without intermediary
storage devices or local operating systems.
Options: Disabled (function), enabled
