![Moxa MC-5157-DC [11/56] Dimensions](/img/pdf.png)
Moxa MC-5157-DC [11/56] Dimensions
![Moxa MC-5157-AC [11/56] Dimensions](/views2/1200540/page11/bgb.png)
MC-5150-AC/DC Hardware Introduction
2-3

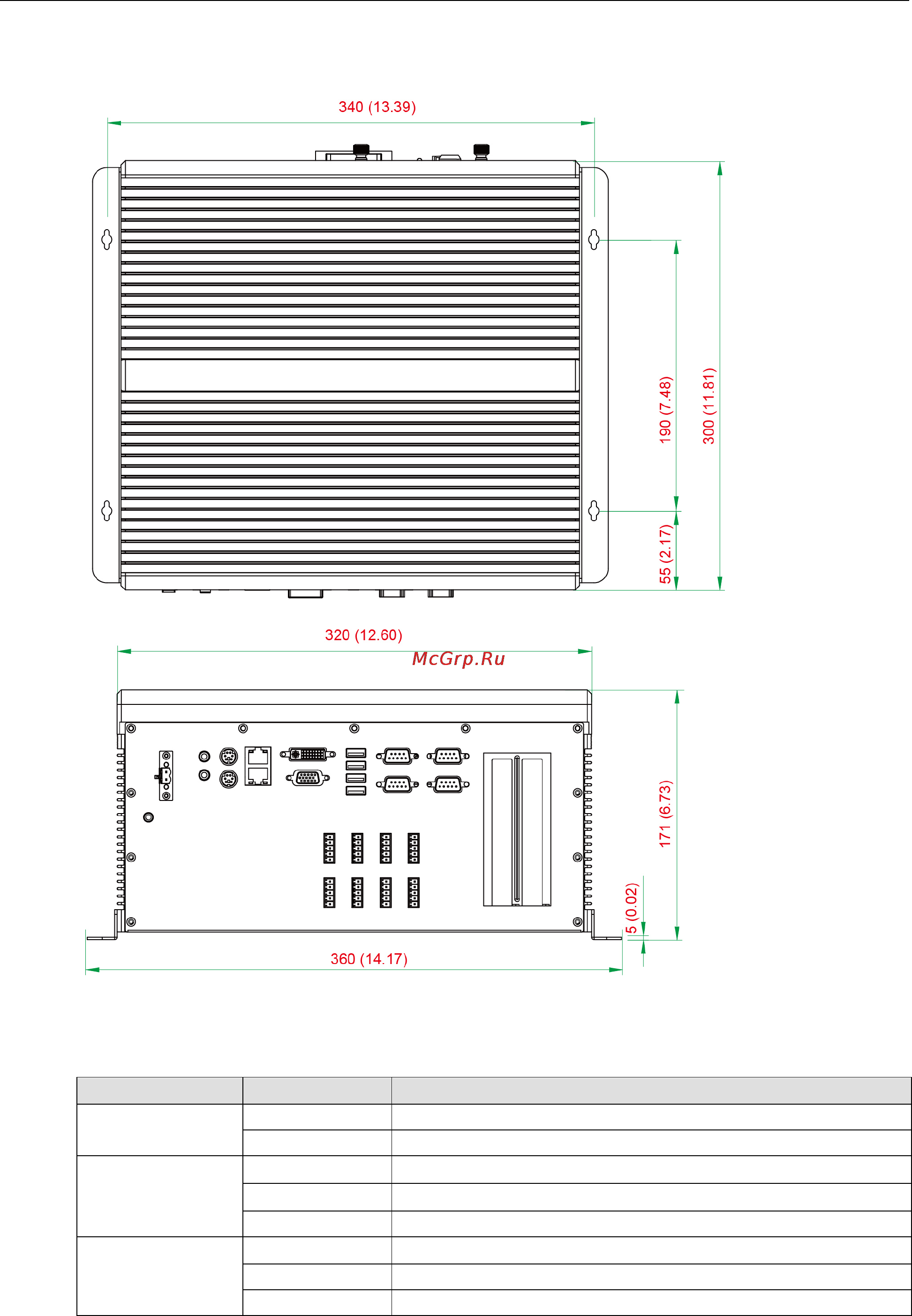

Dimensions
LED Indicators
LED Name LED Color LED Function
Power Green Power is on and functioning normally
Off Power is off or a power error exists
Storage Red (on) SSD is inserted and detected
Red (blinking) SSD is reading/writing
Off No activity
LAN Green 100 Mbps Ethernet mode
Yellow 1000 Mbps (Gigabit) Ethernet mode
Off No activity or 10 Mbps Ethernet mode
