MC-5150-AC/DC BIOS Setup
4-16

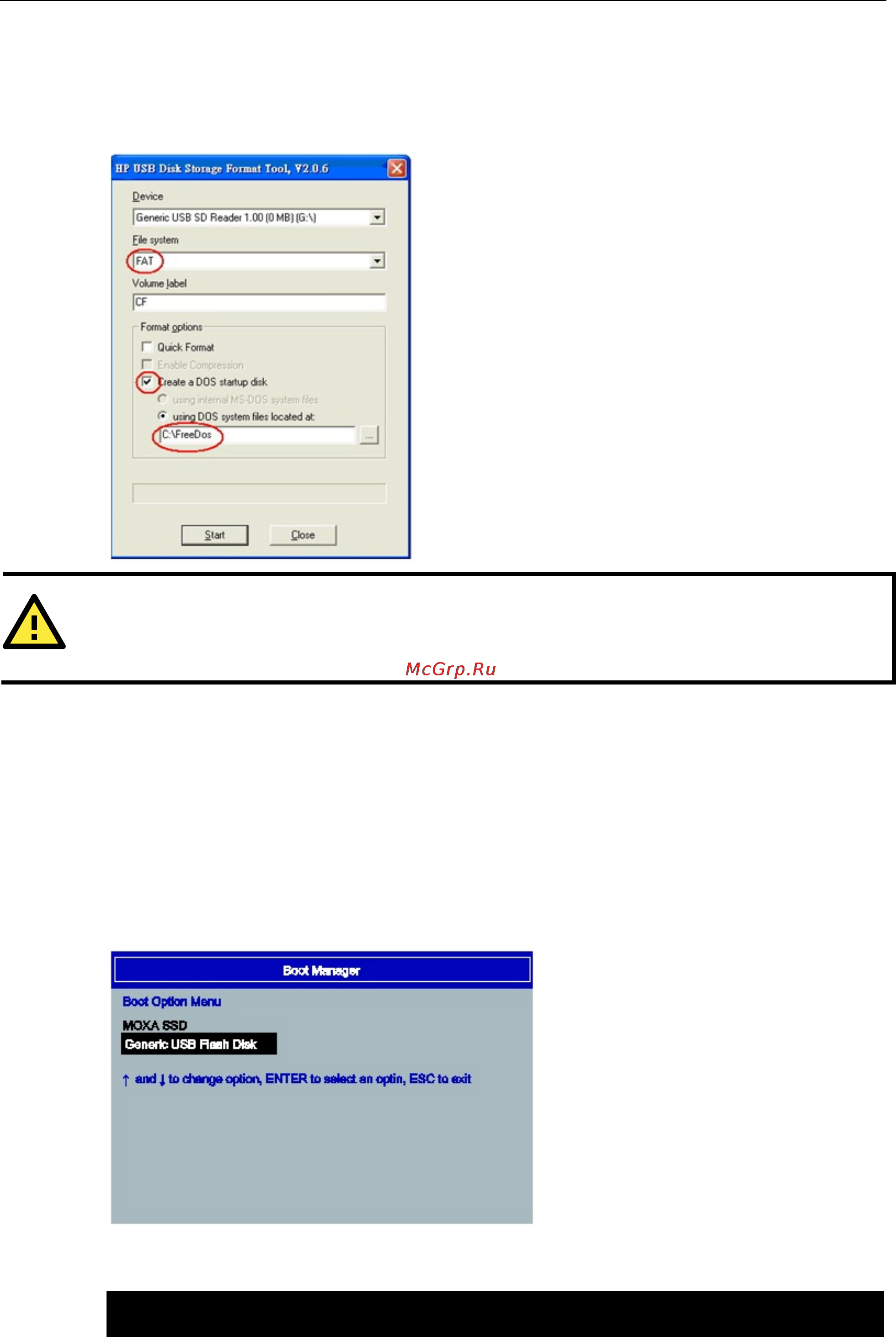

3. Select FAT in the File system drop down box.
4. Type the disk name in the Volume label field.
5. Check the option Create a DOS startup disk under format options.
6. Specify the directory of the system files (for example, C:\FreeDOS).
7. Click Start to format and create the USB disk.
ATTENTION
We suggest you use a USB drive
with under 2 GB in disk space, as larger USB drives may not support FAT file
format and consequently fail to boot.
Step 2: Prepare the Upgrade File
You must use the BIOS upgrade installation file to upgrade the BIOS. Contact Moxa’s technical department for
assistance.
1. Get the BIOS upgrade installation file. The file name should have following format: MC51xxSxx.exe (xx
refers to version numbers).
2. Copy the file to the Bootable USB Disk.
Step 3: Run the upgrade program on theMC-5157-AC/DC Computer
1. Reboot the computer, press F12 while booting up to go to the Boot Manager
2. Select USB Disk as the first boot source. Press Enter to continue.
3. When boot up finishes, DOS screen will show up. Go to the directory where the upgrade file is located. For
example, if the upgrade file is stored in the MC_5157 folder, type cd MC_5157
C:
\cd MC_5157
