MC-5150-AC/DC Introduction

1-4

Ambient Relative Humidity:

5 to 95% (non-condensing)

Anti

-vibration:

• 0.7 g @ DNV 2.4 (Class A), sine wave, 2

-100 Hz, 1 Oct./min., 1.5 hr per axis

• 1 grms @ DNV 2.4, random wave

, 3-100 Hz, 2.5 hr per axis

• 2.1 g @ DNV 2.4 (Class C), sine wave, 2

-50 Hz, 1 Oct./min., 1.5 hr per axis

Anti

-shock: 50 g @ IEC 60068-2-27, half sine wave, 11 ms

Power Requirements

Input Voltage:

• DC Model: 24 VDC (with tolerance from 18 to 30 VDC, 2

-pin terminal block)

• AC Model: 100 to 240 VAC

Power Consumption:

Less than 100 W, 2.5 A @ 24 VDC

Standards and Certifications

Safety:

UL 60950-1, DNV 2.4 (Pending), IEC 60945 (4th) (Pending), IACS-E10 (Pending), CCC (GB4943,

GB9254, GB17625.1)

EMC:

EN 55022 Class B, EN 55024-4-2, EN 55024-4-3, EN 55024-4-4, FCC Part 15 Subpart B Class B

Marine:

IEC 60945 4th. (Pending), IACS-E10 (Pending)

Green Product:

RoHS, cRoHS, WEEE

Reliability

MTBF (mean time between failures):

220,490 hrs

Warranty

Warranty Period:

3 years

Details:

See www.moxa.com/warranty

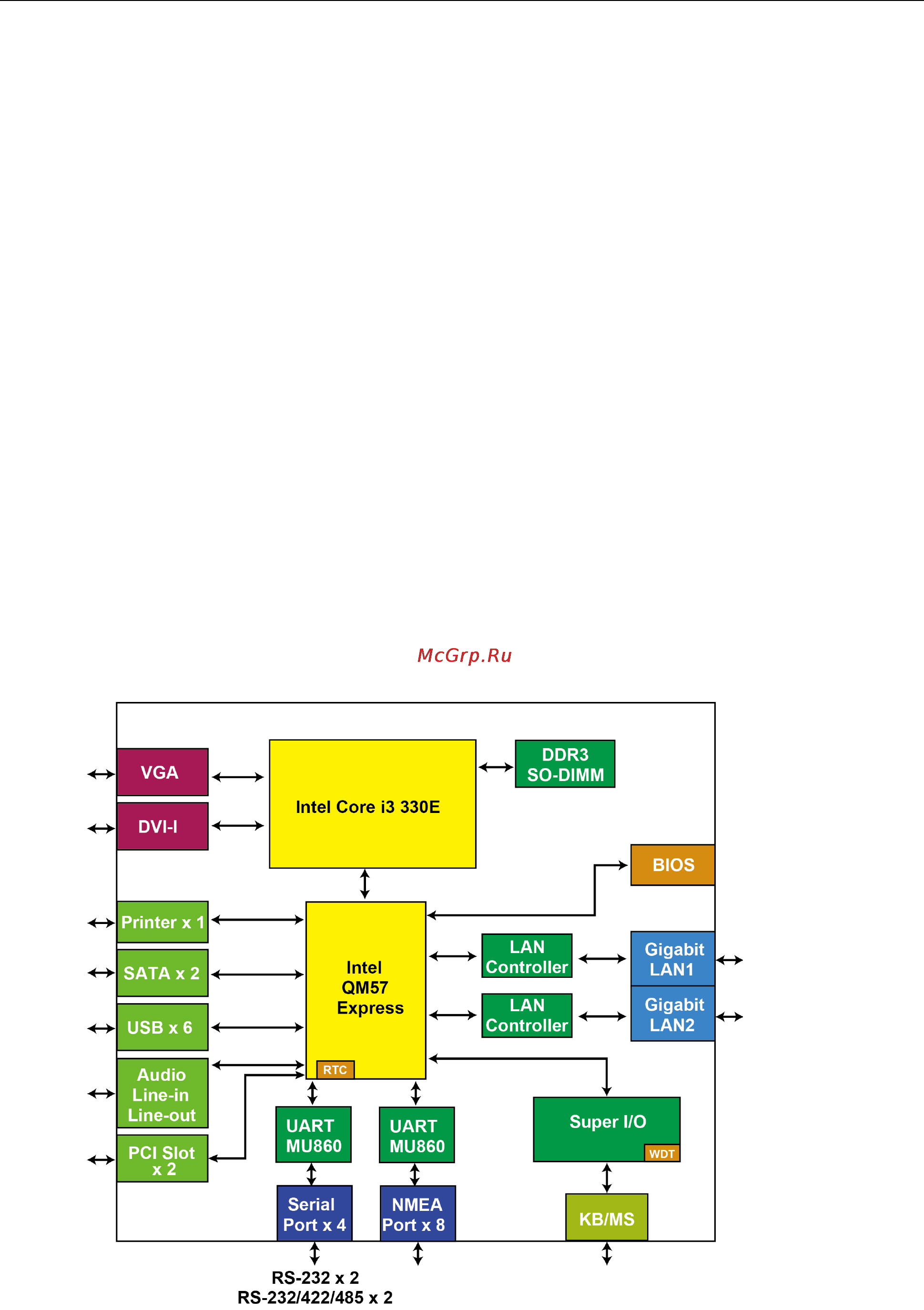

Hardware Block Diagram
