MC-5150-AC/DC Hardware Connection Description
3-11

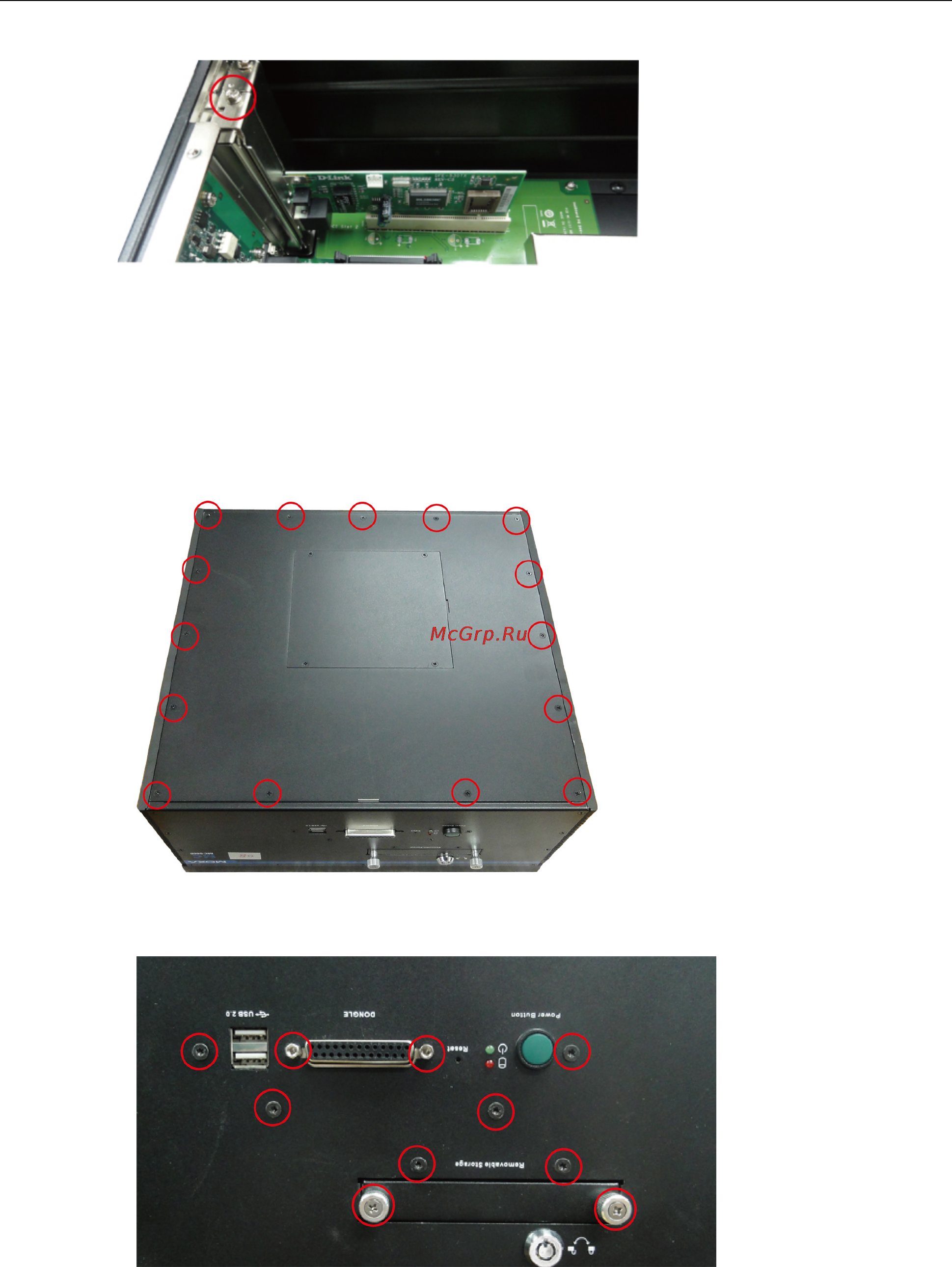

5. Insert the PCI card into the slot, and remember to fasten the screw.
Upgrading the Memory Module
The MC-5157-AC/DC has pre-installed with 2 GB DDR3 SDRAM onboard, and supports up to 8 GB DDR3 SDRAM.
If you would like to upgrade the memory module, please follow the steps below.
1. Remove all the screws on the back cover of the computer.
2. Remove the screws on the front panel of the computer, including the screws for the dongle, and
remember to take out the removable storage tray on the front panel.
