Connecting a PS/2 Keyboard and Mouse

Your MC-7130-MP computer comes with 2 PS/2 mini-DIN connectors on the rear panel to connect to a PS/2

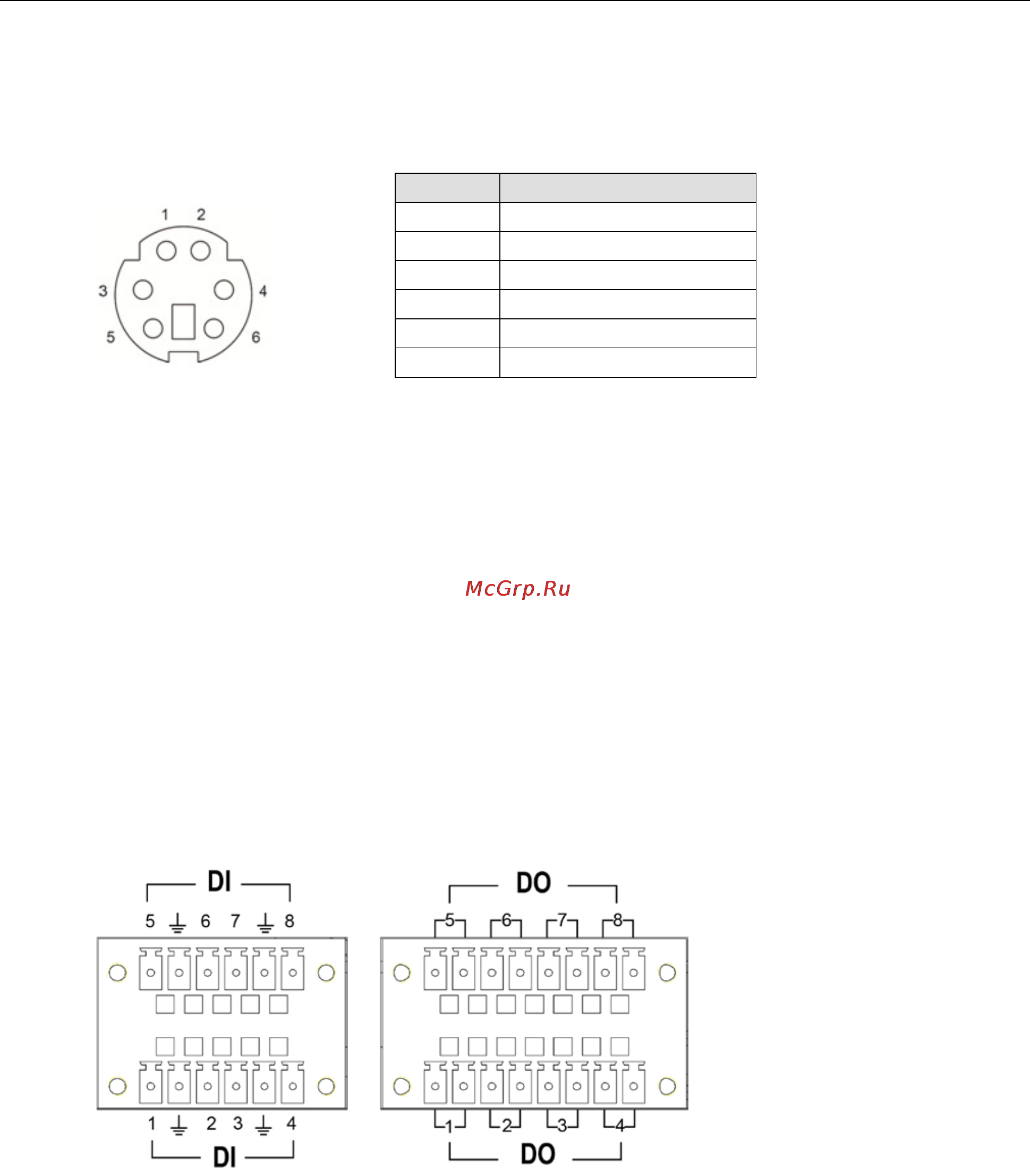

keyboard and PS/2 mouse. This 6-pin mini-DIN connector has the pin assignments shown below.

PS/2 Connector

Pin No. Signal Definition

PS/2 Keyboard Data

2 PS/2 Mouse Data

3 GND

4 VCC

5 PS/2 Keyboard Clock

6 PS/2 Mouse Clock

Connecting to the USB Device

The MC-7130-MP comes with two USB 2.0 hosts on the front panel, four USB 2.0 hosts, and two SuperSpeed

USB 3.0 hosts on the rear panel. The USB ports support peripherals such as a keyboard or mouse, or storage

devices such as a portable HDD or DVD-ROM. Please note that USB 3.0 interfaces are not supported by the

Windows XP platform.

Connecting to Digital Input and Output

Channels

The MC-7130-MP comes with eight digital input and eight digital output channels on the rear panel. These

input/output channels can be connected with the terminal blocks which have been included in the package. See

the following figure for the pin assignments.
