MC-7130-MP Series Hardware Connection Description

3-7

Connecting to a

Speaker/Headphone/Microphone

The MC-7130-MP comes with audio input, output, and microphone interfaces on the rear panel for connecting

a microphone, speaker, or headphones.

Installing the Removable SATA Storage Drive

The MC-7130-MP computer comes with a removable SATA storage device tray that is accessible through the

front panel. Either a SATA hard disk or solid state drive may be installed, but only use of an SSD will ensure full

anti-vibration compliance. To install a SATA storage device, please follow these instructions:

1. Disconnect the MC-7130-MP from the power source.

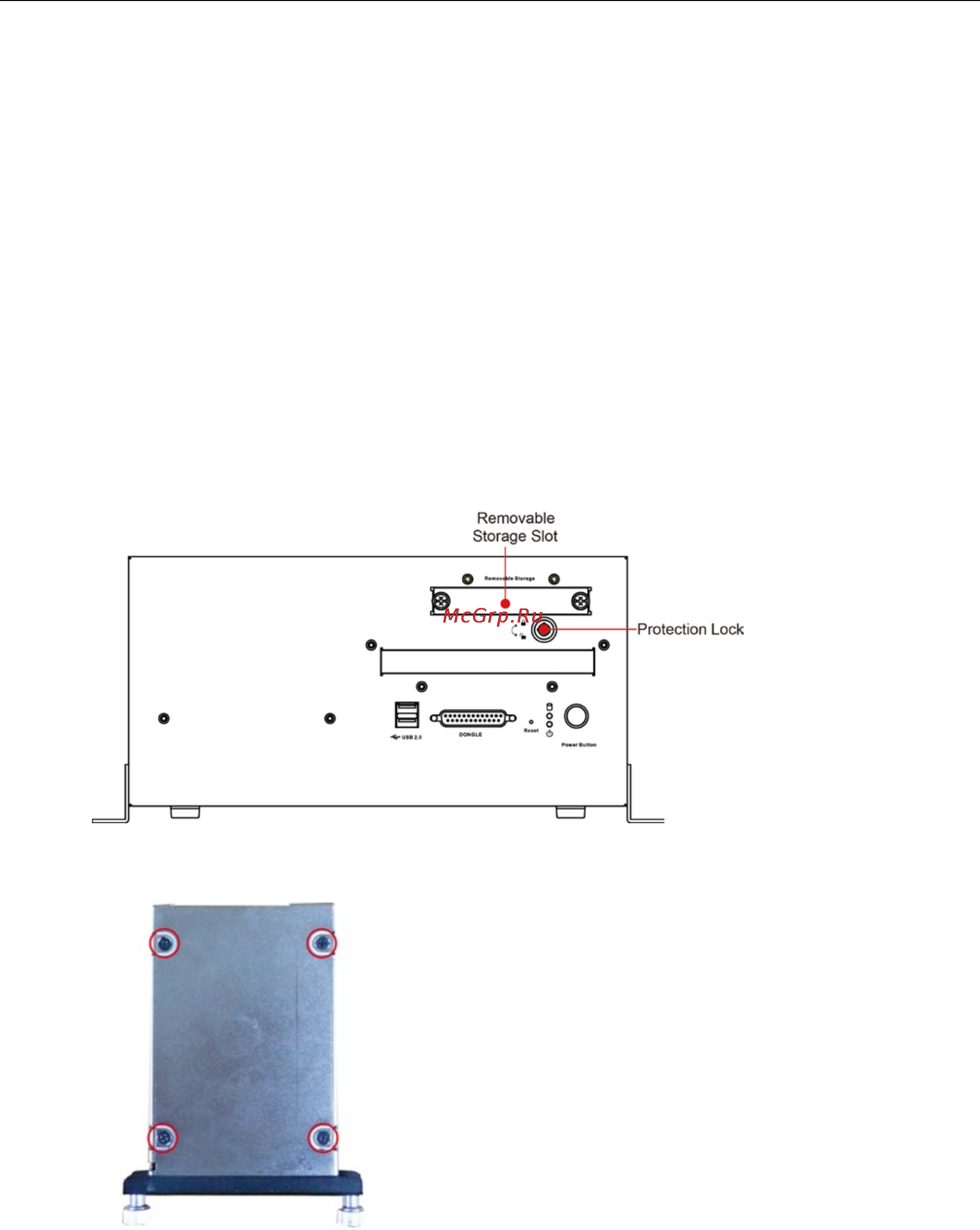

2. To remove the storage device tray, insert the protection key and turn it to the right, then unfasten the two

thumbscrews that secure the removable tray. The storage tray’s location may be seen in the following

figure:

3. Take off the storage bracket from the slot and turn it over to get access to the four screws which will secure

the drive to the tray.

4. Place the drive into the tray and secure it using the four screws. When finished, insert the tray into the

computer and fasten the tray in place using the two thumbscrews on the front panel. Finally, complete the

installation by turning the key leftwards to lock the tray into place.
