MC-7130-MP Series Hardware Connection Description
3-9

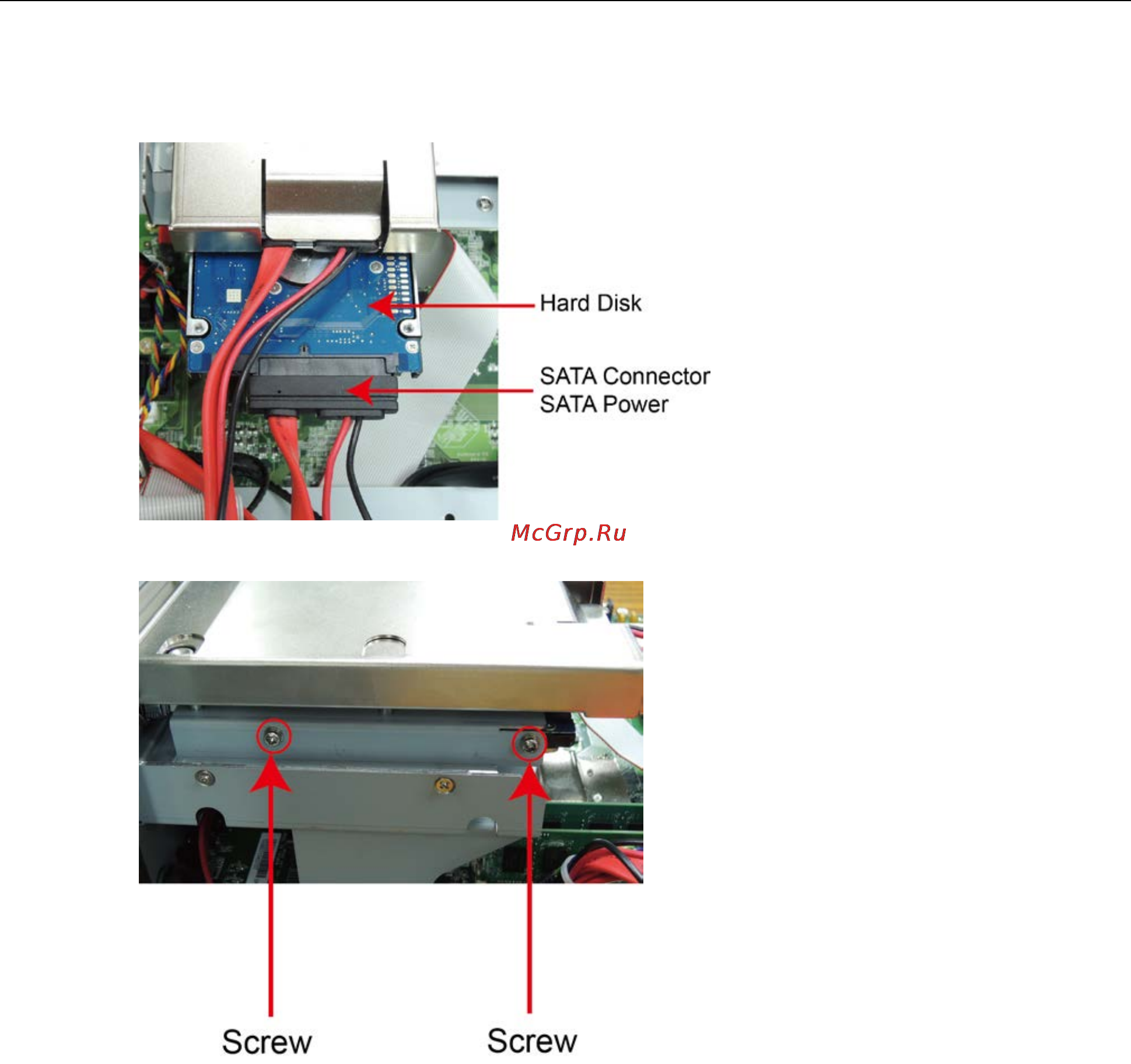

3. The internal drive slot is located below the removable drive slot. Turn the drive so that its connectors are facing
towards you and insert it into the slot. Connect the SATA connector and SATA power cable. When finished, push
the drive inward.
4. Fasten the two screws on either side of the HDD slot.
5. Remember to replace the top cover on the computer to complete the installation.
