MC-7270-MP-T Series Hardware Connection Description
3-2
Installing the MC-7270-MP-T
Wall or Cabinet Mounting

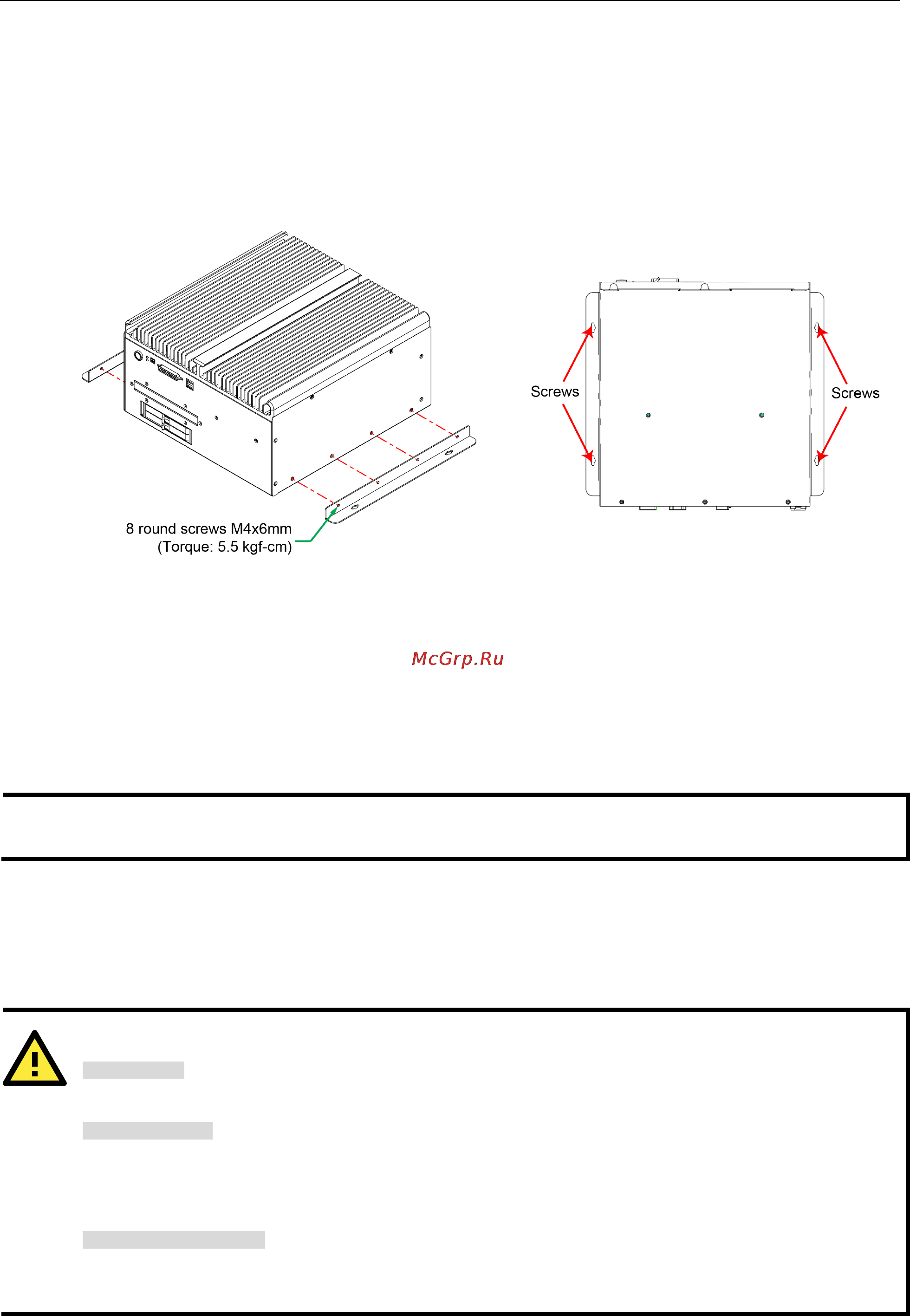

The MC-7270-MP-T has brackets for both wall and cabinet mounts. Attach one bracket on each side of the
MC-7270-MP-T, and then use suitable screws to attach the brackets to a wall or cabinet.
Wiring Requirements
Read and follow these common safety precautions before proceeding with the installation of any electronic
device:
• Use separate paths to route wiring for power and devices. If power wiring and device wiring paths must
cross, make sure the wires are perpendicular at the intersection point.
NOTE Do not run signal or communication wiring together with power wiring in the same wire conduit. To avoid
interference, wires with different signal characteristics should be routed separately.
• Use the type of signal transmitted through a wire to determine which wires should be kept separate. The
rule of thumb is that wiring that shares similar electrical characteristics can be bundled together.
• Keep input wiring and output wiring separate.
• It is advisable to label the wiring on all devices in the system.
ATTENTION
Safety First!
Be sure to disconnect the power cord before installing and/or wiring your MC-7270-MP-T.
Wiring Caution!
Calculate the maximum possible current in each power wire and common wire. Observe all electrical codes
dictating the maximum current allowable for each wire size.
If the current goes above the maximum ratings,
the wiring could overheat, causing serious damage to your equipment.
Temperature Caution!
Be careful when handling the unit. When the unit is plugged in, the internal components generate heat, and
consequently the outer casing may feel hot to the touch.
