MC-7270-MP-T Series BIOS Setup
4-3

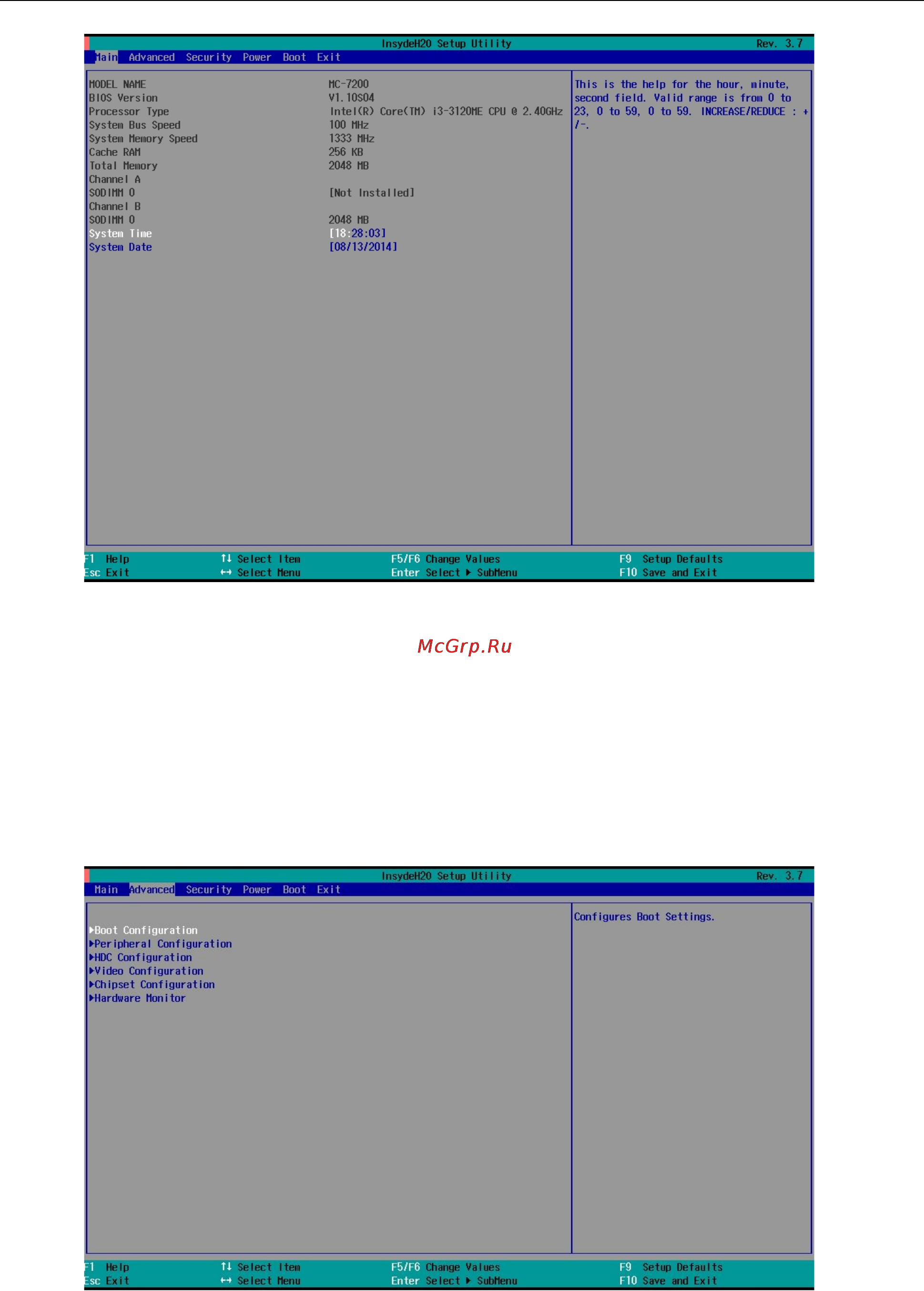

Main Information
The main page indicates the system information, such as model name, BIOS version, and CPU type. You may
view the basic system hardware information on this page.
Advanced Settings
The “Advanced Features” screen will appear when choosing the “Advanced” item from the main menu.
