MC-7270-MP-T Series BIOS Setup
4-5
Mode
This setting allows you to configure the mode for the parallel port.
Options: SPP (default), EPP, ECP, EPP+ECP
HDC Configuration

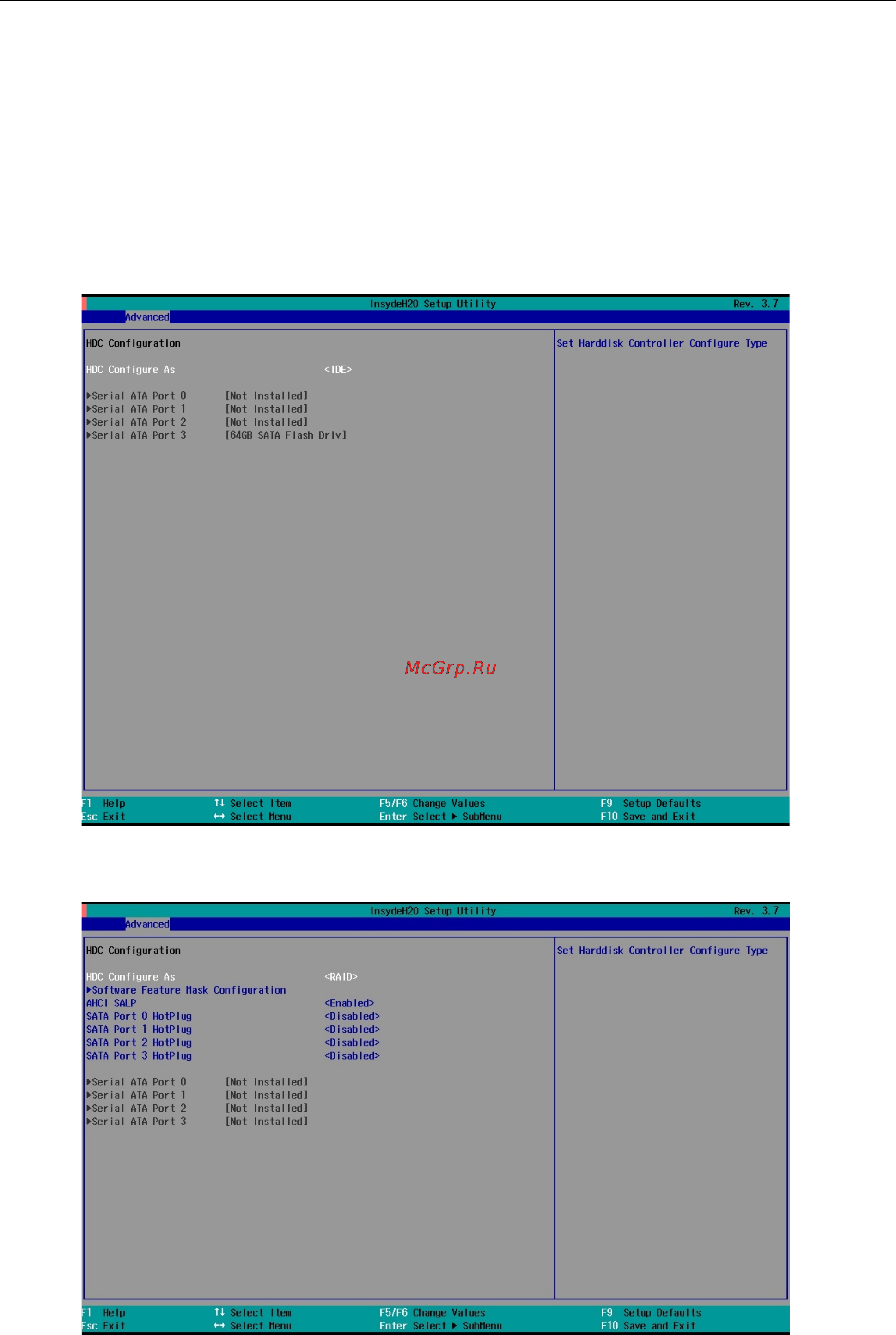

The host drive controller may be configured for IDE (legacy default), AHCI, or RAID mode. When the legacy IDE
mode is selected, the following screen will appear.
When RAID mode is selected, the following screen will appear. Select Software Feature Mask Configuration
to choose which RAID configuration you want to set up.
.
