Moxa MC-7230-MP-T [46/47] How to use the mxserialinterface utility
![Moxa MC-7230-MP-T [46/47] How to use the mxserialinterface utility](/views2/1200554/page46/bg2e.png)
MC-7270-MP-T Series Configuring Serial Ports
C-3

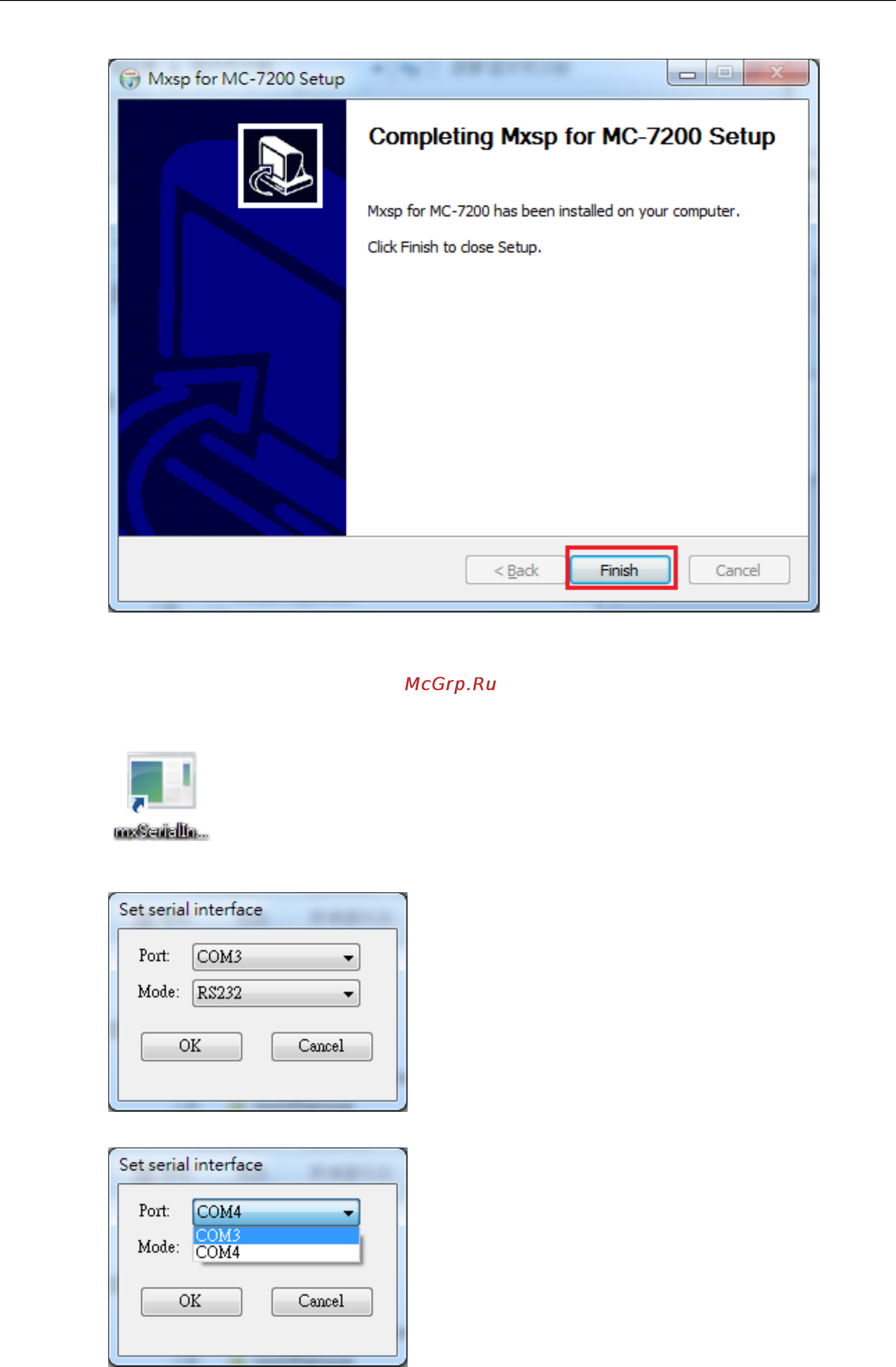

4. Click Finish to complete the installation process.
How to Use the “mxSerialInterface” Utility
1. Double click the mxSerialInterface icon.
2. The application UI will appear as shown below.
3. Select COM3 or COM4 from the Port drop-down menu.
