MC-7270-MP-T Series BIOS Setup
4-11
Boot Settings

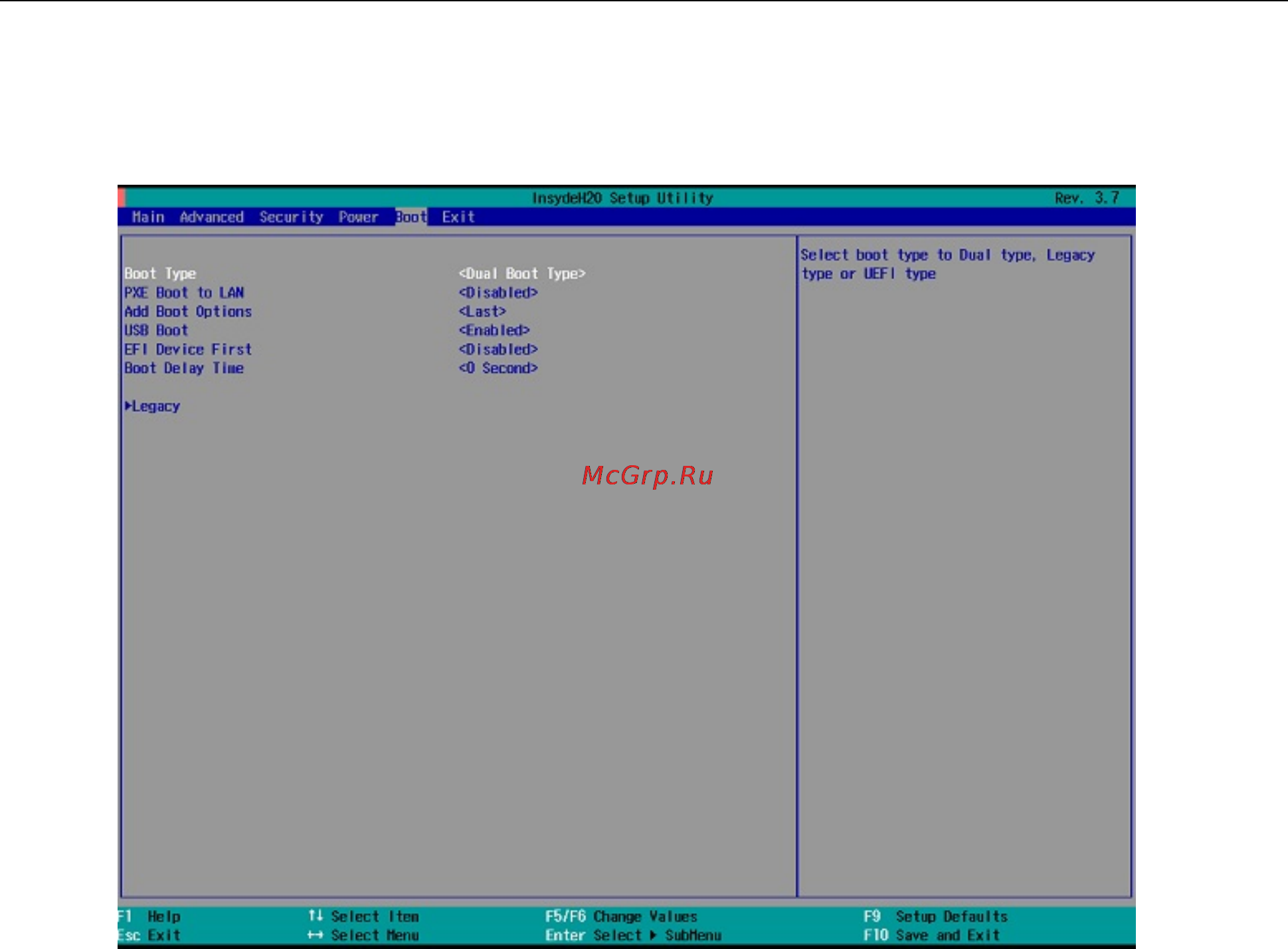

The section allows users to configure boot settings.
Boot Type
This item allows you to enable/disable quick boot function.
Options: Dual Boot Type (default), Legacy Boot Type, UEFI Boot Type.
PXE Boot to LAN
This item allows you to enable/disable PXE boot to LAN function.
Options: Disabled (default), Enabled
Add Boot Options
This item allows you to add the boot order options for shell, network, and Removables.
Options: Last (default), First
USB Boot
This item allows you to enable/disable USB boot function.
Options: Enabled (default), Disabled
