MPC-2240 Hardware Manual Hardware Connection Description
3-5

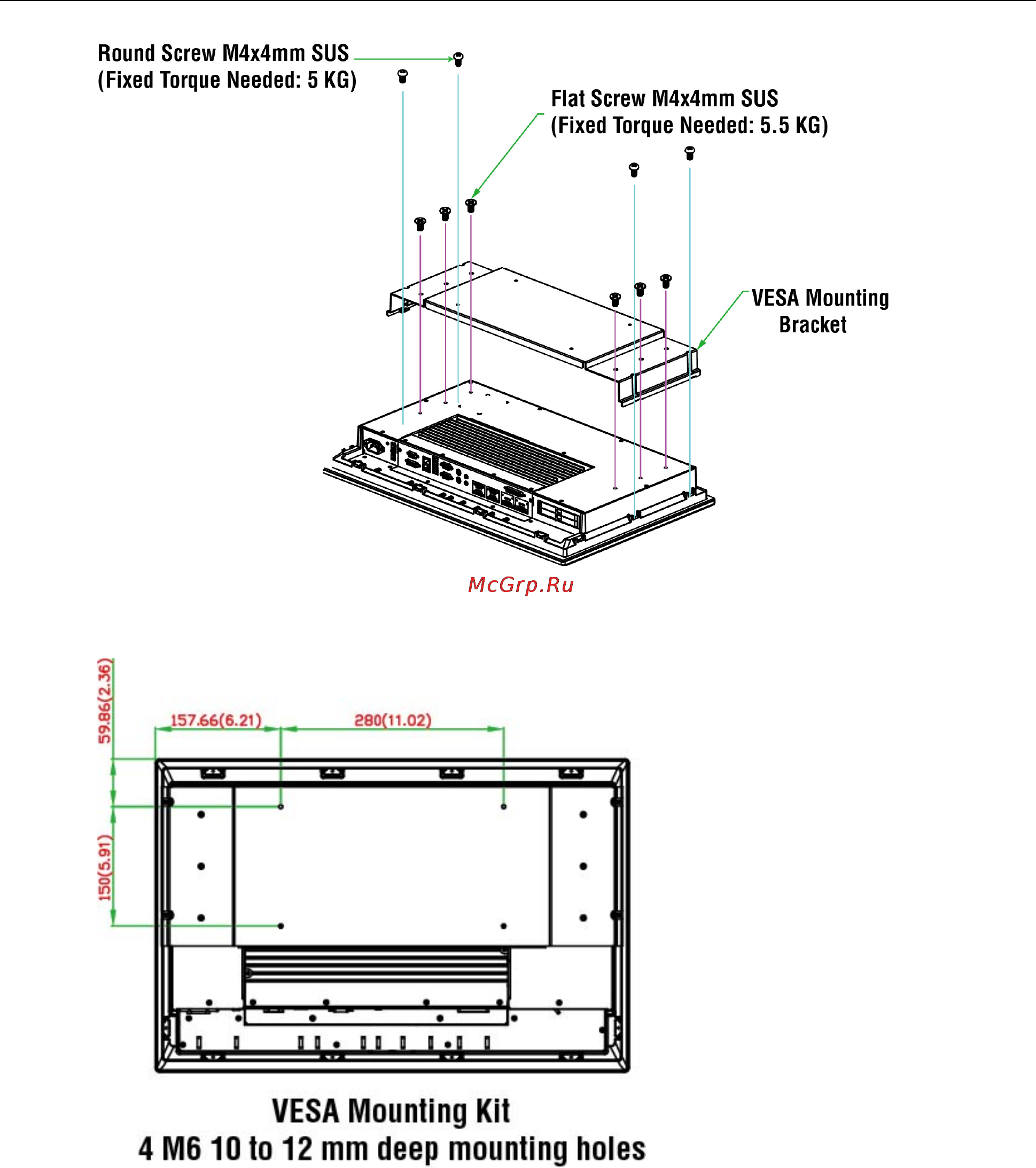

An additional four screws (not included in the kit) are required to mount the computer on a VESA rack. For this
purpose, use M6 screws with a length between 10 and 12 mm.
