Specifications

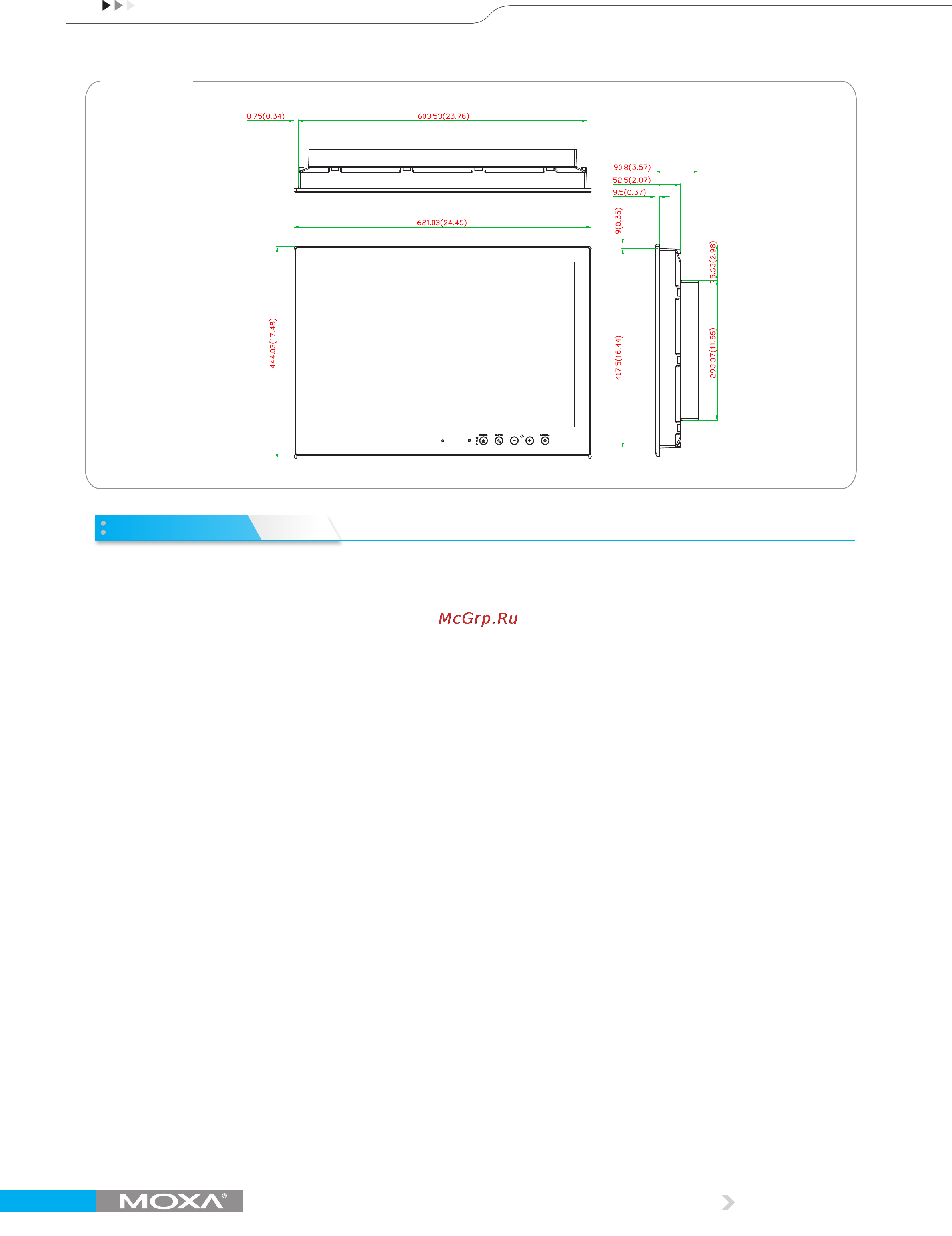

Dimensions
Unit: mm (inch)
Display
Panel Size: 26” viewable image size
Panel Type: MVA
Aspect Ratio: 16:10
Pixels: 1920 x 1200 (WUXGA)
Pixel Pitch (RGB): 0.2865 (H) x 0.2865 (V) mm
Response Time: 15 ms (gray to gray)
Contrast Ratio: 1500:1
Light Intensity: 300 cd/m^2
Viewing Angles: 176˚/176˚
Active Display Area: 550.08 (H) x 343.8 (V) mm
Max Colors: 16.7M / 8-bit color
Display Interface:
• 1 VGA input
• 1 DVI-D input
Resolution:
• VGA: 640 x 480
• SVGA: 800 x 600
• XGA: 1024 x 768
• SXGA: 1280 x 1024
• WSXGA+: 1920 x 1080
• WUXGA: 1920 x 1200
Serial Interface
Serial Standards: 1 RS-232 port (male DB9), 1 RS-422/485 port
(Euroblock)
Optical Isolation Protection: 4 kV
Serial Signals
RS-232: TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND
RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485-2w: Data+, Data-, GND
Front Panel
LEDs: MENU, Brightness, INFO, ECDIS, Day/Dusk/Night
Smart OSD: Yes
Physical Characteristics
Housing: Aluminum sheet metal
Weight: 15.2 kg
Dimensions: 621 x 440 x 90 mm (24.45 x 17.48 x 3.57 in)
Mounting: VESA, panel, or desktop mountings
Environmental Limits
Operating Temperature: -15 to 55°C (5 to 131°F)
Storage Temperature: -20 to 60°C (-4 to 140°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Note: If you expect the storage temperature to exceed 40°C, please ensure that
the ambient relative humidity remains below 60%.
IP Rating:
• Front: IP54
• Rear: IP22
Anti-Vibration:
• 0.7 g @ DNV 2.4 (Class A), sine wave, 2-100 Hz, 1 Oct./min., 1.5 hr
per axis
• 1 g @ DNV 2.4, random wave, 3-100 Hz, 2.5 hr per axis
• 2.1 g @ DNV 2.4 (Class C), sine wave, 2-50 Hz, 1 Oct./min., 1.5 hr
per axis
Power Requirements
Input Voltage:
24 VDC, 6 A or (18 to 34 VDC, 8 A max.), screw-type terminal block
100 to 240 VAC, 50 to 60 Hz, 2 A, AC power inlet
Standards and Certifications
Safety: UL 60950-1, EN 60950-1, IEC 60950-1
EMC: EN 55022/24, CISPR 22, FCC Part 15B Class A
Marine: IEC 60945 4th, DNV, IACS E10, IEC 61174
Green Product: RoHS, cRoHS, WEEE
Warranty
Warranty Period: 1 year
Details: See www.moxa.com/warranty
