MPC-122-K Hardware Hardware Connection Description
3-7

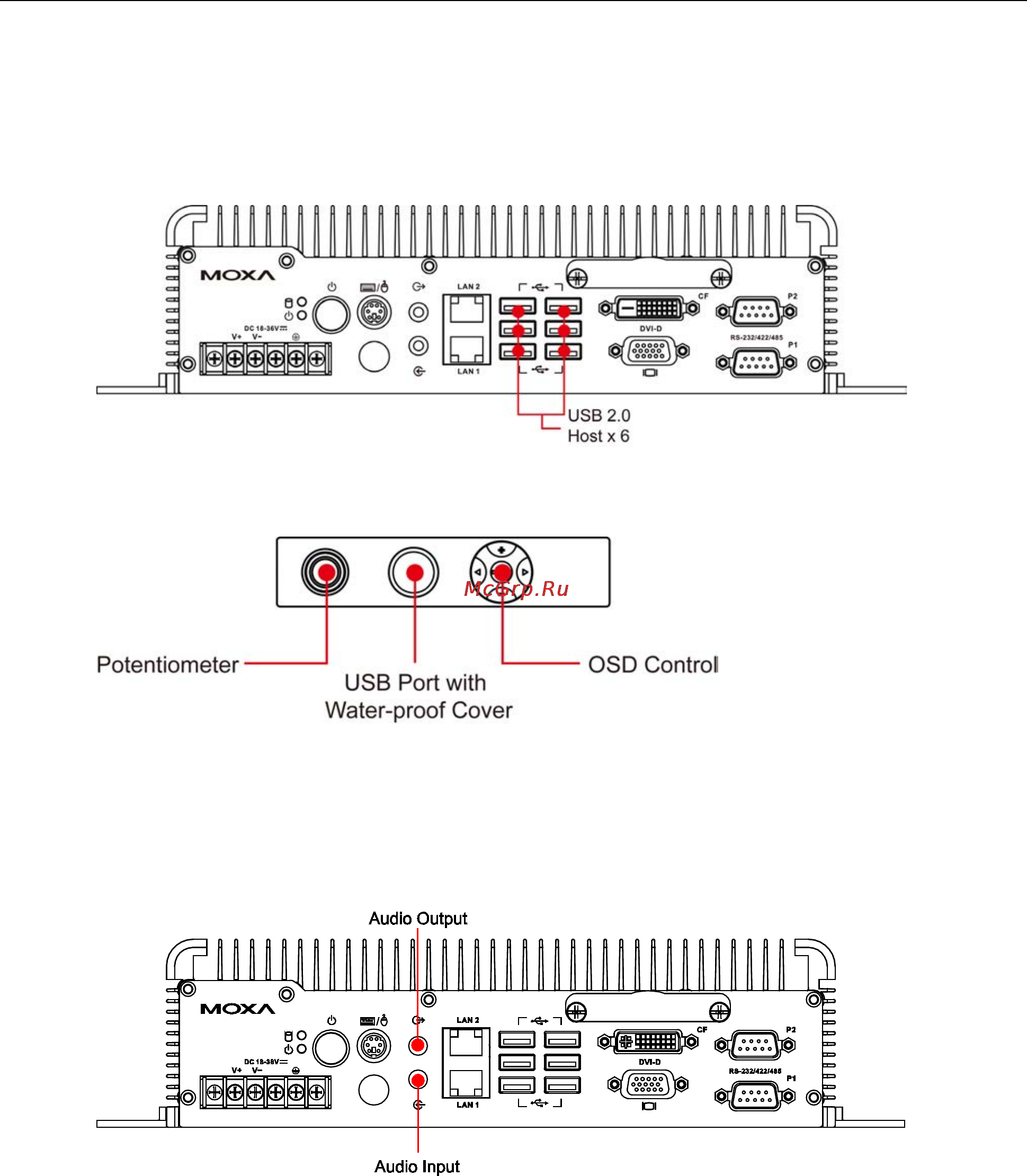

Connecting to USB Devices
The MPC-122-K comes with 6 USB 2.0 ports on the computer. The ports can be used for an external flash disk
or hard drive for storing large amounts of data. You can also use these USB ports to connect to a keyboard or
a mouse.
An additional USB port with a water-proof cover can be found on the front panel. To use, simply remove the
cover and connect to a USB supported device of your choice, such as a keyboard, mouse or storage disk.
Connecting to a Speaker or a Headphone
The MPC-122-K comes with audio input and output interfaces for connecting a microphone and speaker or
headphones. See the following figure for details.
