MPC-122-K Hardware BIOS Setup
4-8
Power

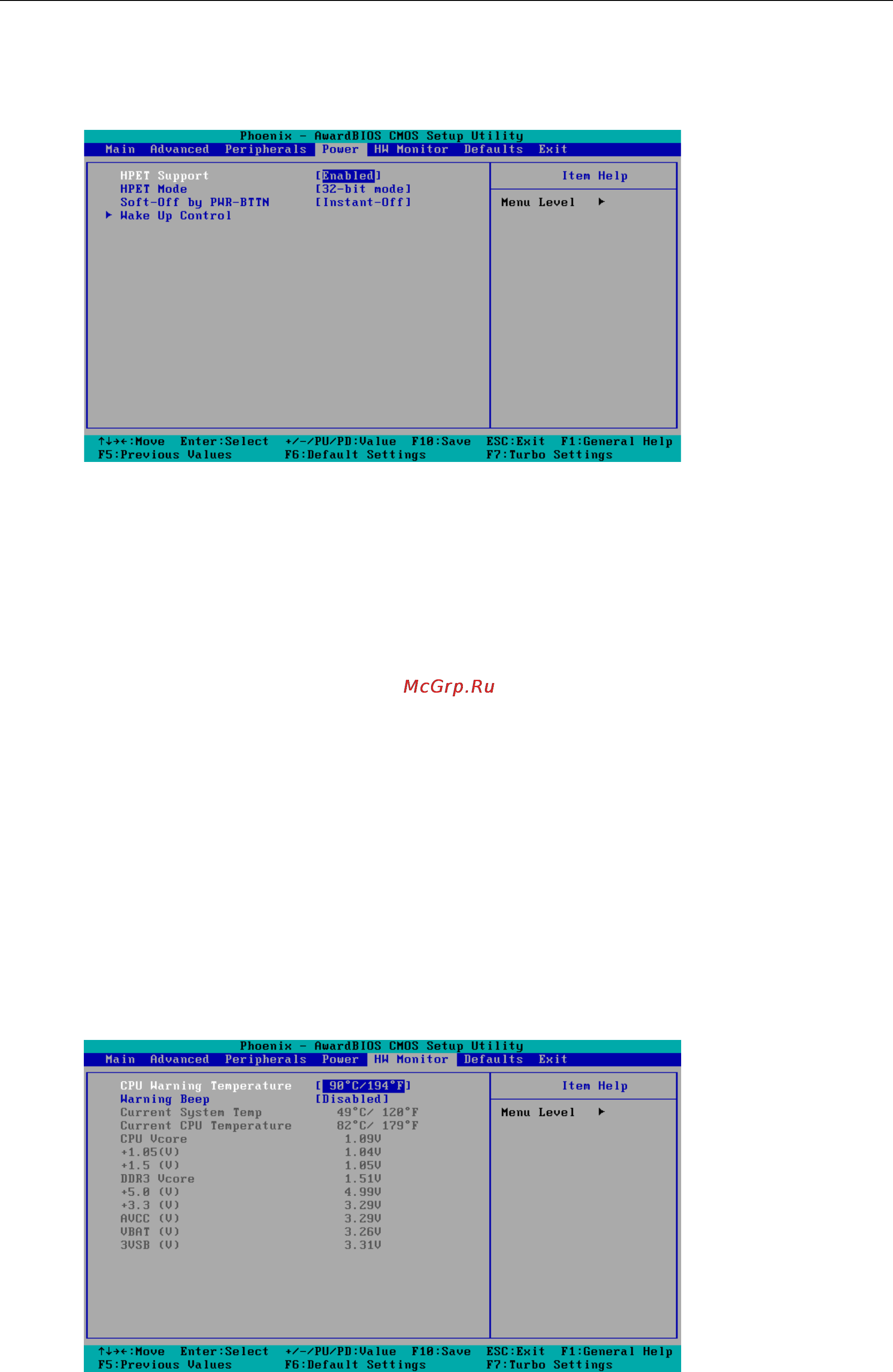

The Power Setup Menu allows you to configure your system power-up/ power-down options.
HPET Support
This item allows you to enable/disable the HPET (High Precision Event Timer) function.
Option: Enabled (default), Disabled
HPET Mode
This item allows you to select the HPET mode.
Option: 32-bit mode (default), 64-bit mode
Soft-Off by PWR-BTTN
This item determines the delay to stop the software when pushing the power button.
Options: Instant-Off (default), Delay 4 Sec.
Wake Up Control
RTC Wake Up
This item allows you to enable/disable the RTC wake up function.
Options: Disabled (default), Enabled
Hardware Monitor
