MPC-122-K Hardware Hardware Connection Description
3-9

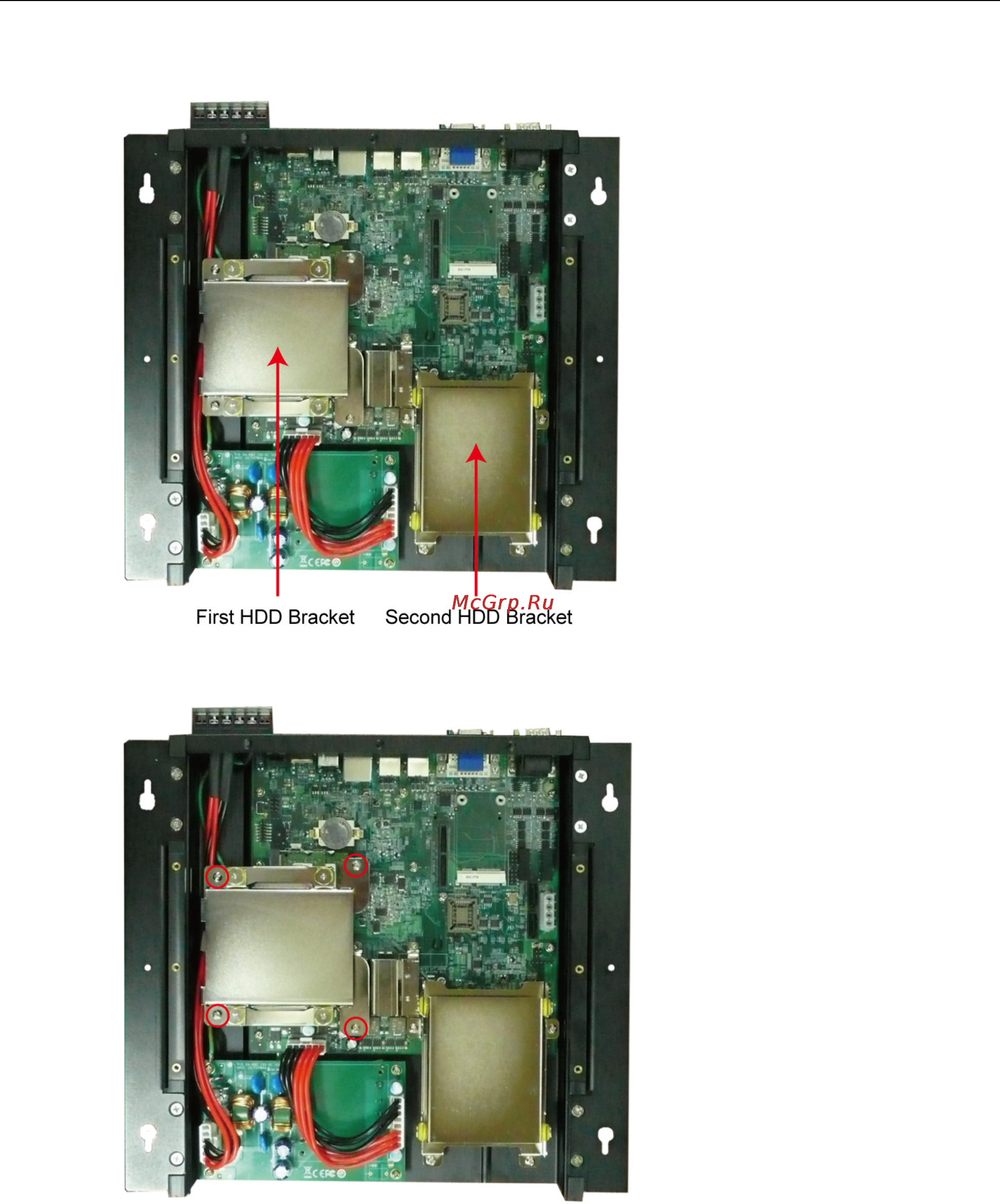

5. Remove the back cover of the computer. You will see two HDD brackets inside. The memory module is
located below the first HDD bracket.
6. Remove the four screws of the first HDD bracket. See the following figure for the specific location of the
screws.
