ioMirror E3210 Introduction
1-6
Software
Utilities
ioMirrorAdmin for Windows
Configuration
Web browser,
ioMirrorAdmin
Power
Power Input
24 VDC nominal, 12 (min) to 48 VDC (max)
Power Consumption
3.26 W @ 24 VDC (typical)
DO Power
24 VDC nominal, up to 48 VDC
Wiring
I/O cable max 14 AWG
Environmental
Operating Temperature
-
10 to 60°C
Storage Temperature
-
40 to 85°C
Altitude
Up to 2000 m
Note: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
Certifications
Shock, Free fall, Vibration
CE Class A, Level 3, Criteria B
FCC Part 15, CISPR (EN55022) Class A
UL508
EC61000
-6-2, EC61000-6-4
Accessories
LCD Display Kit
Hot
-pluggable attachment for IP display, DI/DO status
16 × 2 character display
Backlit screen
5 buttons

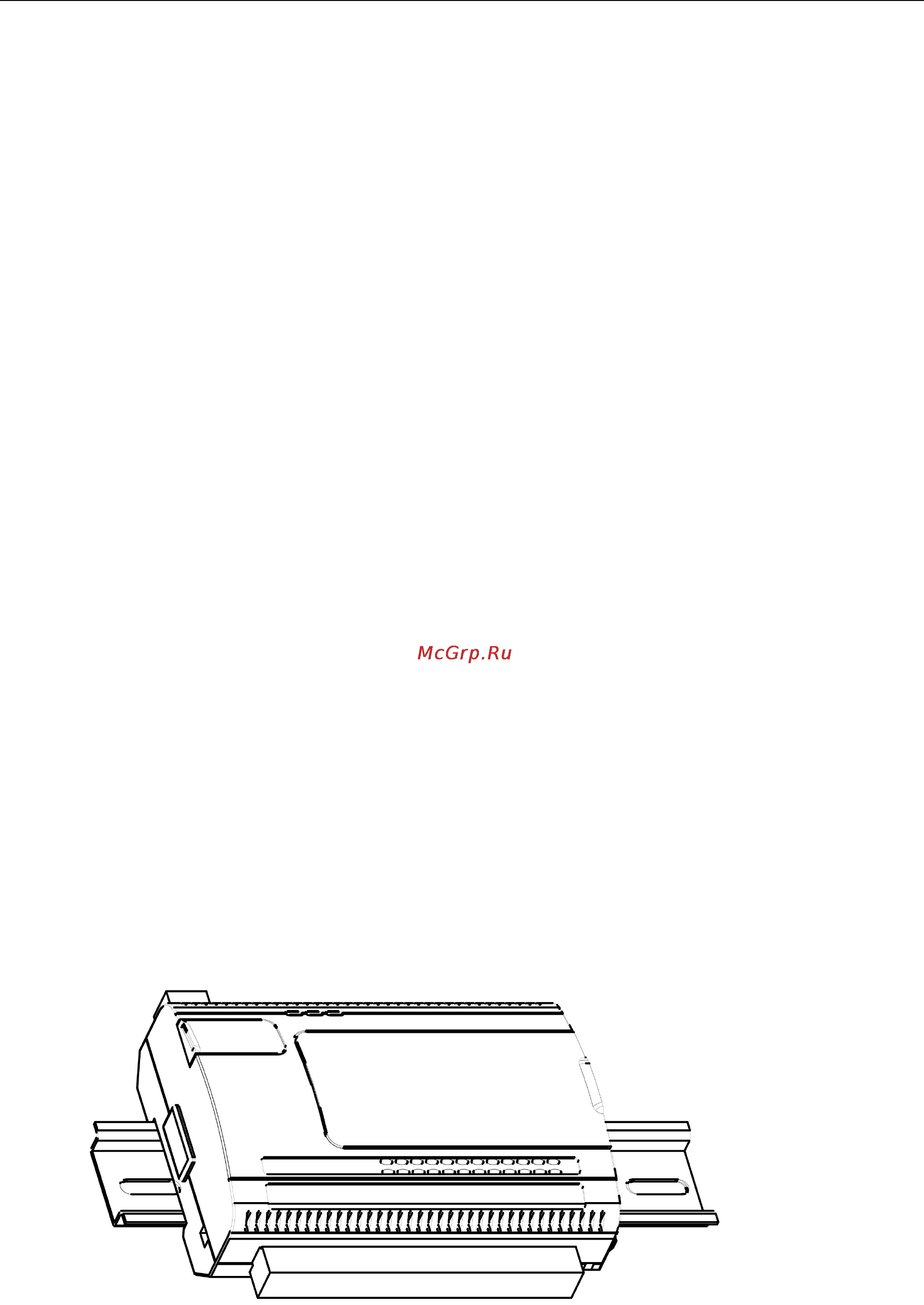

Physical Dimensions (Units = mm)
