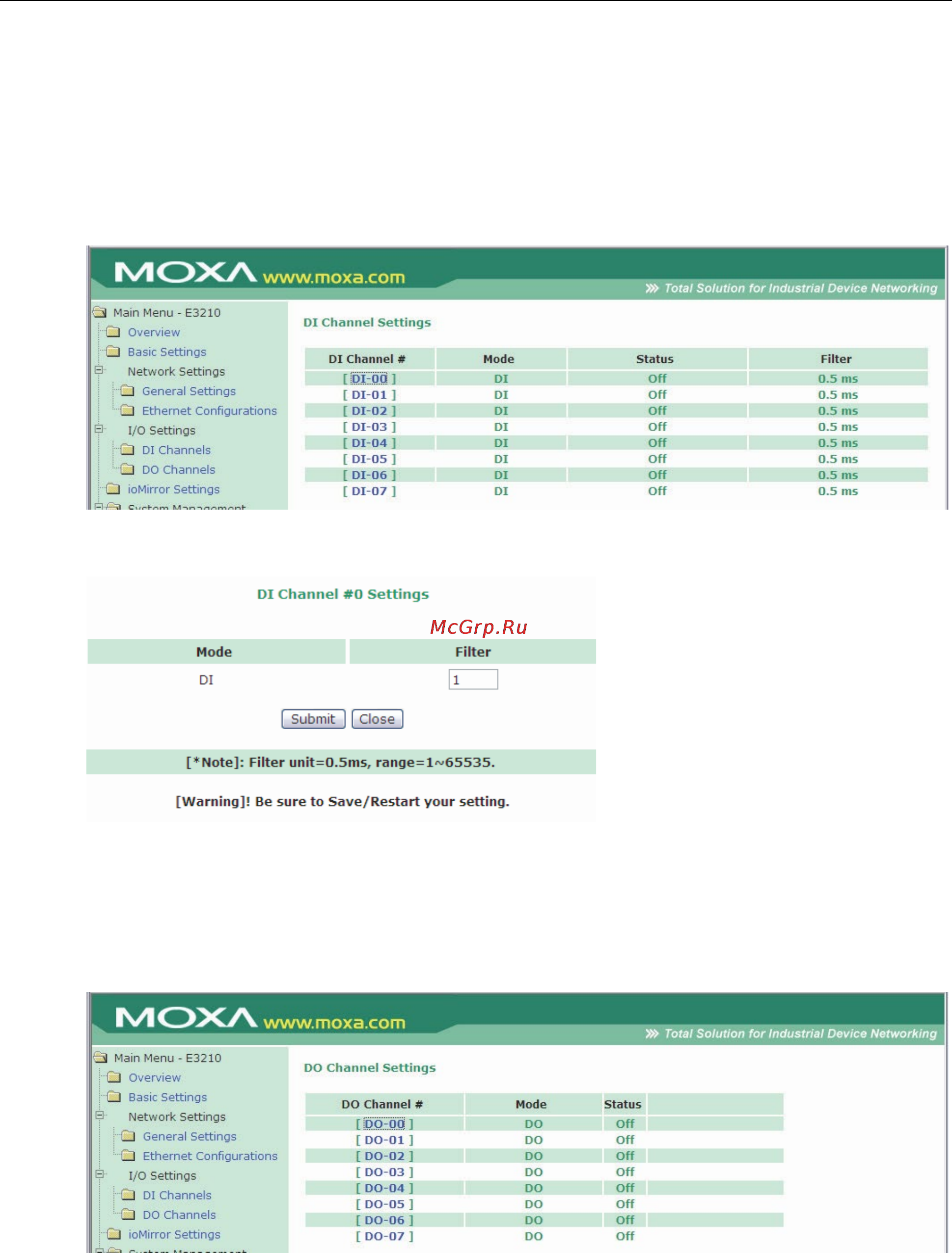

ioMirror E3210 Using the Web Console
3-5
I/O Settings
DI Channels Settings
On the DI Channel Settings page, you may view the status of each DI (digital input) channel. Click a channel
to modify the digital input filter.
The maximum digital input filter value is 65535.
DO Channel Settings
On the DO Channel Settings page, you may configure each DO (digital output) channel by clicking on the
channel.
The Current Setting sets the channel’s current output status in order to test the DO connection. The Power On
Setting sets the channel’s output status when the I/O server is first powered. The Alarm Status Setting sets the
channel’s output status when the I/O server is in an alarm state. The alarm is configured on the ioMirror
Settings page. After changing the DO channel settings, do not forget to Save/Restart your system.
