ioMirror E3210 Hardware Installation
2-2
Connecting the Hardware
Connecting the Power
Connect your 12 to 30 VDC power supply to the ioMirror’s terminal block. If power is properly supplied, the
“Power” LED will light up red until the system is ready.
Grounding the Unit
Connect your grounding line to the wall-mount sockets or DIN-rail.
Connecting to the Network
For initial installation, connect the ioMirror to the same LAN as your host computer, through an Ethernet switch
or hub. Alternatively, you can use a straight-through Ethernet cable to connect the ioMirror directly to the host
computer.

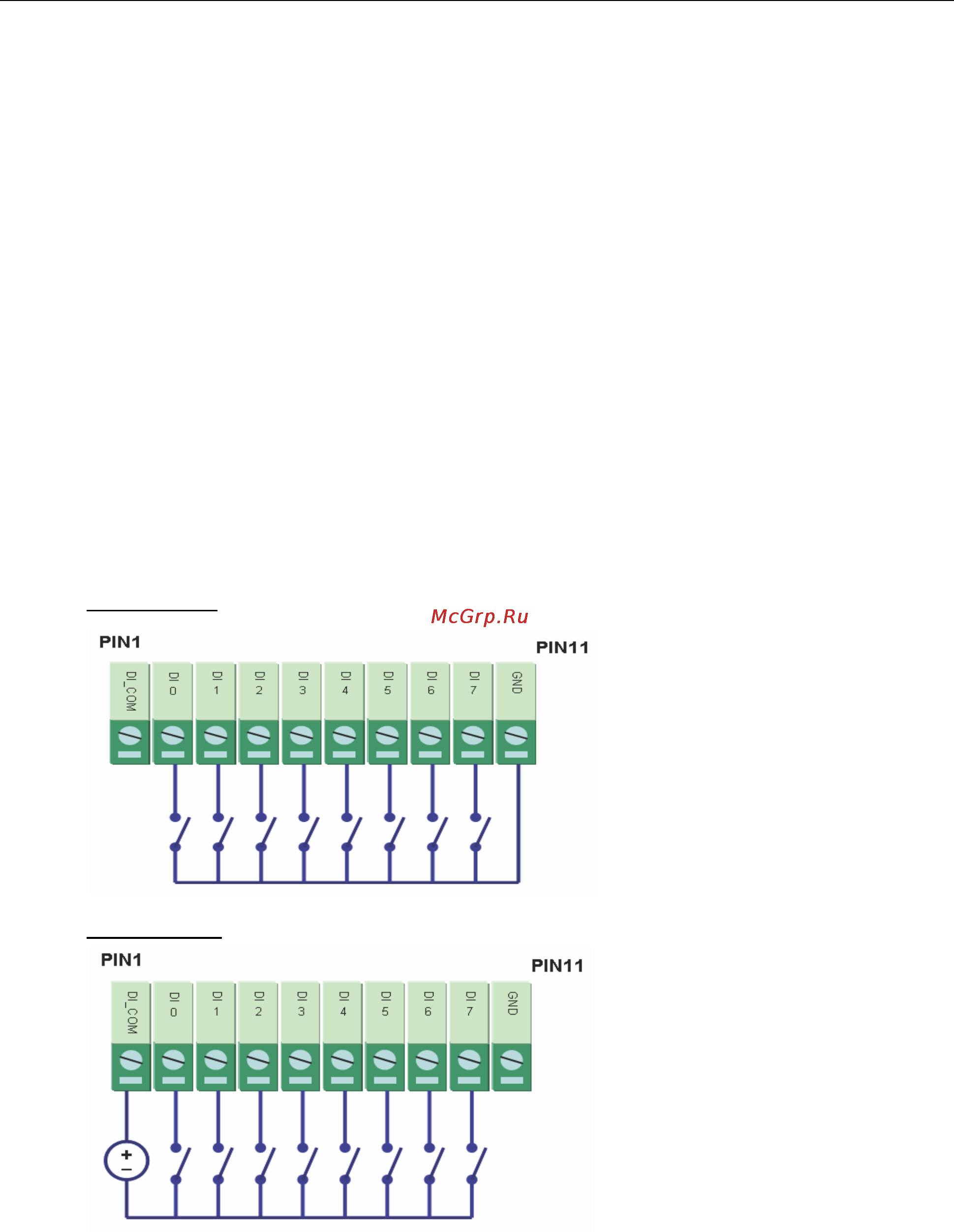

Connecting the I/O Device
DI Dry Contact
DI Wet Contact
