VPort P06-1MP-M12 Introduction

1-5

Product Description

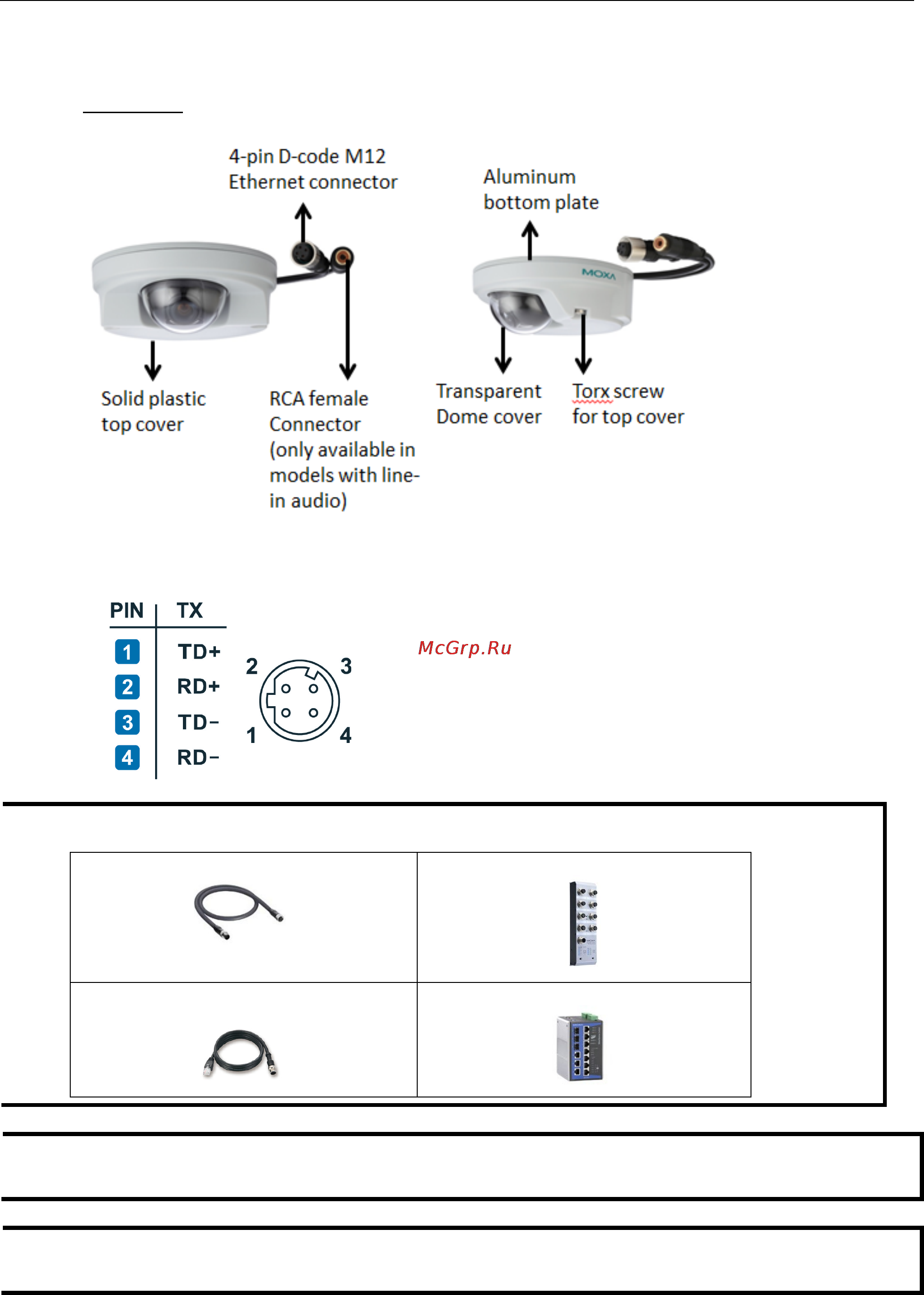

Appearance

• 4-pin D-code M12 Ethernet connector: A 4-pin M12 D-code connecter for both PoE power supply (Mode

A) and Auto MDI/MDI-X Ethernet connection.

NOTE

To connect the VPort P06-1MP-M12 to the network, use an Ethernet cable with a D-code M12 connector and

an M12 PoE switch or RJ45 PoE switch

M12 D-code to M12 D-code cable

M12 PoE Switch (e.g., TN-5508-4PoE)

M12 D-code and RJ45 cable

RJ45 PoE switch (e.g., EDS-P510)

NOTE

The power input rating of the VPort P06

-1MP-

M12 is 48 VDC, 0.12 A, and the maximum power consumption is

approximately 6 W.

NOTE

The equipment is designed for indoors installation only and is not intended to be connected to exposed (outside

plant) networks.

• RCA female connector: The VPort P06-1MP-M12 supports one audio input with RCA female connector.

The audio will be digitized and compressed as an audio stream for network tramission with the video

stream.
