VPort P06HC-1MP-M12 Introduction

1-6

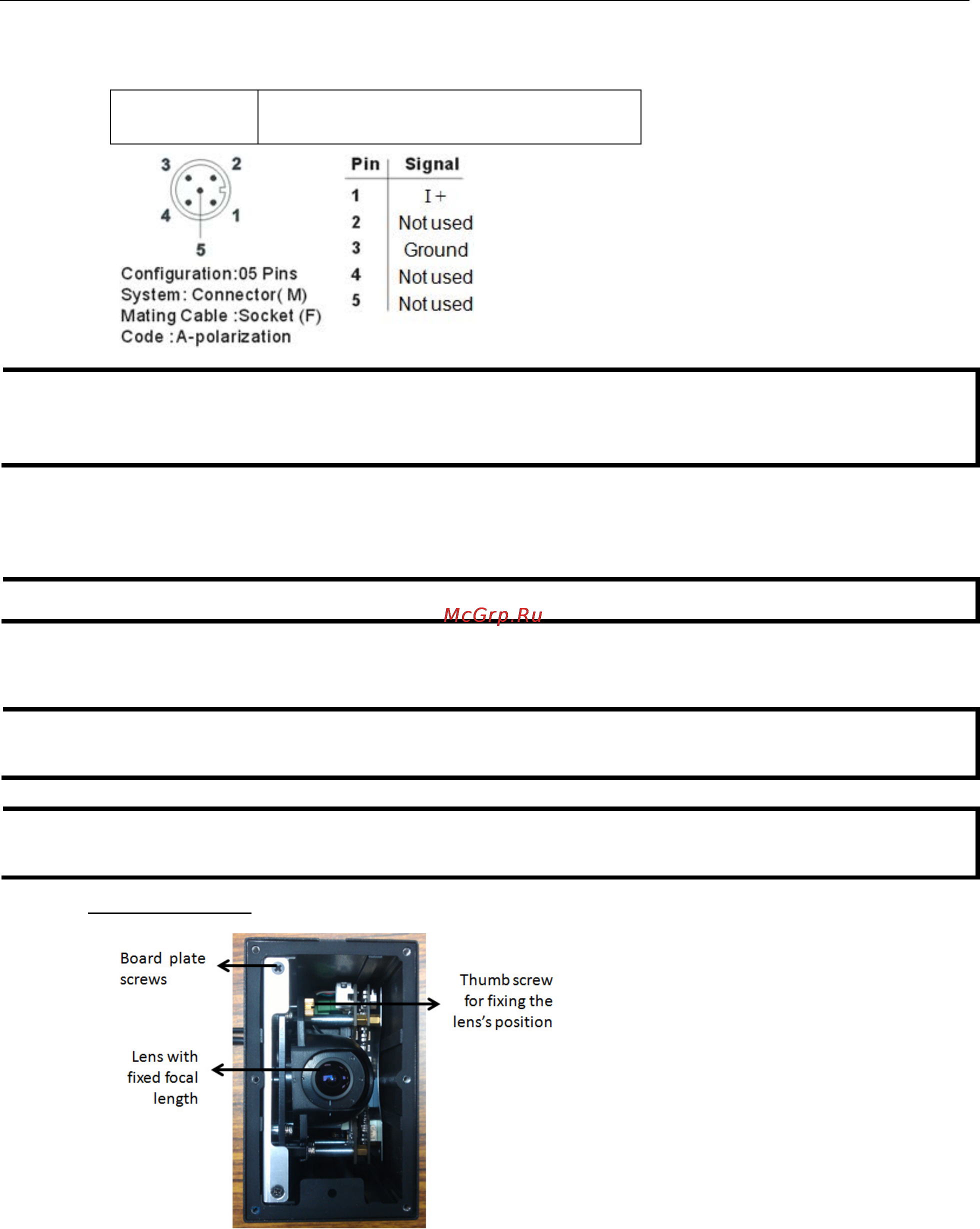

• 5-pin M12 male connector: The VPort P06HC-1MP-M12 supports one digital input with 5-pin M12 male

connector. This DI is used for connecting with external device for triggering an event or alarm.

Digital input Max. 8 mA,

Low: +13 V to +30 V; High: -30 V to +3 V

NOTE

This digital input is for connecting with an external device, such as a button, for triggering an event and alarm.

The VPort P06HC

-1MP-M12 can send messages via an IP network to the management software at a remote

site.

• Built-in microphone: The VPort P06HC-1MP-M12 is equipped with a built-in microphone to receive

external sounds. The sound will be digitized and compressed as an audio stream for network transmission

with the video stream.

NOTE

The effective distance for the VPort P06HC

-1MP-M12’s built-in microphone is 100 cm.

• Removable lens cover: The VPort P06HC-1MP-M12 is designed with a removable cover for fine-tuning the

lens angle manually. The user can remove this lens cover after loosening the 6 torx screws.

NOTE

The VPort

P06HC-1MP-

M12’s optical lens cover is coated with a high performance waterproof coating. Please

use the scrubbing cloth to light clean the cover.

NOTE

The color of the lens cover can be customized based on your installation environment. Please contact

your

Moxa sales representative for customization service.

Inside the camera

• Thumb screw for fixing the lens’s position: To tune the lens’s position, loosen the thumb screw, and

then retighten it after the position tuning is done. Thumb screw for fixing the lens position.

• Lens with fixed focal length: The VPort P06HC-1MP-M12 series supports a fixed focal-length lens.

Choose the appropriate focal-length lens based on the viewing angle and object distance.

• Board plate screws: these 2 screws are for loosening the board plate, which can be pulled out for tuning

the camera lens position.
