VPort P06HC-1MP-M12 Getting Started

2-5

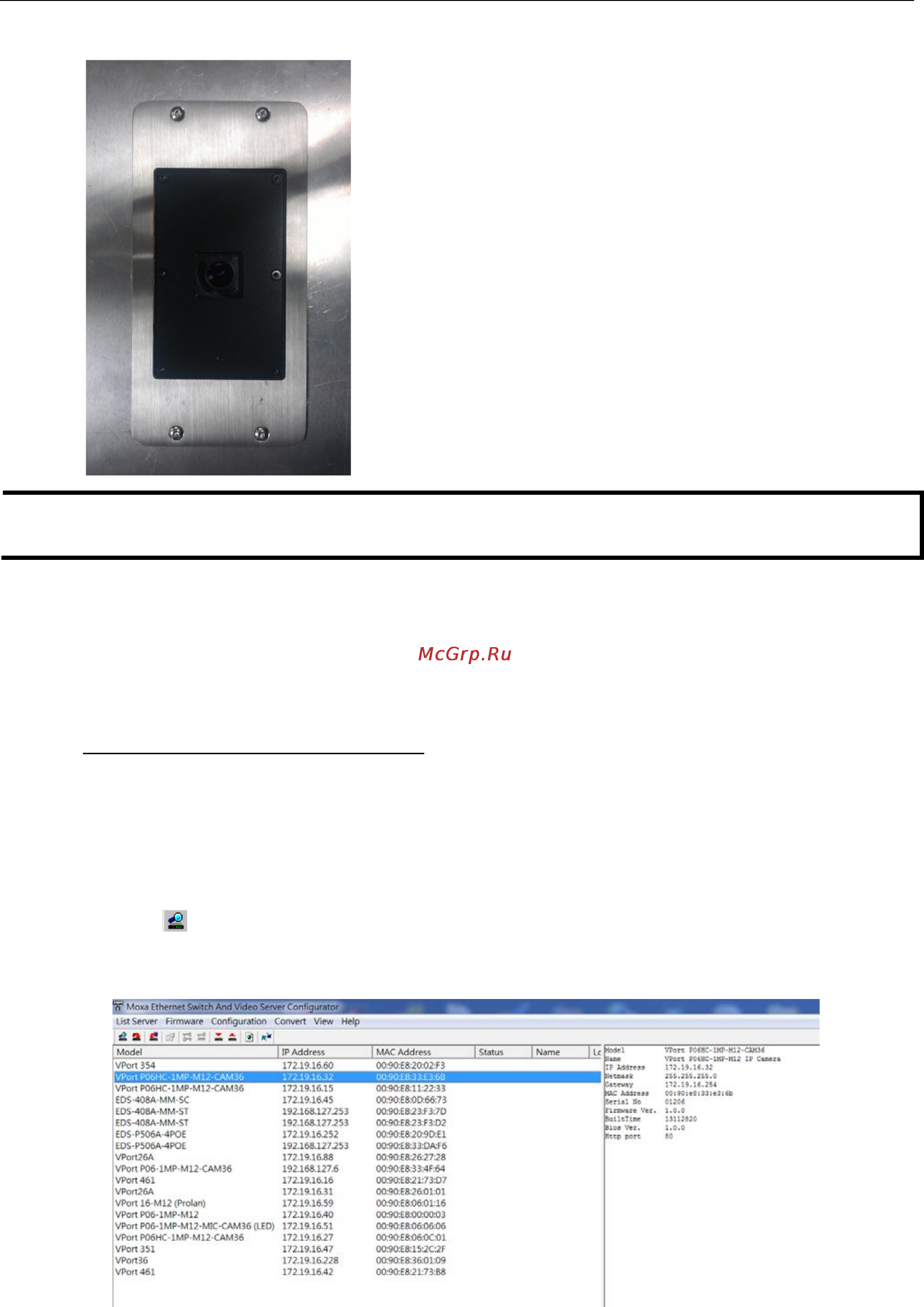

Step 6: Mount the VP-FD1’s front decorative plate on the wall.

NOTE

The type and color of VP

FD1 can be customized by request. Please contact a Moxa sales representative for this

customization service.

Software Installation

Step 1: Configure the VPort P06HC-1MP-M12’s IP address

When the VPort P06HC-1MP-M12 is first powered on, the POST (Power On Self Test) will run for a few moments

(about 30 seconds). The network environment determines how the IP address is assigned.

Network Environment with DHCP Server

For this network environment, the unit’s IP address will be assigned by the network’s DHCP server. Refer to the

DHCP server’s IP address table to determine the unit’s assigned IP address. You may also use the Moxa VPort

and Ether Device Configurator Utility (edscfgui.exe), as described below:

Using the Moxa VPort and EtherDevice Configurator Utility (edscfgui.exe)

Run the edscfgui.exe program to search for the VPort. After the utility’s window opens, you may also click on the Search

button to initiate a search.

When the search has concluded, the Model Name, MAC address, IP address, serial port, and HTTP port of the VPort will be

listed in the utility’s window.

Users can double click the selected VPort, or use the IE web browser to access the VPort’s web-based

manager (web server).
