VPort P06HC-1MP-M12 Getting Started
2-3

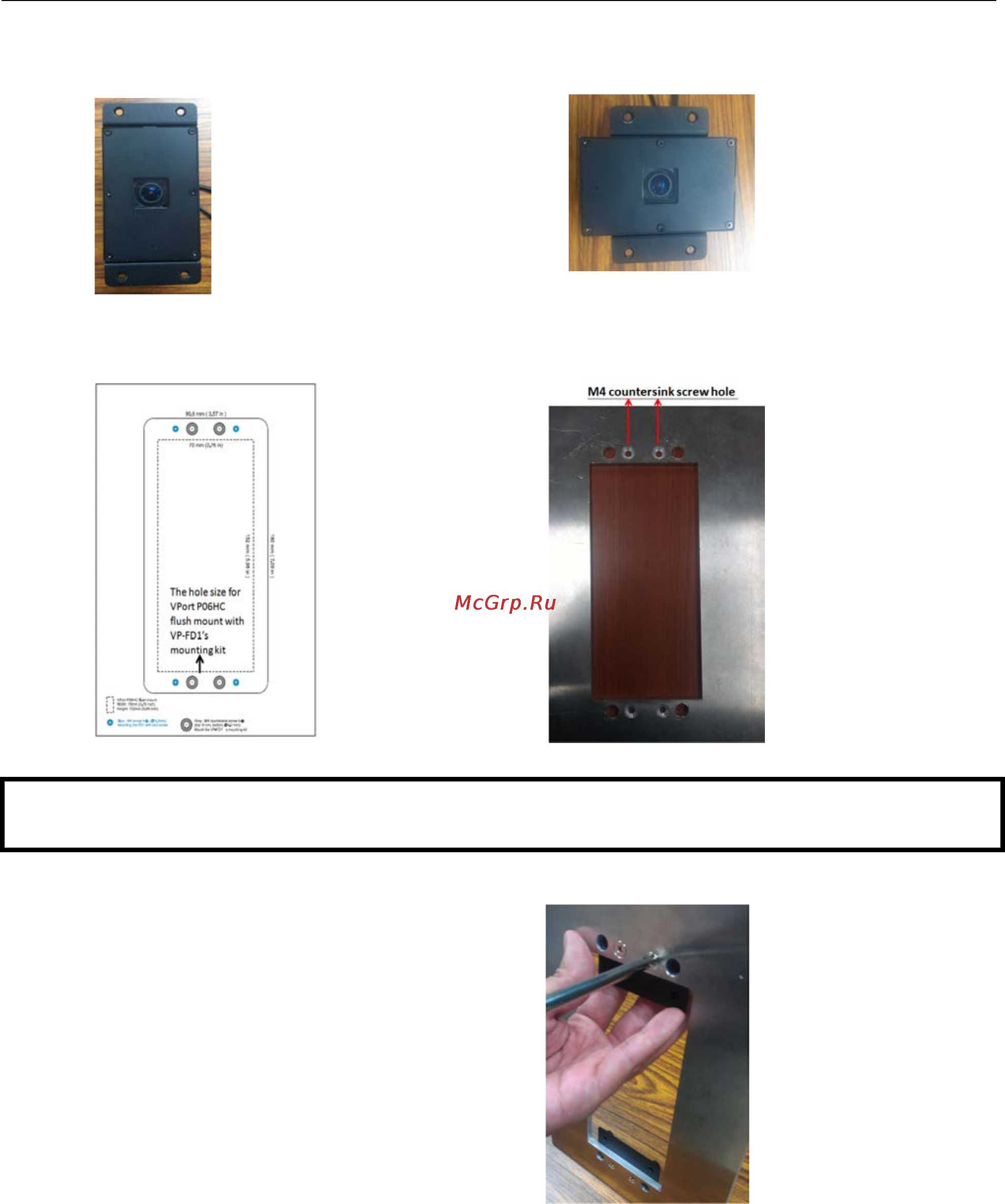

Step 1: Screw the 2 L-type installation plates onto the VPort P06HC.
Vertical mountable
Horizontal
mountable
Step 2: Use the installation sticker to drill the holes for flush-mounting the VPort P06HC with the
VP-FD1.
NOTE
The screw holes for mounting the 2 VP
-FD1’s mounting kits are countersunk holes with 8 mm top diameter and 4.3 mm
chamfer. Take this into consideration when drilling these 4 screw holes.
Step 3: Install the VP-FD1’s mounting kit.
Screw 4 nylock
M4 screws on the 4 countersunk screw
holes with 2 VP
-FD1’s mounting kits.
