VPort ONVIF Profile S System Configuration

4-12

DHCP Option 66/67 for auto configuration (not supported by all VPorts)

If you need to install a large number of devices, it can be extremely time consuming to configure each of the

many devices one by one. DHCP Opt 66/67 provides a mechanism whereby configurations can be saved on a

TFTP server, and then once a new device is installed, the configurations can be downloaded to this new device

automatically. Follow the steps below to use the Opt 66/67 auto-configuration function. We use VPort 16-M12

to illustrate.

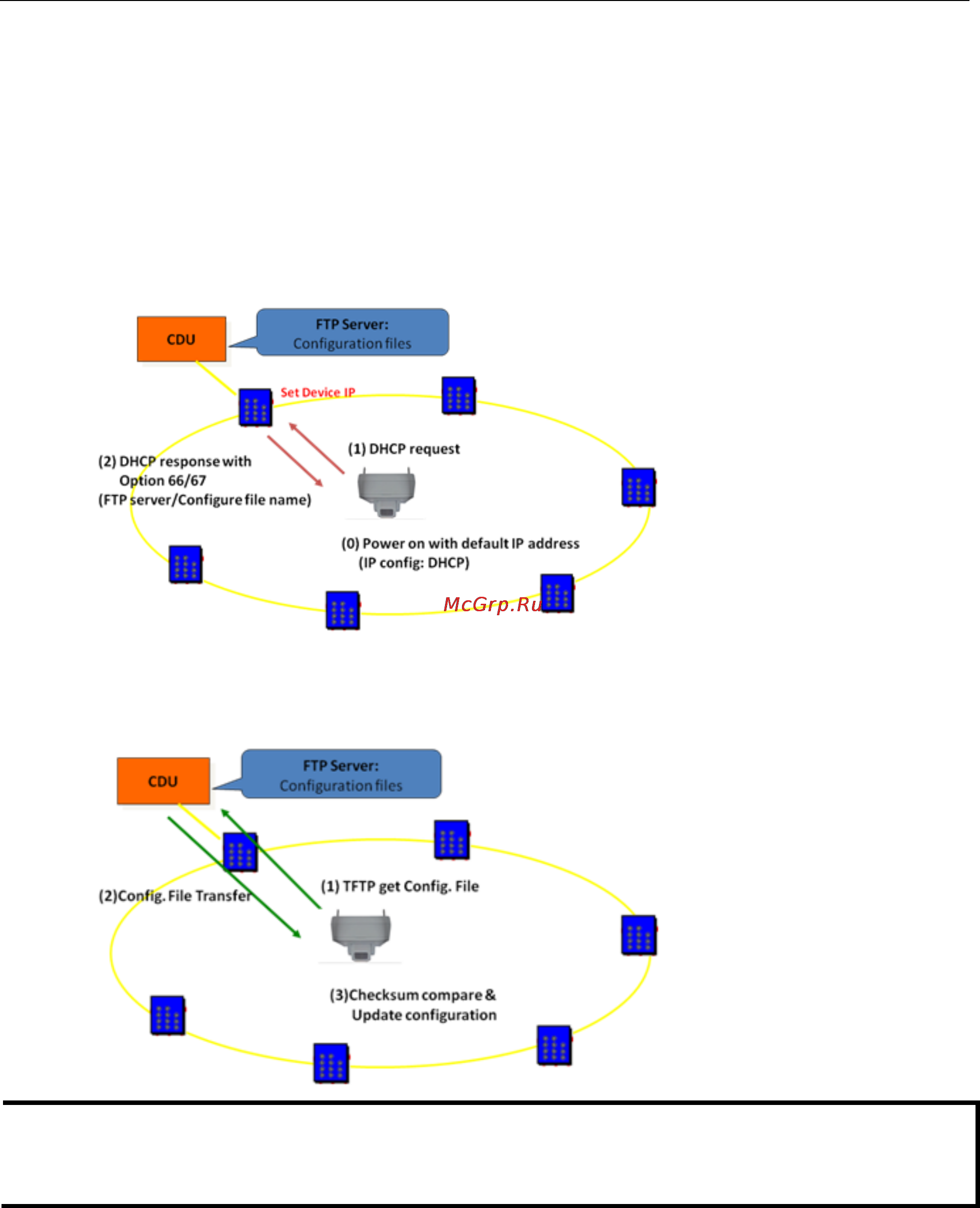

Step 1:

When the VPort 36-1MP enables the auto-configuration function, it will ask for an IP address from the DHCP

server, and the path of the TFTP server and configuration file.

Step 2:

Once the VPort 36-1MP completes the IP settings, it will acquire the configuration file from the TFTP server, and

then check if this configuration file is the right one or not.

NOTE

For the auto

-configuration function to work, the system should

1. Have a DHCP Server that supports DHCP Opt 66/67 in the network switches and routers.

2. Have a TFTP server that supports the TFTP protocol.
