VPort ONVIF Profile S System Configuration

4-30

PTZ (not supported by all VPorts)

Some VPorts support PTZ (PAN, TILT, ZOON) control, with either a built-in PTZ mechanism, a digital Zoom

function, or external PT scanner.

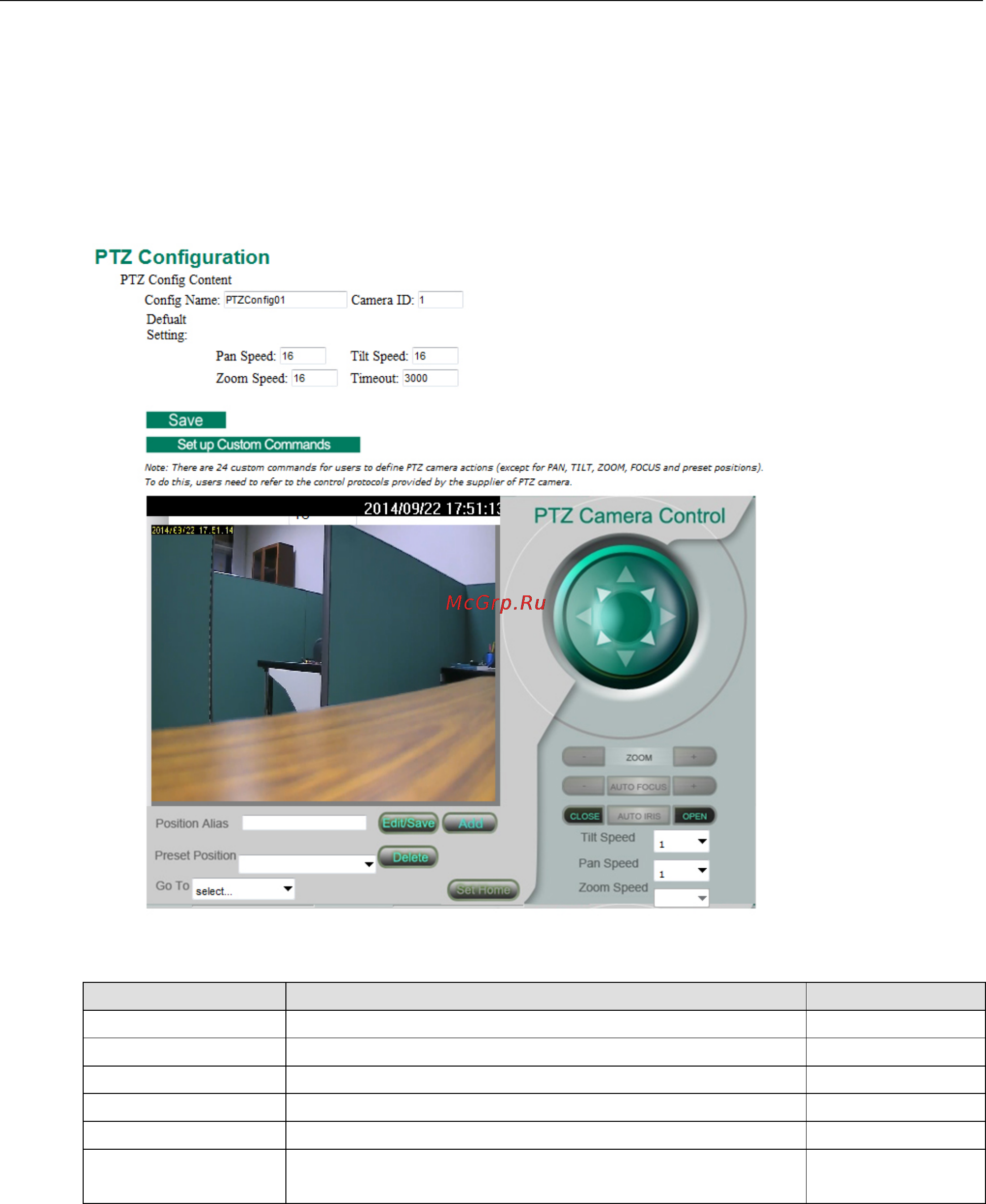

PTZ Configuration

PTZ config content

Setting Description Default

Config Name Configure the name of these PTZ settings PTZConfig01

Camera ID ID of the PTZ camera. 1

Pan Speed Speed of the PAN motion 16

Tilt Speed Speed of the TILT motion 16

Zoom Speed Speed of the Zoom motion 16

Timeout Configure the timeout period when there is no response after a

command is sent

3000 (sec)

Set Up Custom Commands

VPort products provide 24 custom commands, in addition to the general pan, tilt, zoom, and preset functions,

which are also shown on the PTZ Control Panel. Administrators can click on Setup Custom Commands to

configure the commands, and refer to the manual enclosed with the attached PTZ camera to set up

frequently-used functions. Commands should be entered in ASCII format. The VPort will translate the

commands into binary code and then send the data out through the serial port. For instance, the text string

8101ABCDEF will be translated into five bytes of hexadecimal: 81, 01, AB, CD, and EF. The maximum length of

a command string is 60, which is equivalent to 30 hexadecimal bytes. The Display string is for the text on the

command buttons and should be fewer than 8 characters. If Custom Camera is selected, more PTZF commands

will be available.
