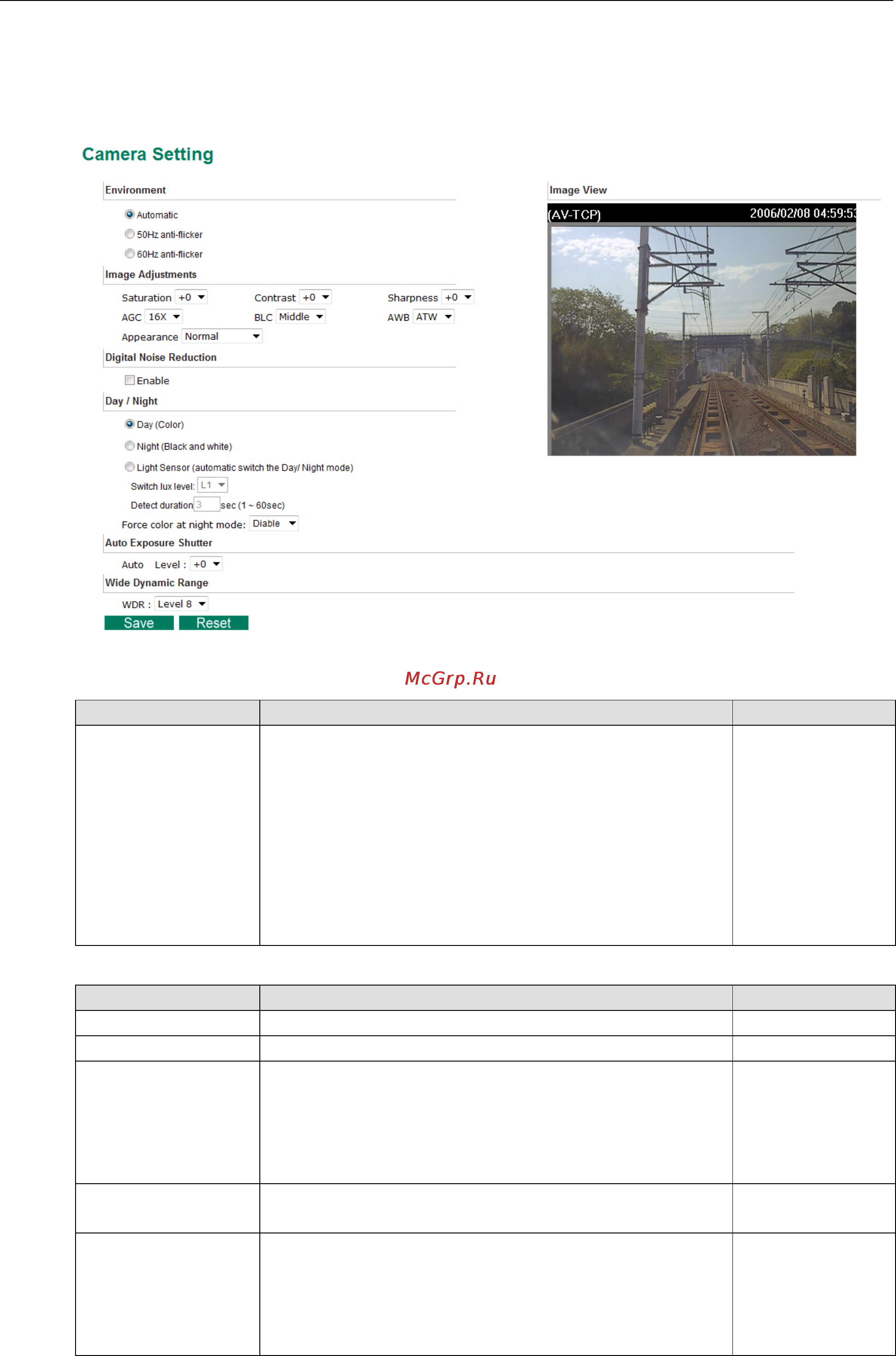

Moxa VPort P16-1MP-M12-CAM80-CT [37/64] Camera setting

VPort ONVIF Profile S System Configuration

4-22

Camera Setting

Different environments require different camera settings to ensure acceptable image quality.

Environment

Setting Description Default

Environment Choose the kind of environment the VPort camera will be

installed in; parameters will be optimized depending on which

environment is specified.

Automatic: This setting is usually for cameras used in an

outdoor environment.

50 Hz anti-flicker: This setting should be enabled when the

camera is installed in a 50 Hz power frequency environment.

60 Hz anti-flicker: This setting should be enabled when the

camera is installed in a 60 Hz power frequency environment.

Automatic

Image Adjustment

Setting Description Default

Saturation Select a value from -4 to +6. 0

Contrast & Sharpness Select a value from -4 to + 4 0

Auto Gain Control

(AGC)

The AGC function produces clear images in low light conditions

The setting controls an amplifier that is used to boost the video

signal when the light dims so to increase the camera’s

sensitivity. In some bright environments

, the amplifier may be

overloaded, which may distort the video signal.

16x

Back light control (BLC)

This function corrects the exposure of o

bjects that are in front

of a bright light source.

Off

AWB

(Auto White Balance)

For most conditions, we suggest using ATW to allow the camera

to automatically adjust the white balance. We suggest using

AWB when your camera is monitoring a scene in which one

color occupies most of the view.

If you like to use AWB, follow these steps:

ATW
