VPort ONVIF Profile S System Configuration
4-21
Setting Description Default
Operation mode Choose the LLDP operation mode: Disabled, Transmit only,
Receive only, or Transmit and receive.
Transmit and
receive
Transmit interval Sets the transmit interval of LLDP messages, in seconds. 30
Video

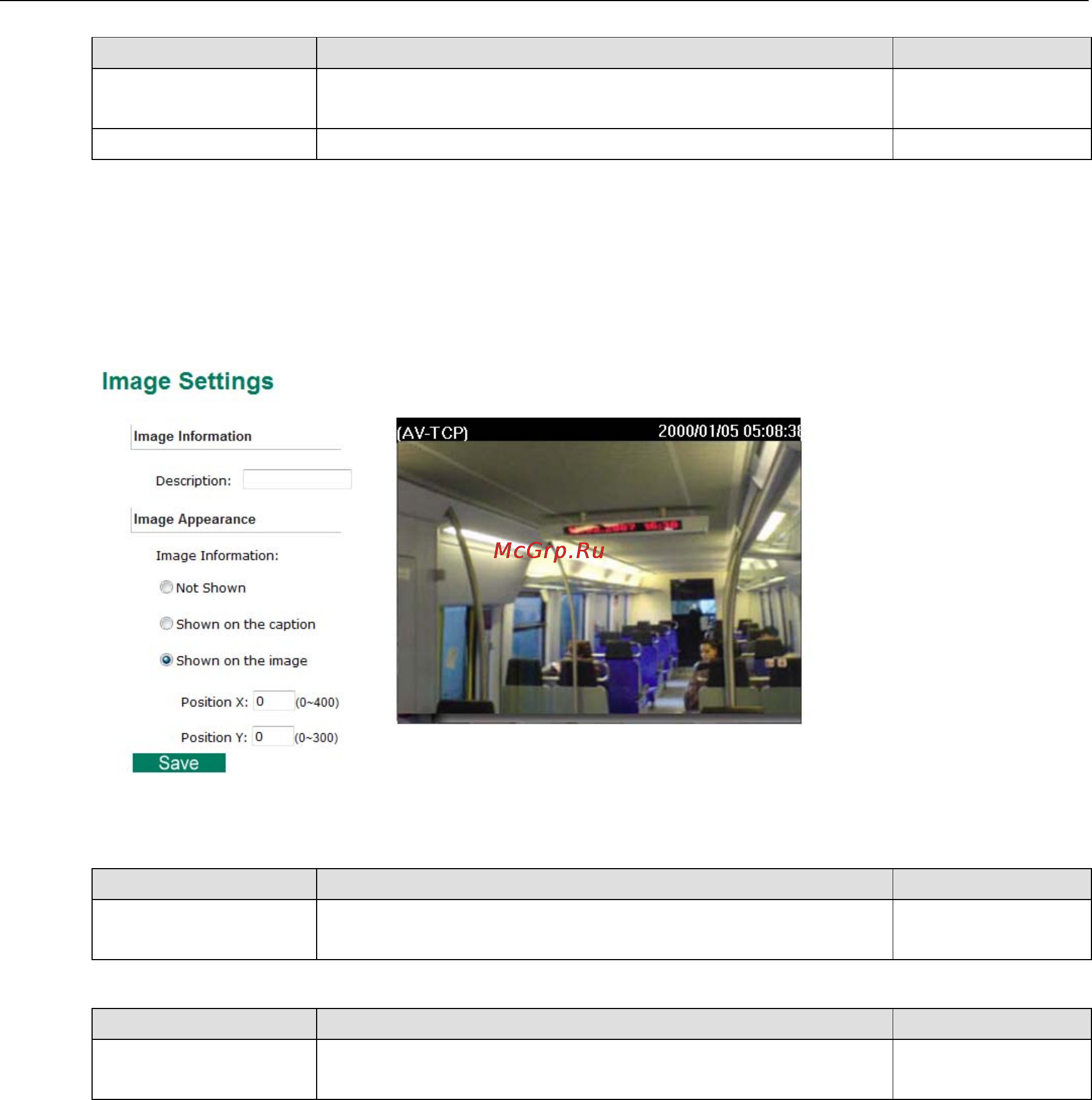

Image Settings
Image Information Setting
Setting Description Default
Description
(max. of 14
characters)
The customized description shown on the caption to identify
this video camera.
None
Image Appearance Setting
Setting Description Default
Image Information Determines how image information is shown. Options are:
Not
Shown, Show on the Caption, and Show on image
Not Shown
Image Appearance Position
The position of the Image Appearance window can be changed by configuring Position X (0 to 400) and Position
Y (0 to 300).
