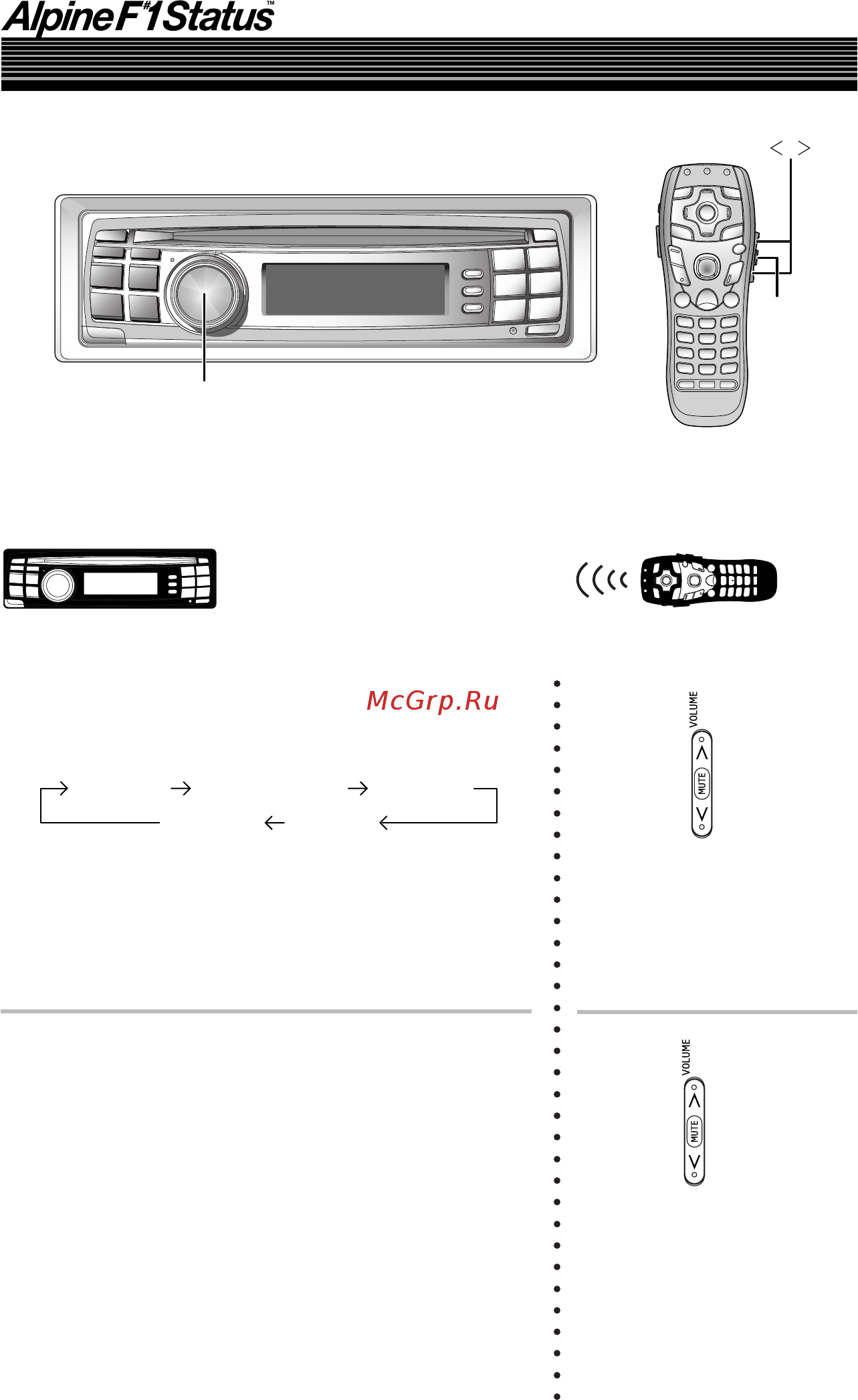

Alpine DVI-9990R [15/134] Rotary encoder
![Alpine DVI-9990R [15/134] Rotary encoder](/views2/1205303/page15/bgf.png)
Basic Operation
12-EN
• With the remote control
only the volume level can
be adjusted.
Adjusting the Volume/Balance (Between Left and
Right)/Fader (Between Front and Rear)/Defeat
1 Press Rotary encoder repeatedly to choose
the desired mode.
Each press changes the modes as follows:
Volume : –
∞
(MIN) ~ 0dB (MAX)
Balance : L15 ~ R15
Fader: R15 ~ F15
Subwoofer: 0 ~ 15
Defeat: ON/OFF
• The actual displayed contents are different.
2 Tur n Rotary encoder until the desired sound
is obtained in each mode.
Setting defeat ON will turn MX of PXI-H990
side OFF and returns the EQ, etc. settings to
their initial values. When the DAI-C990 is
connected, DEFEAT is not displayed.
• * When the PXI-H990 is connected:
The subwoofer level can be adjusted if the sub-
woofer is connected, and the subwoofer mode is set
to ON in the speaker settings on the PXI-H990.
When the DAI-C990 is connected:
The subwoofer level can be adjusted when the
subwoofer is connected.
• If Rotary encoder is not pressed within 5 seconds
after selecting the BALANCE, FADER, DEFEAT or
SUBWOOFER mode, the unit automatically returns to
the VOLUME mode.
VOLUME
FADERDEFEAT
SUBWOOFER
*
BALANCE
• With the remote control
only the volume level can
be adjusted.
MUTE
VOLUME
/
Rotary encoder
It is first necessary to set the speaker if combining with the Multimedia Manager (PXI-H990).
Refer to “Setting the Speakers” in the PXI-H990 Owner’s Manual.
