DVD Audio/DVD Video/Video CD
48-EN

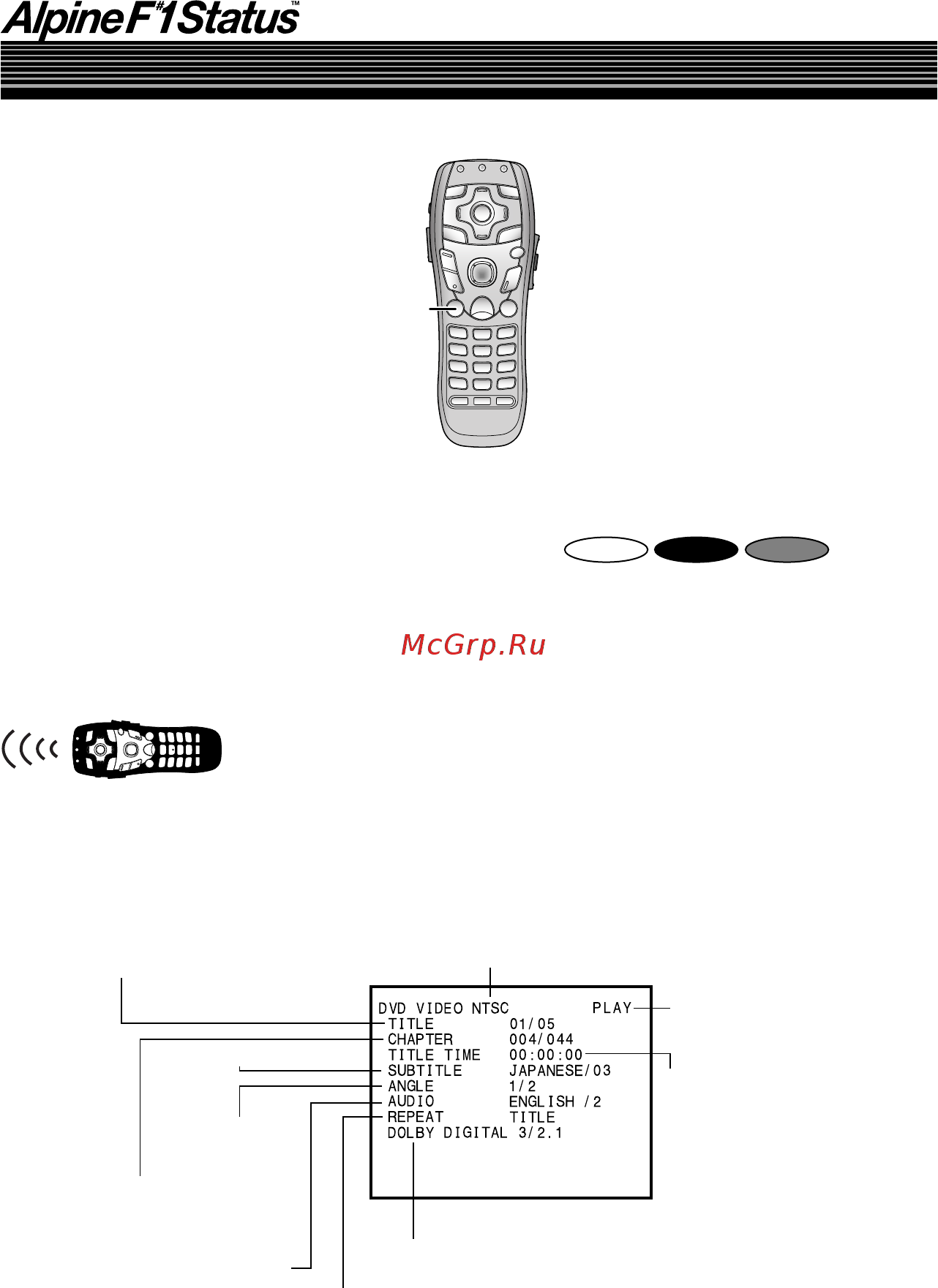

Displaying the disc status
You can display and check the status of a DVD video disc (title number, chapter number etc.), a
DVD audio disc (group number, track number etc) or a video CD (track number etc.) being played
on a monitor.
DVD-A DVD-V
Video CD
1 During playback, press TITLE.
The playback status is displayed.
TV system (NTSC)
Current title
number
Current chapter
number
Audio recording system
<An example of a DVD Video display>
Title playback
time
(Elapsed time)
Current
operation mode
Current angle
number
Current subtitle language
Current audio
language
Repeat setting
(Repeat is set to off in initial settings)
TITLE
The following operation is performed with the supplied
remote control.
