8
English ...
Introduction

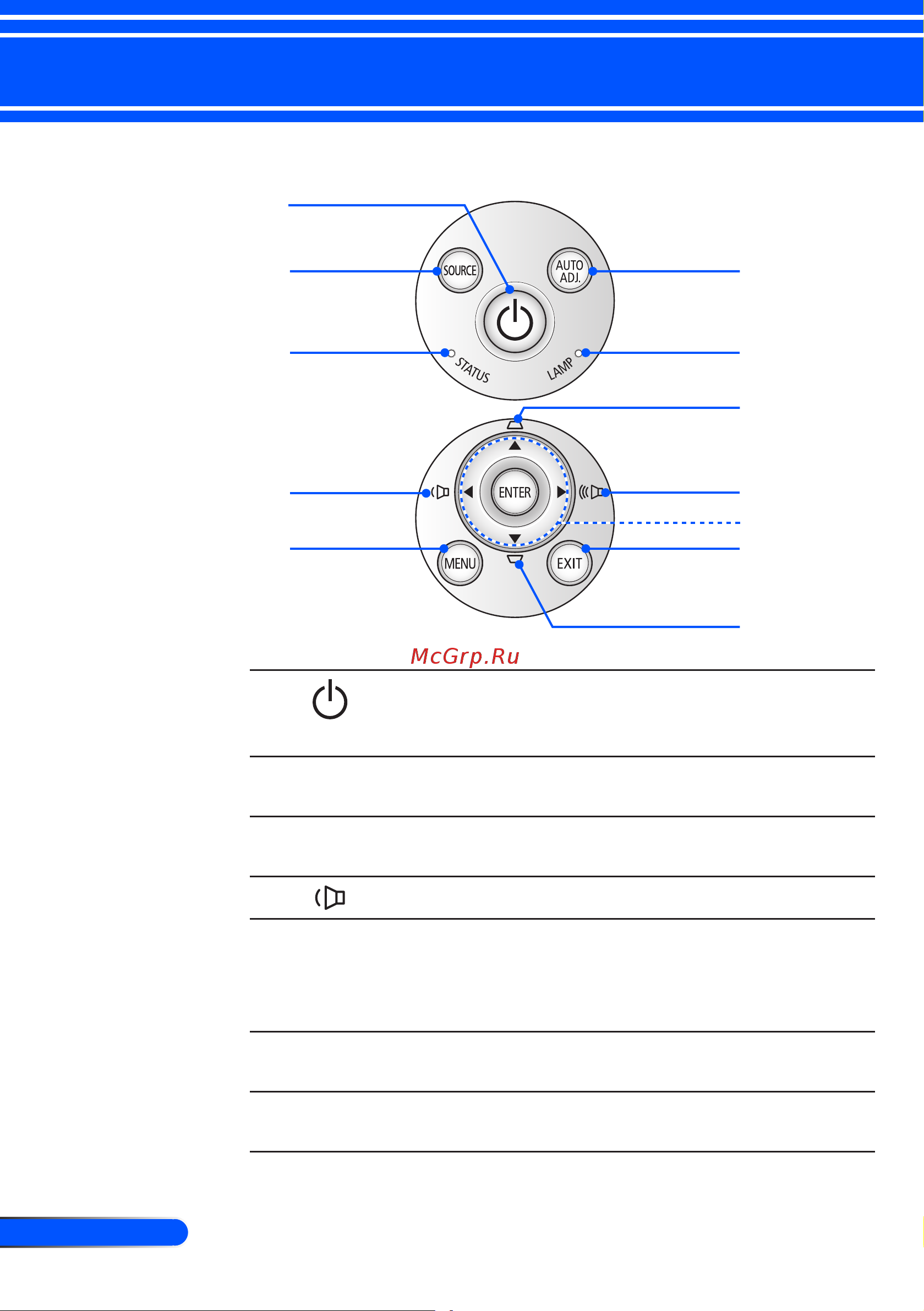

Control Panel
2
3
6
7
1
10
8
8
11
9
5
4
1 POWER ON/
OFF and LED
indicator
Power on the projector. Refer to
the “Power On/Off the Projec-
tor” section on pages 25-26.
2 SOURCE Press “SOURCE” to select an
input signal.
3 STATUS LED Indicate the projector’s tempera-
ture status.
4 VOLUME - Decrease speaker volume.
5 MENU Press “MENU” to launch the
Onscreen display (OSD), back to
the top level of OSD for the OSD
main menu operation
6 AUTO ADJ. Automatically synchronize the
projector to the input source.
7 LAMP LED Indicate the projector’s lamp
status.
