27
... English
Installation

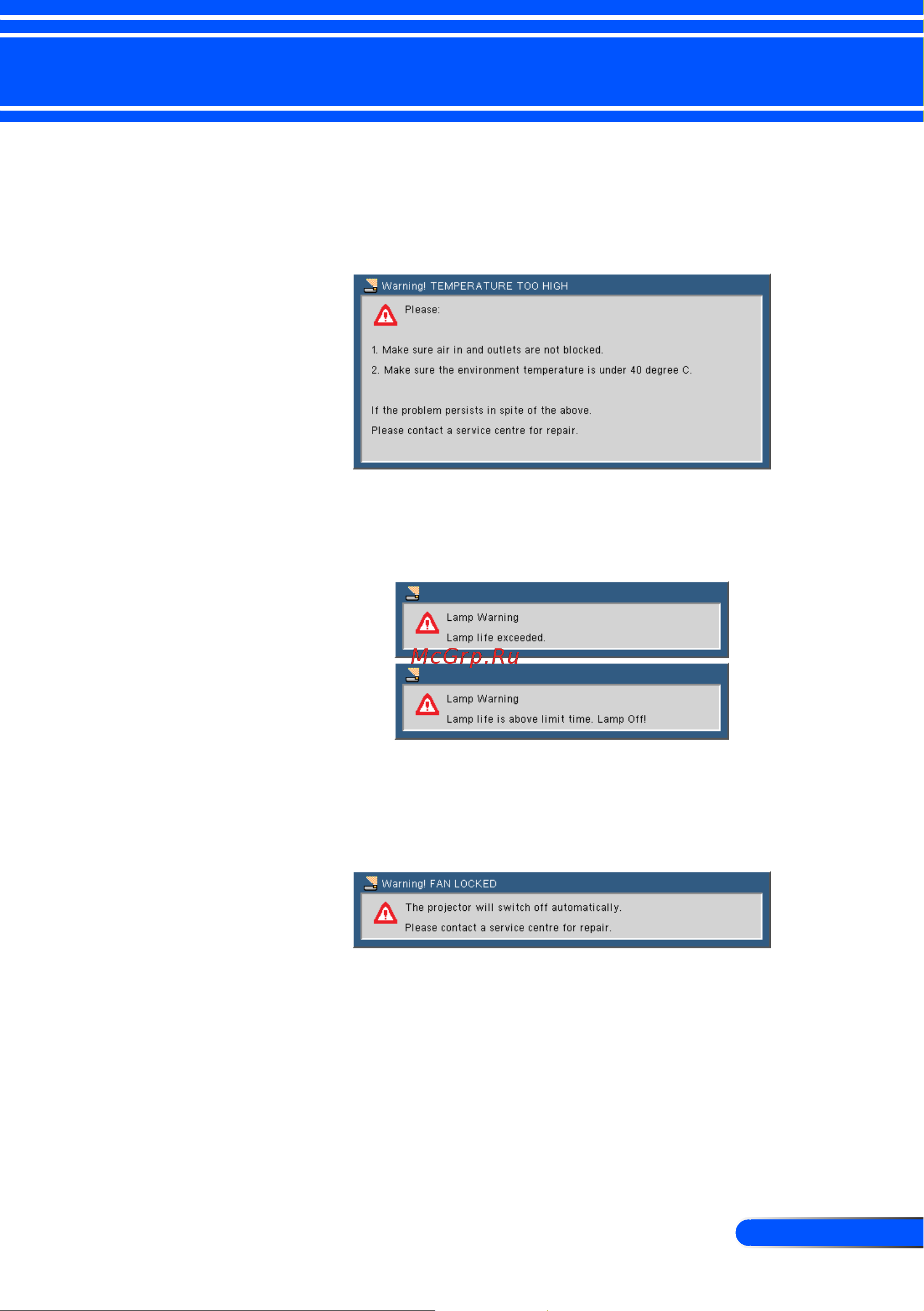

Warning Indicator
When the “STATUS” LED indicator ashes red, it indicates
the projector has overheated. The projector will automati-
cally shut itself down.
When the “LAMP” LED indicator turns red and the message
below displays on-screen, the projector has detected that the
lamp is approaching its end of life. When you see this mes-
sage, change the lamp as soon as possible.
When the “STATUS” LED indicator ashes red and the
message below displays on-screen, it indicates the fan failed.
Stop using the projector and disconnect the power cord from
the electrical outlet, then contact your local dealer or our
service center.
