General Care
Xerox Phaser 3320DN/3320DNI
User Guide
89
• An environment with salty air.
• Do not store consumables directly on the floor.
• Do not touch the surface of the photosensitive drum in the print cartridge.
• Do not expose the print cartridge to unnecessary vibrations or shock.
• Never manually rotate the drum in the print cartridge, especially in the reverse direction; this can
cause internal damage and toner spillage.
Replacing the Print Cartridge
The print cartridge contains components that are sensitive to light, temperature, and humidity. Follow
the recommendations provided to ensure the optimum performance, highest quality, and longest life
from your new print cartridge.
Store the cartridge in the same environment as the printer it will be used in; this should be in controlled
office temperature and humidity conditions. The print cartridge should remain in its original, unopened
package until installation. If the original packaging is not available, cover the top opening of the
cartridge with paper and store in a dark cabinet. Opening the cartridge package prior to use
dramatically shortens its operating life.
When the print cartridge is empty the Replace new cartridge message appears on the display screen. At
this stage the print cartridge needs to be replaced. If not replaced, the machine will stop printing.
Replace the print cartridge using the following instructions.

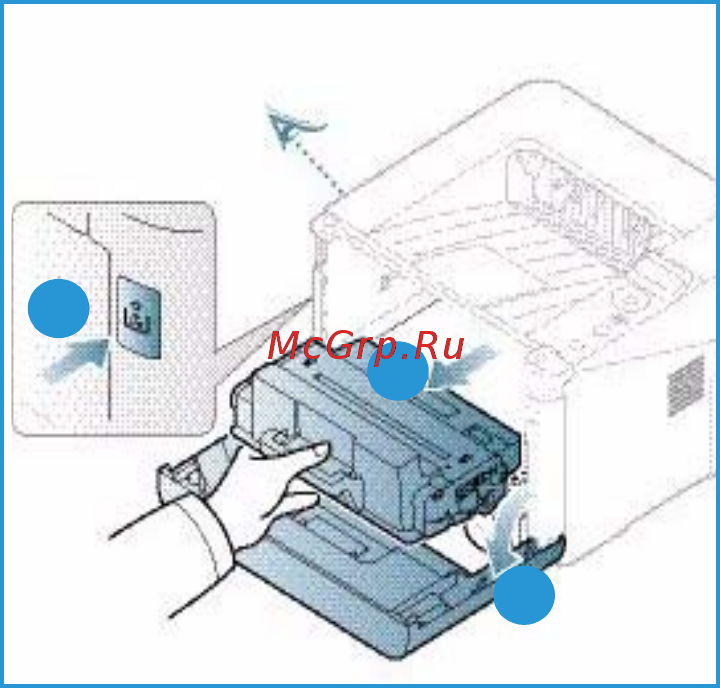

1. Press the release latch on the left side of the machine.
2. Open the front door.
3. Pull the print cartridge out.
1
2
3
