2 Installation manual
English
Front/Rear panel features
1. Optical drive bay cover
2. Power button (
)
3. HDD LED (
)
(lights up when
the hard disk drive operates)
4. Front panel cover
5. Memory Stick/
Memory Stick Pro card slot ( )
6. CompactFlash
®
/
Microdrive
™
card slot ( )
7. Secure Digital/
MultiMediaCard slot ( )
8. Optical drive eject button ( )
9.* • USB 2.0 ports (
)
• S/PDIF In port (
)
• 4-pin IEEE 1394a port (
)
• Headphone port (
)
• Microphone port (
)
10. Expansion slot metal brackets
11. Expansion slots
12.* Optical S/PDIF Out port (
)
13. Power connector
14.** Voltage selector switch
15. Power switch
16.* • PS/2 keyboard port (
)
• PS/2 mouse port (
)
• VGA port (
)
• DVI-D port (
)
• E-SATA port (
)
• LAN (RJ-45) port (
)
• Serial (COM1) port (
)
• USB 2.0 ports (
)
• 6-pin IEEE 1394a port (
)
• Coaxial S/PDIF Out port (
)
•Audioportscongurations:
• 6-channel
L
IN
E
IN
FR
O
N
T
M
IC
IN
• 8-channel
R
E
A
R
S
P
K
L
IN
E
IN
FR
O
N
T
M
IC
IN
S
ID
E
S
P
K
C
T
R
BA
S
S
NOTE: *The front/rear panel ports and their locations may vary, depending on the
model of your system. For detailed descriptions, refer to the system User Guide.
NOTE: **The system’s power supply unit has a 115V / 230V voltage selector switch
located beside the power connector. Use this switch to select the appropriate system
input voltage according to the voltage supply in your area.

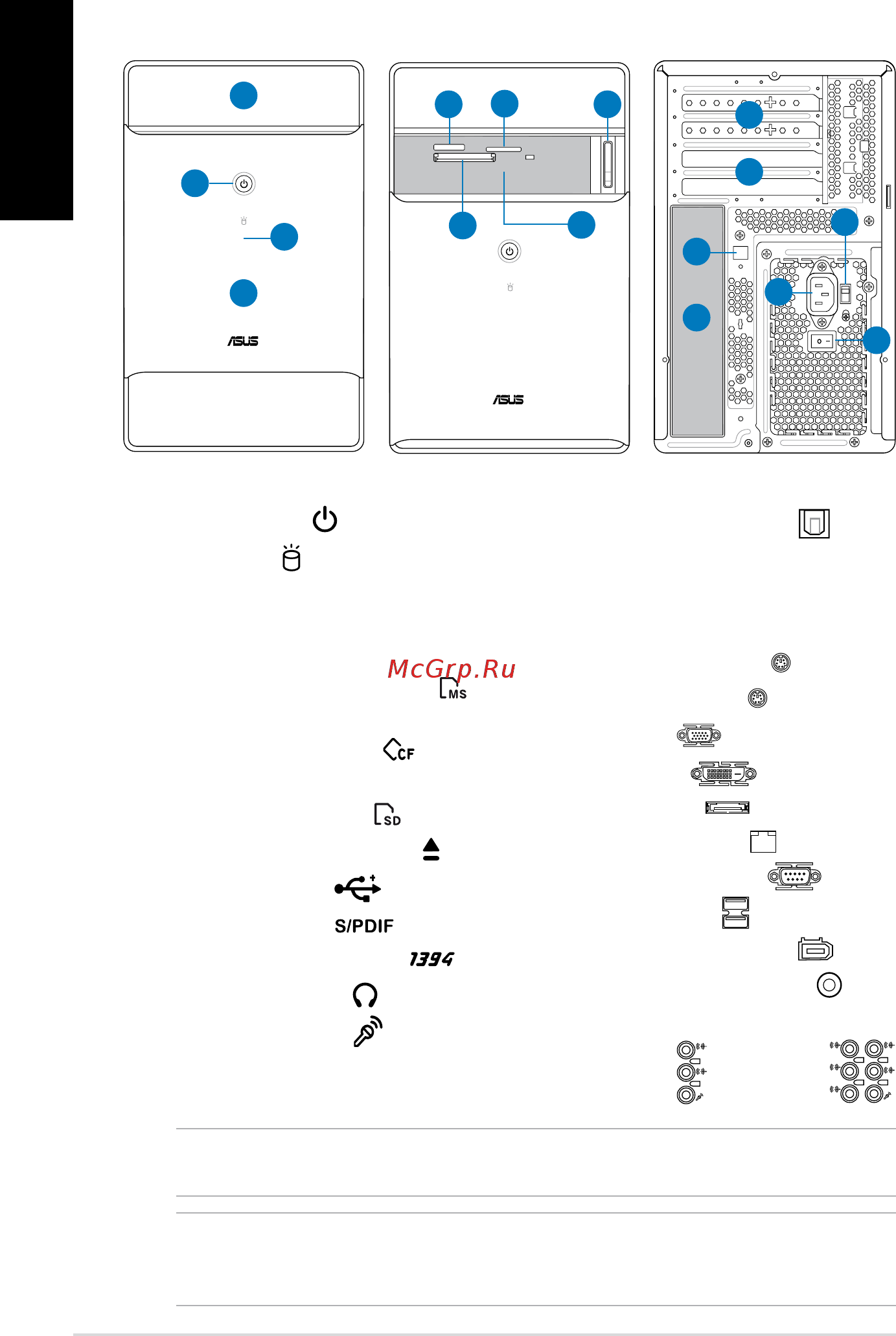

Front (Close)
