Search Option

Search Option:

Select a Search Option from the pull-down list and click the Search

button to find your desired entry in Private VLAN.

 All: Enter either the Primary VLAN ID or Secondary VLAN ID of

the desired Private VLAN.

 Primary VLAN ID:

Enter the Primary VLAN ID number of the

desired Private VLAN.

 Secondary VLAN ID:

Enter the Secondary VLAN ID number of

the desired Private VLAN.



Private VLAN Table

Select:

Select the entry to delete. It is multi-optional.

Primary VLAN:

Displays the Primary VLAN ID number of the Private VLAN.

Secondary VLAN:

Displays the Secondary VLAN ID number of the Private VLAN.

Port:

Displays the port list of the Private VLAN.

7.9.2 Port Config

The Private VLAN provides two Port Types for the ports, Promiscuous and Host. Usually, the

Promiscuous port is used to connect to uplink devices while the Host port is used to connect to the

he terminal hosts, such as PC and Server.

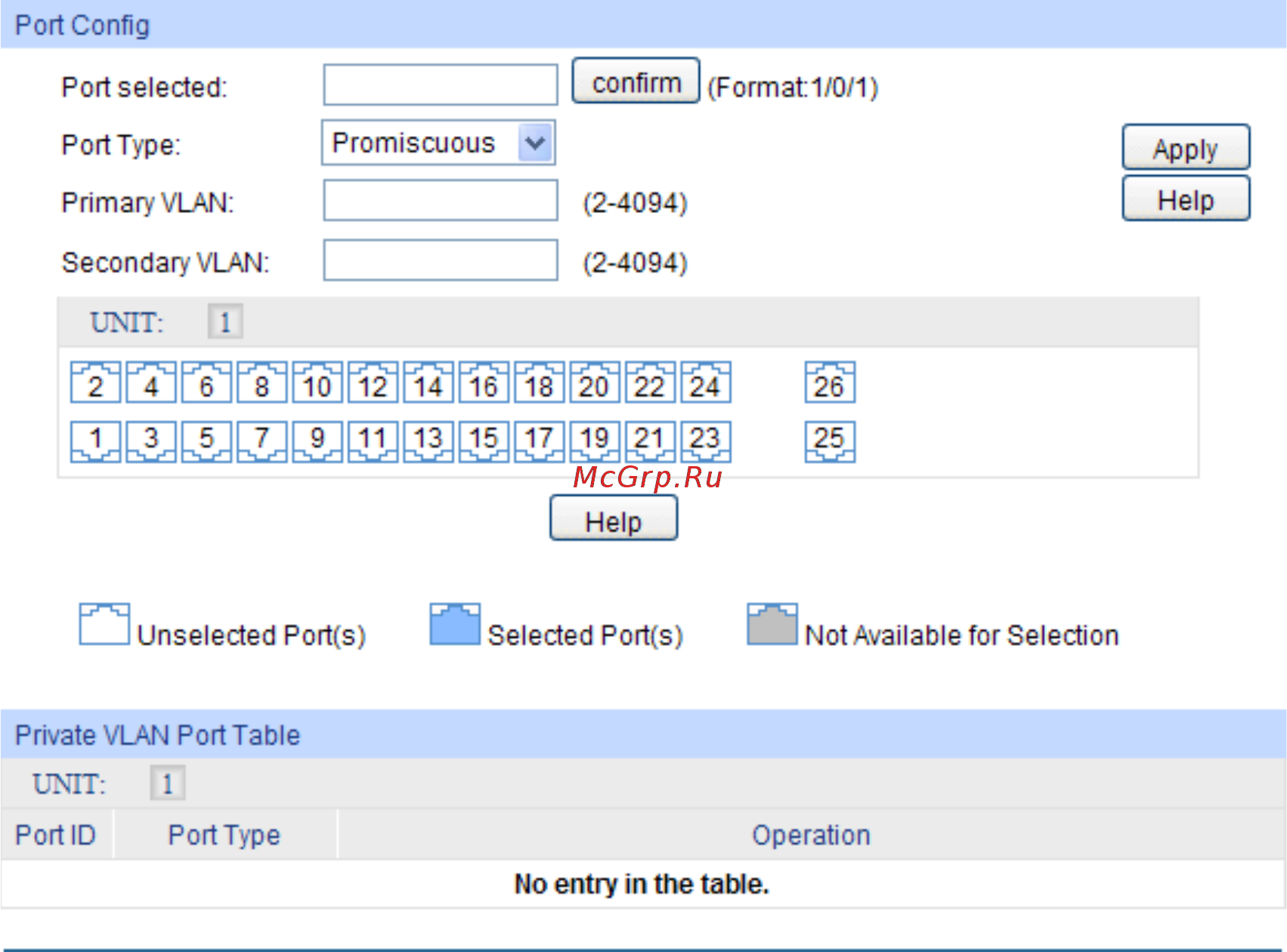

Choose the menu VLAN→Private VLAN→Port Config to load the following page.

Figure 7-18 Create and View Protocol Template
