Tp-Link T2700G-28TQ [229/420] Advanced config

217

Running Priority:

Displays the running priority associated with the VRRP. It

ranges from 1 to 255.

Advertise Timer: Displays the advertise timer associated with the VRRP.

ranges from 1 to 255.

Preempt Delay

Timer:

Displays the preempt delay timer associated with the VRRP. It

ranges from 0 to 255.

Preempt Mode: Displays the preempt mode associated with the VRRP.

Authentication

Type:

Displays the authentication type associated with the VRRP.

Key:

Displays the key associated with authentication type. If the

authentication type is 'normal', it will display '--'.

Virtual IP: Displays all the virtual IP associated with the VRRP.

Virtual MAC: Displays the Virtual MAC address associated with the VRRP.



Track Information

Tracked Interface: Displays the tracked interface ID.

Reduced Priority: Displays the reduced

priority when the tracked interface is

'down'.

Back: Click the button to go back to the VRRP basic config page.

Refresh: Click the button to refresh this page.

10.10.2 Advanced Config

You can modify most of features of the VRRP on this page, including the description, priority,

preempt mode, advertisement... But you cannot add or delete a VRRP.

Choose the menu Routing→VRRP→Advanced Config to load the following page.

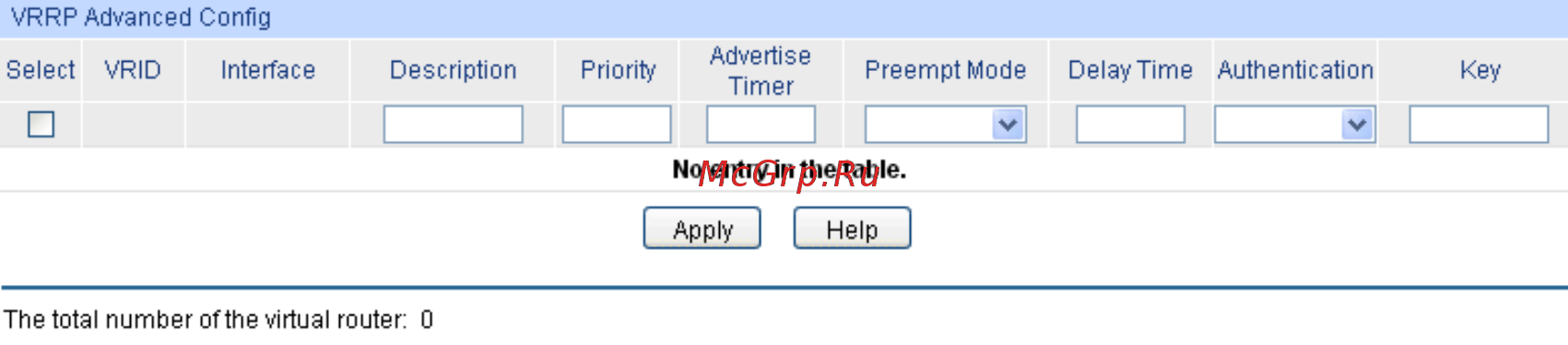

Figure10-61 VRRP Advanced Config

The following entries are displayed on this screen:



VRRP Advanced Config

Select: Select one or more items.

VRID: Displays the VRID associated with the VRRP.

Interface: Displays the Interface ID associated with the VRRP.
